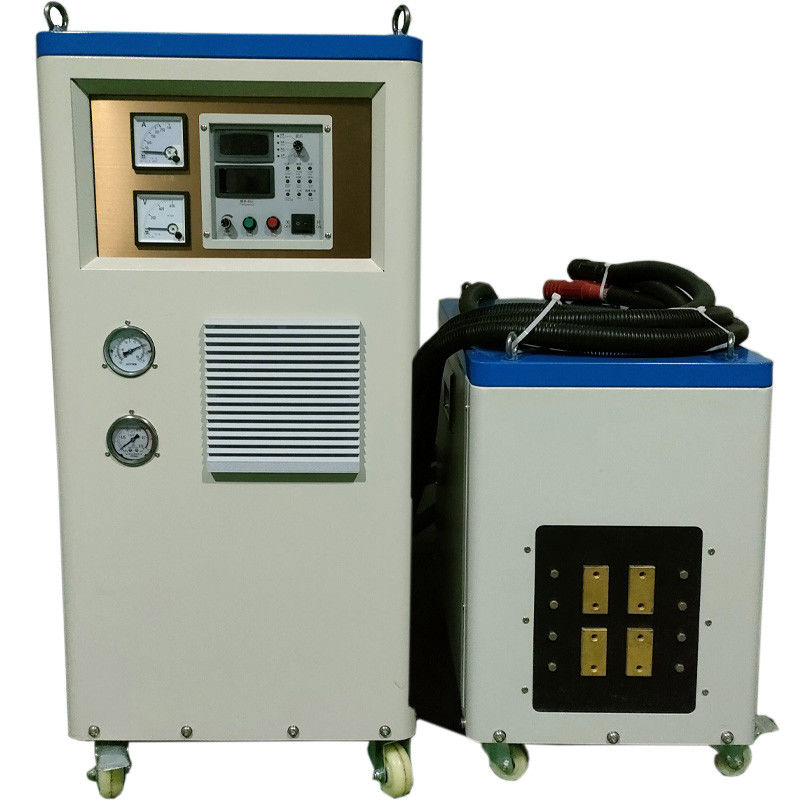

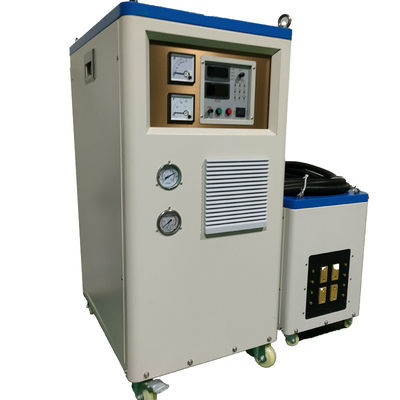

100KW 20-50Khz Super Audio Induction Heating Machine for All Metal Heating
Main characteristics:
1. Infineon IGBT and Inverting technologies of third generation been used; Higher reliability and lower maintenance cost.
2.100% Duty cycle, continuous working is allowed at maximum power output.
3. Simple to install, Installation can be done by unprofessional person very easily;
4. Double digital Screen display, better to know the working performance of the machine!
5. Diode Rectification Technology Make sure high power factory,High Efficiency Up to 98%.
6 Energy Saving Up to 20-30% compare with SCR machine.
7 Soft Switch Technology And prefect Protection system( Over Heat, Over Current, Under Voltage, Over Voltage, Phase Fail, Lack Water) enhance Good Reliability.
8. Display of heating power, Power%, Current, Voltage, oscillating frequency.
9. Light weight, small Size
10.Transformer Ratios can connect different Induction coils,Work different workpiece.
11.Large working application, annealing, quenching/Hardening, Hot Forging, Heating Treatment, Soldering/Welding/Brazing and melting.
2 Parameter
| Type |
SF-100KW |
| Work power |
380V*3Phase 50-60HZ |
| The range of operating voltage |
380-460VAC |
| Output power |
100 KW |
| Input current |
150A |
| Fluctuating frequency |
20-50KHZ |
| The flow rate of cooling water |
>0.1Mpa 14L/Min |
| Water temperature protection point |
40℃ |
| Duty cycle |
100% (40degree room temperature) |
| Weight |
Main parts:130KGS
Transformer Parts:120kg
|
| Size |
Main Part: 830*500x1100 mm
Transformer :640x360x590 mm
|
Application:
1. Heating (hot forging, hot fitting and smelting): Steel bar, Steel plate, Copper and Brass Bar, Cooper Plate and so on
2. Heat Treatment (surface quench): Gear, Pipe, Shaft, Rolling
3. Welding (braze welding, silver soldering and brazing):
A.Welding of various hardware cutting tools, such as diamond tool, abrasive tool, drilling tool, alloy saw blade, hard alloy cutter, milling cutter, reamer, planning tool and solid center bit.
B. Welding of various hardware mechanical gadget: Silver soldering and brazing of metals of the same variety or different varieties, such as hardware toilet and kitchen products, refrigerating copper fitting, lamp decoration fitting, precision mold fitting, hardware handle, eggbeater, alloy steel and steel, steel and copper as well as copper and copper.
4. Annealing (tempering and modulation):
Advantage
1). Using the third generation Infineon IGBT.
2). DELIXI Isolation Air Switch
3). All screws in our machine are stainless steel.
4) Phase Bridge (Germany IXYS)
5) Water Temperature and water Pressure meter in the machine,double protection for the machine.
After-sale service:
1. Warranty time: Within 18 months from the date of delivering, 12months from date of receiving.
2. Within warranty all parts are free for customer, any fault caused by non artificial reason, any quality problems such as design,
manufacture, or procedure occurs, We shall provide replacement parts after detecting the faults.
3. If any big quality problems occurs out of the guarantee period, we will send maintenance
technician to provide visiting service after checking with the customer and charge for a favorable price.
5. We will provide a lifetime cost price to the buyer with the materials and spare parts used in system operation, equipment
maintenance.
6. The above mentioned are only basic aftersale service requirements,we will make more promises related to quality assurance and operation guarantee
