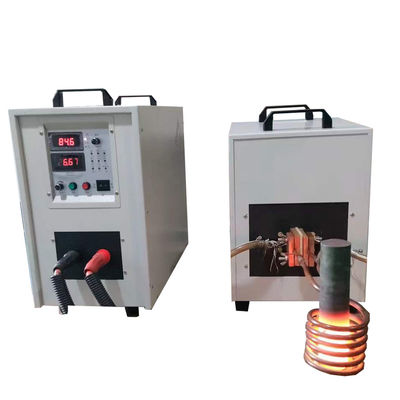

40KW Super Audio Induction Welding Machine For Industrial Use

40KW Super Audio Induction Welding Machine For Industrial Use
40KW Super Audio Induction Welding Machine For Industrial Use 40KW Super Audio Induction Welding Machine For Industrial Use 40KW Super Audio Induction Welding Machine For Industrial Use

Large Image :  40KW Super Audio Induction Welding Machine For Industrial Use

Product Details:
Place of Origin: CHINA
Brand Name: ORD
Certification: CE,SGS,ISO
Model Number: SF-40KW
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Price: USD2800-3500
Packaging Details: Exported Wooden Box
Delivery Time: 3-4 Work days
Supply Ability: 200SET/Month Goods in Stock

40KW Super Audio Induction Welding Machine For Industrial Use

Description
Name: Induction Heating Equipment Type: SF-40KW
Max Output Power: 40KW Work Voltage: 360-480V*3Phase 50-60hz
Working Frequency: 20-50KHZ Input Current: 60A
DC Current: 80A Duty Cycle: 100% (40 Degree Room Temperature)
Control Way: Infineon IGBT Power Factor: 0.98
Application: Heating, Welding,Soldering, Melting, Annealing, Tempering, Hot Forging
Highlight:

40KW Super Audio Induction Welding Machine

,

SGS Super Audio Induction Welding Machine

,

40KW Induction Heater For Industrial Use

SF-40KW Super Audio Induction Heating Machine for All Metal Heating



Main characteristics:

1. Infineon IGBT and Inverting technologies of third generation been used; Higher reliability and lower maintenance cost.
2.100% Duty cycle, continuous working is allowed at maximum power output.
3. Simple to install, Installation can be done by unprofessional person very easily;

4. Double digital Screen display, better to know the working performance of the machine!

5. Diode Rectification Technology Make sure high power factory,High Efficiency Up to 98%.

6 Energy Saving Up to 20-30% compare with SCR machine.

7 Soft Switch Technology And prefect Protection system( Over Heat, Over Current, Under Voltage, Over Voltage, Phase Fail, Lack Water) enhance Good Reliability.
8. Display of heating power, Power%, Current, Voltage, oscillating frequency.
9. Light weight, small Size



2 Parameter

Type SF-40KW
Work power 380V/415V/ 440V/ 480V*3Phase 50-60HZ
The range of operating voltage 380-460VAC
Output power 40KW
Input current 60A
Fluctuating frequency 20-50KHZ
The flow rate of cooling water >0.1Mpa 7L/Min
Water temperature protection point 40℃
Duty cycle 100% (40degree room temperature)
Weight

Main parts:53KGS

Transformer Parts:38KGS

Size

Main Parts:675*325*655mm
Transformer: 530*300*475mm



Working Principle: (What is induction heating? How does induction heating work?)
During induction heating eddy currents are induced in an electrically conductive metallic workpiece by an alternating electromagnetic field. These are converted into heat by magnetic loss. - Or, simply put, the metal heats up due to the current flow produced in the workpiece. This enables induction heating to introduce heat directly into the workpiece rather than through connectivity from an external source such as heating with a flame or in a furnace. This process thus achieves a very high degree of efficiency. Additionally, heating can also be accomplished passing through non-conductive materials. The surrounding area is only heated indirectly.



Application:

1. Heating (hot forging, hot fitting and smelting): Steel bar, Steel plate, Copper and Brass Bar, Cooper Plate and so on
2. Heat Treatment (surface quench): Gear, Pipe, Shaft, Rolling

3. Welding (braze welding, silver soldering and brazing):

A.Welding of various hardware cutting tools, such as diamond tool, abrasive tool, drilling tool, alloy saw blade, hard alloy cutter, milling cutter, reamer, planning tool and solid center bit.

B. Welding of various hardware mechanical gadget: Silver soldering and brazing of metals of the same variety or different varieties, such as hardware toilet and kitchen products, refrigerating copper fitting, lamp decoration fitting, precision mold fitting, hardware handle, eggbeater, alloy steel and steel, steel and copper as well as copper and copper.
4. Annealing (tempering and modulation):



Advantage

1. Using the third generation Infineon IGBT.

2. DELIXI Isolation Air Switch

3. All screws in our machine are stainless steel.

4. Phase Bridge (Germany IXYS)

5. More than 22 Years Expriences, good quality control and good performance.

6. Options transfromer ratios can choose it, can work different workpiece size.

40KW Super Audio Induction Welding Machine For Industrial Use 040KW Super Audio Induction Welding Machine For Industrial Use 1
