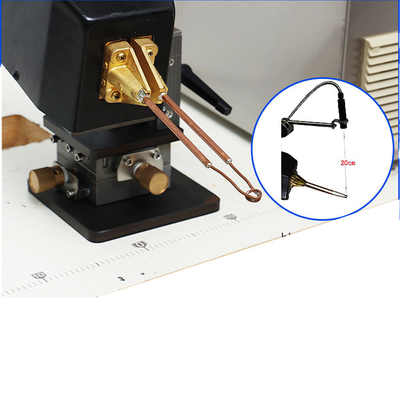

Induction soldering machine for Brass parts to steel plate and litz wire into Aluminium lug

Induction soldering machine for Brass parts to steel plate and litz wire into Aluminium lug

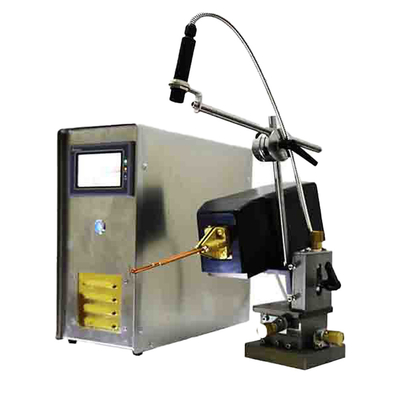

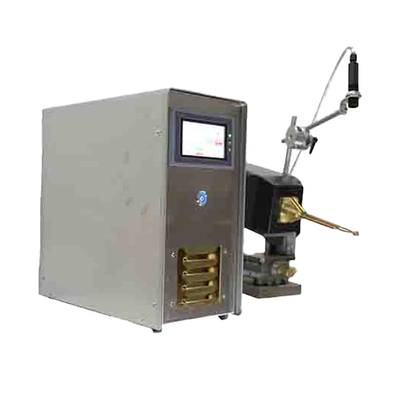

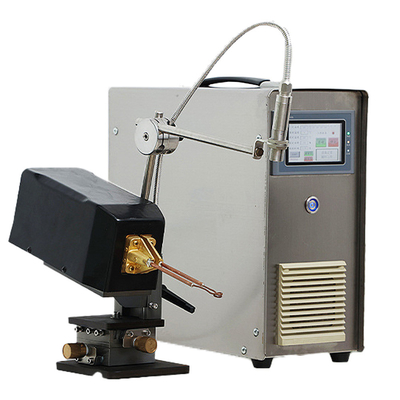

Induction Soldering machine :

Induction soldering is a process in which two or more metal items are joined together by melting and flowing a filler metal (solder) into the joint interface.

The filler metal (solder) has a lower melting point than the workpieces being assembled. Induction soldering heats the workpieces in an RF (Radio Frequency) filed without making any physical contact with the parts.

Unlike welding, induction soldering does not involve melting of the joints. Induction Brazing, on the other hand, significantly differs from soldering because it is performed at higher temperatures.

Induction Soldering often results in a bit weaker joint compared to a brazed one but this is a desirable result for many applications in various industries, especially when you work with sensitive electronics or small components. Induction heating is a perfect solution as it allows you to control the process of soldering and avoid thermal stress.

The Advantages of induction soldering machine :

1• Voltage, Power, Current
2. Limit Settings
• Current, DC Volts, Output Volts, Power, Frequency
3. Cooling System
• Compact air-cooled power supply design with automatic fan control
4. Control Modes
• Operator controls: between Automatic, Remote, or Local
5.
• Multiple user programs and programmable parameters
6. Frequency Response
• Full power delivery within specified frequency range (see Specifications tables)
7. Load Adaptation
• Variable ratio output isolation transformer for load matching across wide-range loads and coils
8. Precision Power Control
• Power adjustment: 1% to 100% in 1% increments
9. Digital Interface
• Digital I/O Interface board: Remote Start/Stop function
10. External Control
• External power control input: 0-10V or 4-20mA analog signals
11. Thermal Management
• Temperature monitoring & control
• Temperature regulator (supports standard IR sensor input)
12. Communication
• Serial Interface: RS-485
13. Diagnostics
• Data logging and remote diagnostics capability
14. Automation Integration
• Automation Upgrade Kit: Enables remote power-up when integrated into automated systems

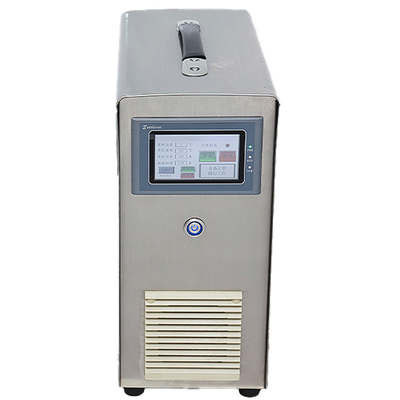

The technical Parameters of UHF8KW

​

Name	Induction Soldering machine
Rated Input Voltage	Single 220V-230V
Rated Input Current	28A
Max Input power8	8KW
Frequency	500khz-1MHZ
Work Power	"Continuously Adjustable Output Power 0% - 100%"
Cooling system	Water Cooling system
Contorl model	foot switch/ temperature control device/ start-stop
Applications	Soldering, Brazing, Welding, Forging. Annealing, Hardening, Heat treatment ....
Machine size	400mm*180mm*400mm

​APPLICATIONS:
