Specialized production IGBT Induction Bolt heating machine on turbines (hydraulic, steam, gas) and compressors of all sizes.

Specialized production IGBT Induction Bolt heating machine on turbines (hydraulic, steam, gas) and compressors of all sizes.(Disassembly /assembly bolts):

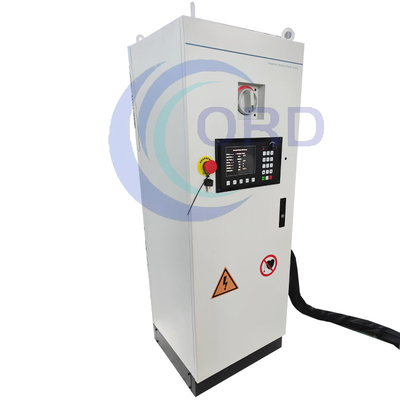

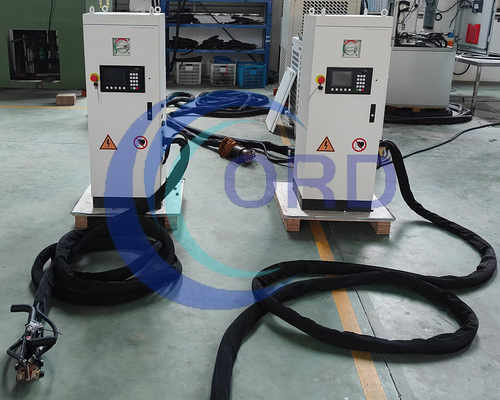

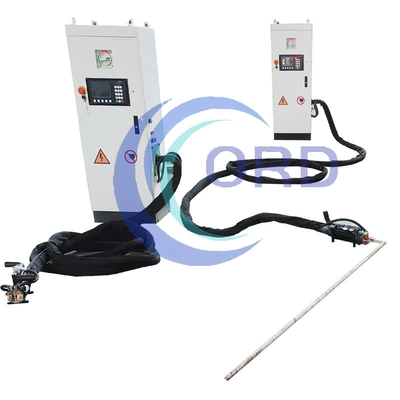

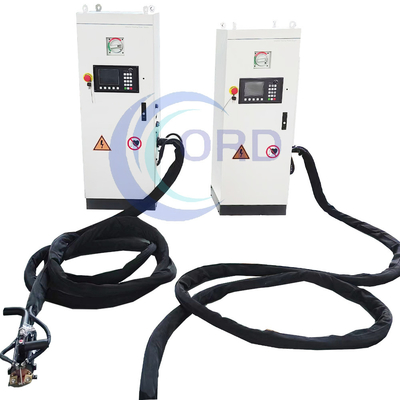

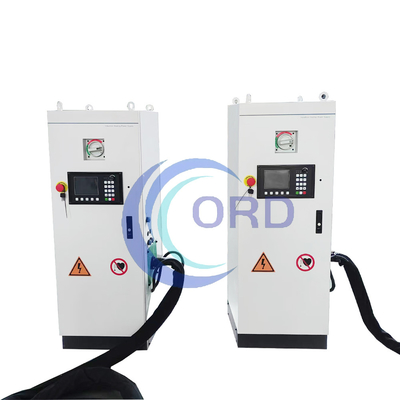

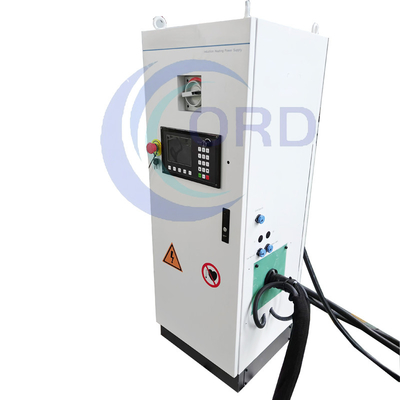

INDUCTION BOLT HEATING MACHINE :

Induction bolt heating involves heating drilled stud bolts to obtain elongation. Thus, it only takes a few minutes to heat them evenly and safely. This process is 2 to 3 times faster than conventional heating means such as heating rods.

The advantages of our induction bolt heating machine

1.Our factory specializes in design and customization of bolt heating equipment
2.Acoording to client;s bolt/ workpipes to design inductor
3.24/7 service on-site
4.Easy to set up and use: all you need is a 380-480 volts
5.Light & compact design.
6.Cooling system usually we are advies industiral chiller
7.Timer integrated to control heating time
8.User-friendly, easy to operate with automatic or manual power regulation
9.3-80 meters length of coaxial cable to access both sides of the turbine
10.No exceeding of the Curie point (no material transformation)
11.No burning risk as inductor remains cold
12.All sizes inductors manufacturing, in 48 hours on demand
13.Only heat the center of the bolt, for accurate tightening and to minimize heat dispersion
14.Quick heating time

THE TECHNICAL PARAMETER OF INDUCTION BOLT HEATING MACHINE :

​

Type	DSP-80KW
Rated Output Power	80KW
Rated Output Frequency	10-40KHZ
Can expand frquency	1-100khz
Overload Heating time	45%/10min
Power Adjust Arrange	1.5-100%
Coaxial Flexible cable length	3-80M
Input Voltage	360-440v 50-60hz
Max power	80kw
Protection Level	IP54
Environment Temperature	+5c--+50C
Cooling water flow	21L/MIN
Cooling water Pressure	4-8Bar
Weight	About 120kg

​Package of induction bolt heating machine
