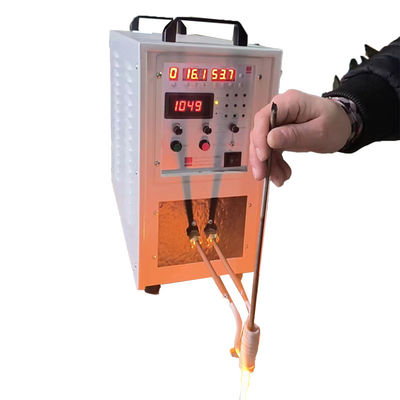

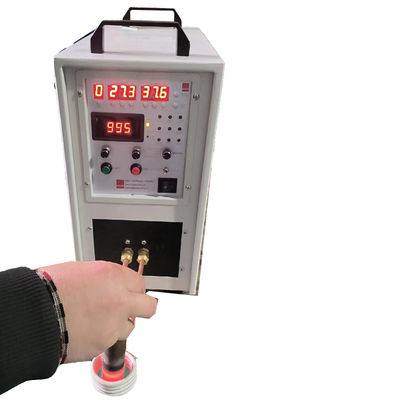

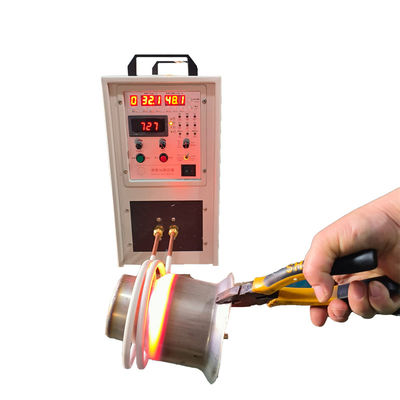

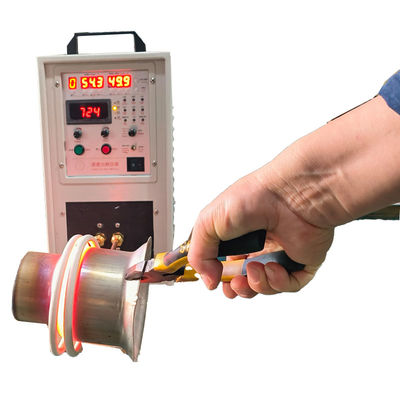

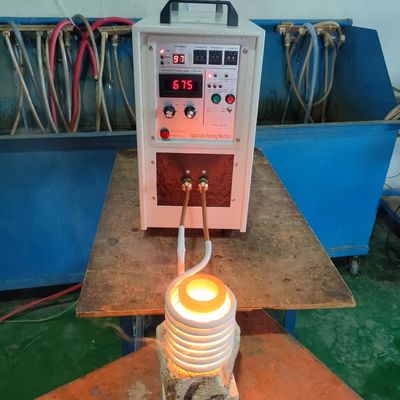

15KW High Frequency Induction Heater with 30-100kHz Frequency and 2kg-5kg Capacity for Melting and Forging

Large Image : 15KW High Frequency Induction Heater with 30-100kHz Frequency and 2kg-5kg Capacity for Melting and Forging

Product Details:

Certification:	CE, ISO

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	600

Contact Now

15KW High Frequency Induction Heater with 30-100kHz Frequency and 2kg-5kg Capacity for Melting and Forging

Description

Model NO.:	HF-15KW	Type:	Induction Heating Machine
Structure:	Vertical Type	Power:	15kw
Frequency:	30-100kHz	Capacity:	2kg-5kg
Input Current:	36A	Work Power:	220V, 230V, 240V 50-60Hz
Operating Voltage:	200-260VAC	Weight:	36kg
Size:	640280550mm	Cooling Water Pressure:	>0.12MPa
Work Way:	Manual, Auto	Duty Cycle:	100%
Water Temperature Protection:	40°C
Highlight:	30-100kHz High Frequency Induction Heater , 220V-240V Induction Heating Machine , 2kg-5kg Capacity IGBT Induction Heater

Highly Effective Auto Lift 1kg /2kg Induction Gold Melting Equipment (HF-15KW)

China factory supply IGBT small induction heating machine for smelting platinum with HF-15KW

Key Advantages

More than 22 years experience, stable and good performance
CE certificated
Copperated with CHOW TAI FOOKS, Matsushita, Foxconn, Media, Gree AND ZHIGAO Air conditioner
Suitable for a large range of applications: heating, quenching, forging, melting, solding and more

Main Characteristics

Siemens IGBT module and Inverting technologies of third generation for higher reliability and lower maintenance cost
100% Duty cycle, continuous working allowed at maximum power output
Display of heating power, heating current and oscillating frequency
Simple to install, can be done by unprofessional person very easily
Light weight design
Timer model advantages: Power and operating time can be preset for heating and retain periods to improve repeatability in batch production

Packing Details

Technical Specifications

Type	HF-15AB/15A
Work Power	220V,230V,240V 50-60hz
The range of operating voltage	200-260VAC
Output power	15KW
Input current	36A
Fluctuating frequency	30-100khz
Timing (Heat time,Retain time,Cool time)	1-99S
The flow rate of cooling water	>0.12 Mpa 7.6L/Min
Water temperature protection point	40centidegree
Duty cycle	100% (40degree room temperature)
Weight	Mainparts:35Kg
Size	Main Parts:640280550mm

Pre-sale Service

Recommend the most suitable machine according to customer requirements
Inquiry and consulting support
Sample testing support
Factory viewing available

In-sale Service

Strict manufacturing according to relevant technical standards
Run test performed according to equipment test run regulations
Strict quality check before delivery
On-time delivery guaranteed

After-sale Service

Warranty time: Within 18 months from delivery date or 12 months from receiving date
Within warranty, all parts are free for any non-artificial faults or quality problems
For major quality problems after warranty, we provide visiting service at favorable price
Lifetime cost price for materials and spare parts used in system operation
Additional quality assurance and operation guarantees available
