Hf-15kw High Frequency Induction Heating Machine/ Brazing Machine for Brazing, Heat, Annealing, Quenching

Large Image : Hf-15kw High Frequency Induction Heating Machine/ Brazing Machine for Brazing, Heat, Annealing, Quenching

Product Details:

Certification:	CE, ISO

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	500

Contact Now

Hf-15kw High Frequency Induction Heating Machine/ Brazing Machine for Brazing, Heat, Annealing, Quenching

Description

Model NO.:	HF-15KW	Type:	Induction Heating Machine
Structure:	Vertical Type	Frequency:	30-100kHz
Power:	15kw	Input Voltage:	220V, 380V, 400V,415V, 440V, 480V 50-60Hz
Material:	Steel, Copper, Brass, Silver, Gold, Alum All Metal	Weight:	38kgs
Size:	620230630mm	Input Current:	13A Or 36A
Heating Way:	Auto/Manual	Cooling Way:	Water Cooled
Fluctuating Current:	200-780A	Water Flow Rate:	0.08-0.16 Mpa 9L/Min
Water Temperature Protection:	40ºC
Highlight:	15kw induction brazing machine , high frequency annealing heater , induction quenching machine 15kw

HF-15KW High Frequency Induction Heating Machine/Brazing Machine

Professional induction heating equipment designed for brazing, heat treatment, annealing, and quenching applications.

Main Characteristics

Infineon IGBT module and third-generation inverting technologies for higher reliability and lower maintenance cost
100% duty cycle allows continuous operation at maximum power output

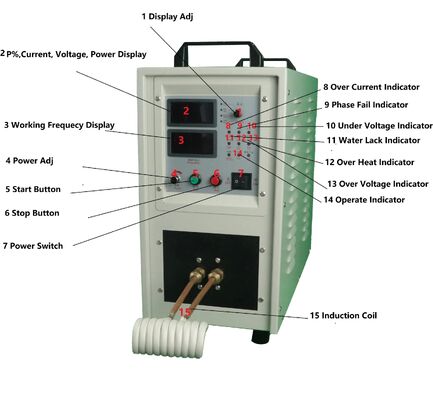

Displays heating power, heating current, and oscillating frequency
Simple installation process suitable for non-professional personnel
Lightweight design for easy handling
Double digital screen display for monitoring machine performance

Technical Specifications

Type	HF-15KW(A)
Work Power	220V Single Phase/50-60Hz OR 380V*3Phase
Operating Voltage Range	200-240V / 340V-430V
Output Power	15KW
Input Current	220V Single Phase: 36A 380V*3Phase: 13A
Fluctuating Frequency	30-100KHZ
Fluctuating Current	200-780A
Timing	24 hours continuous operation
Cooling Water Flow Rate	0.08-0.16 Mpa 9L/Min
Water Temperature Protection	40ºC
Duty Cycle	100% (40°C room temperature)
Weight	38Kg
Dimensions	600230480MM
