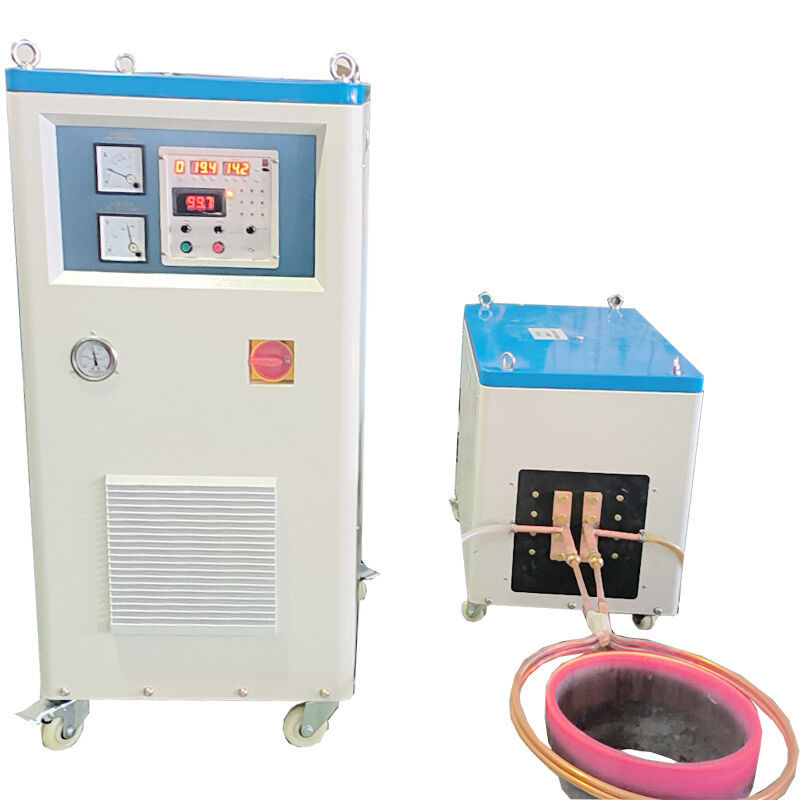

Name: 120KW IGBT Induction Heating Machine with Water Cooling System and Variable Transformer Ratios
Brand: OURUIDA CO.,LTD
SKU: SF-120KW
Price: 4000 USD
Availability: InStock

Brand Name:	OURUIDA
Model Number:	SF-120KW
MOQ:	1
Price:	4000
Packaging Details:	PLY WOODEN BOX PACKAGE
Payment Terms:	L/C,D/A,D/P,T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE/ ROHS/ SGS

Model NO.:

SF-120KW

Work Voltage:

380V, 400V, 415V, 440V, 480V

The Range Of Operating Voltage:

340-430V AC

Input Current:

180A

Timing (Heat Time,Retain Time,Cool Time):

1-99s

Water Temperature Protection Point:

40centidegree

Size:

Main Parts:800*600*800mm Transformer: 650*450*600m

Weight:

Mainparts:150kg Transformer:105kg

Operation:

Automatic And Manial

Variable Transfromer:

Different Transformer Ratios

Cooling Mothed:

Water Cooling System

Transport Package:

Plywood Package

Specification:

CE, SGS, ISO

Trademark:

ORD

Origin:

China

HS Code:

8514400090

Production Capacity:

10, 000sets

Output Power:

120KW

Fluctuating Frequency:

20-50khz

Cooling Water Flow:

0.15 Mpa 22L/Min

Duty Cycle:

100% (40degree Room Temperature)

Supply Ability:

1000SETS/ MONTH

Highlight:

IGBT induction heating machine with CE certification

industrial induction heating machine with RoHS

ISO certified induction heating machine

Product Description

IGBT Induction Heating Machine with CE, RoHS, ISO and So on Certificates

China Factory price supply IGBT Induction heating machine with CE, ROHS, ISO and so on certificates.

Applications

Hot forming equipment (hot forging, dithermic forming, hot rolling, hot upsetting)
Welding (brazing, hot fit, hot fusion)
Heat treatment (quenching, annealing, tempering, quenching and tempering)
Smelting (gold, silver, copper, iron, stainless steel and other metals)

Key Advantages

More than 21 years experience, stable and good performance
CE certificated
Cooperated with CHOW TAI FOOKS, Matsushita, Foxconn, Media, Gree and ZHIGAO Air conditioner
Suitable for a large range: heating, quenching, forging, melting, soldering and more
Variable transformer ratios: 8:1,10:1,12:1,14:1,16:1, 8:2,10:2,12:2,14:2,16:2 can match different length induction coil, suitable for large range applications

Main Characteristics

IGBT module and Inverting technologies of third generation been used; Higher reliability and lower maintenance cost
100% Duty cycle, continuous working is allowed at maximum power output
Display of heating power and heating current and oscillating frequency
Simple to install, Installation can be done by unprofessional person very easily
Light weight
Advantages of the model with timer: The power and the operating time of the heating period and the retain period can be preset respectively, to realize a simple heating curve, this model is suggested to use for batch production to improve the repeatability

Technical Specifications - Model SF-120AB

Parameter	Specification
Work Power	3*380v/415v/440v/480v 50-60hz
The range of operating voltage	340-430V AC
Output power	120KW
Input current	180A
Fluctuating frequency	20-50khz
Timing (Heat time, Retain time, Cool time)	1-99S
The flow rate of cooling water	0.15 Mpa 22L/Min
Water temperature protection point	40°C
Duty cycle	100% (40°C room temperature)
Weight	Main parts: 150Kg \| Transformer: 105kg
Size	Main Parts: 800600800MM \| Transformer: 650450600MM
