Product Details:
|
| Model: | HF-40AB | Name: | High Frequency Induction Heater |
|---|---|---|---|
| Work Voltage: | 380V*3Phase 50hz, 415V*3Phase 50HZ, 480V*3Phase 60hz | Max Output Power: | 40KW |
| Oscillation Frequency: | 30-80KHZ | Usage: | Heating, Welding,Soldering, Melting, Annealing, Tempering, Hot Forging |
| Input Current: | 40A | Heating/Retain/Cooling Time: | 1-99S |
| Duty Cycle: | 100% (40 Degree Room Temperature) | Control Way: | Infineon IGBT |
| Protection System: | Over Current, Over Voltage, Phase Fail, Under Voltage, Over Heat, Water Lack | ||
| Highlight: | 40KW High Frequency Induction Heat Treatment Machine,SGS High Frequency Induction Heat Treatment Machine,40KW SGS Induction Soldering Machine |
||

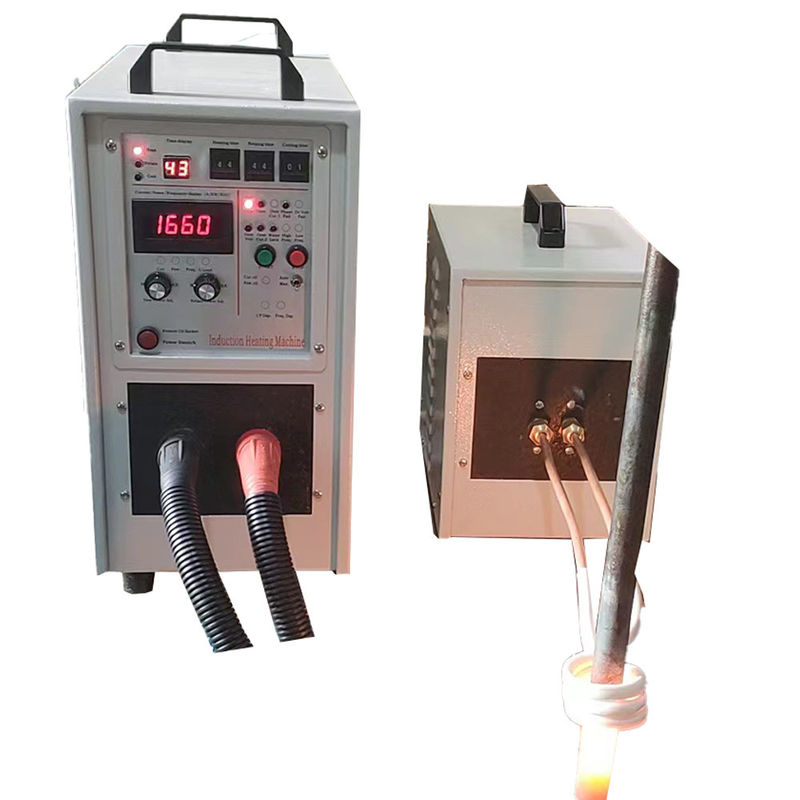

HF-40KW High Frequency Induction Heating Machine For Heat Treatment, Soldering
Main characteristics:
1. Non-contact Heating is the biggest Characteristic of the induction heating.
2. The temperature is easy to control and realize automatic control. It can ensure the consistency of product quality and aviod hidden dangers caused by human.
3. The machine has isolation transformer, output Voltage is safty voltage lower than 36V. Every safe to operate our machine.
4. Infineon IGBT module and Inverting technologies of third generation been used; Higher reliability and lower maintenance cost.
5. 100% Duty cycle, continuous working is allowed at maximum power output.
6. Energy Saving Up to 20-30% compare with SCR machine.
7. Soft Switch Technology And prefect Protection system ( Over Heat, Over Current, Under Voltage, Over Voltage, Phase Fail, Lack Water) enhance Good Reliability.
Data Sheet:
| Type | HF-40AB | ||
| Work power | 3×380V(415V,440V,480V)50-60HZ | ||
| The range of operating voltage |
340V-430V(370-480)V AC
|
||
| Output Fluctuating power | 40KW | ||
| Fluctuating frequency | 30-80KHZ | ||
| Max Input Current | 40A | ||
|
Timing (Heat time, Retain time , Cool time) |
1-99S | ||
| The flow rate of cooling water | >0.1Mpa 15L/Min | ||
| Water temperature protection point | 50C | ||
| Duty cycle | 100%(40degree room temperature) | ||
|
Weight And Size |
Net |
515*230*480MM 25KGS 360*205*350MM 21KGS
|
|
| With Package |
620*290*630MM 35KGS 400*260*440MM 26KGS |
||
|
Applications: Heat treatment Quenching Forging Melting Soldering and brazing Welding |
|||
Application:
1. Heat Treatment All Kinds of the Metal, for example, shaft, gear, pipe and so on!
2. Soldering copper and copper fittings, Soldering Copper with Brass plate, Soldering Copper with S.S. Soldering Alum with Alum.
3. Annealing all kinds of the metal, S.S/ Copper / Alum pipe and Plate,Strip Online Annealing
4. Hot Forging for Copper and brass Fittings, Hot Forging for Steel Bar and steel Plate. Hot Forging before Stamp.
5. Melt Gold, Silver, Platium, Stainless Steel, Steel, Iron, Alum, Zinc and all kinds of metal.
Advantage:
1. Fast Delivering, we have goods in our stock, within 1-2 days can ship the goods to you!
2. 22 Years Experiences for such field, CE cerficated, High quality and stable performance!
3. 20-30% Energy saving compare with SCR machine!
4. Warranty time: Within 18 months from the date of delivering, 12months from date of receiving.
5. 24hours*7days Online Service, can solve the problem in time.
6. Within warranty all parts are free for customer for Quality problem.
