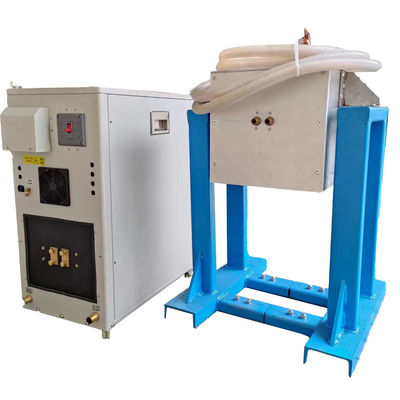

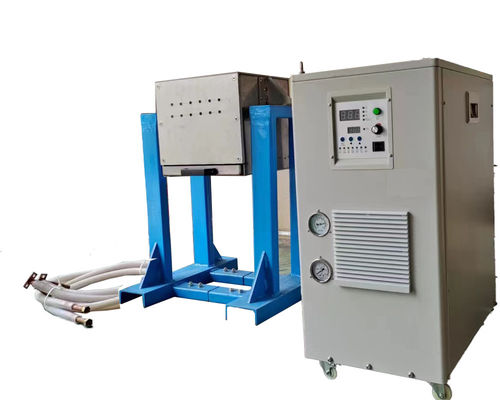

30KGS Medium Frequency Induction Melting Furnace for Steel, Stainless Steel And Iron
Features:
The equipment is a frequency conversion device that converts three-phase power frequency current into a single-phase medium frequency current, through electromagnetic induction metal produced eddy current loss, and achieve the purpose of heating melting. For steel, iron, copper, aluminum, zinc, lead, ferrous and non-ferrous metal and alloy smelting, heat insulation, mainly used in the casting, melting industry.
1. Low Frequency, the melting Furnace is fast and the heating efficiency is high.
2 Gear Motor Tilt System, it is very convenient to pour the liquid.
3. Infineon IGBT type, the system structure is safe and reliable, stable performance and simple operation.
5. Imported integrated circuit and power module are used to realize automatic frequency tracking. It has the characteristics of small size, light weight, high efficiency, energy saving, simple installation, high reliability and not easy to damage.
5. Our power supply has the insolation transformer, melting furnace’s output voltage is low, so very safe to operate our melting furnace.
6. Infineon IGBT Melting Furnace, Can save 20% electricity compare SCR parallel type.
7. Series Resonance IGBT type machine, will not interference other equipment working, No need special input transformer to working this machine.
8. Easy to Using, no need adjust the main board, no need to adjust capacitor's connection.
9. After we debug the machine in our company, then you can use it directly. Very convenient.
Data Sheet:
| Type |
MF-80KW-30KGS IGBT |
| Work power |
360V-480V*3Phase 50-60hz |
| The range of operating voltage |
360V-480V |
| Output power |
80 KW |
| Capacity |
30KGS |
| Input current |
120A |
| Average Melting time |
20-30minutes |
| Fluctuating frequency |
1-20KHZ |
| The flow rate of cooling water |
0.08-0.16 Mpa 28L/Min |
| Water temperature protection point |
50℃ |
| Duty cycle |
100%(40degree room temperature) |
| Weight: |
Main parts: 120KG/ with package 168kg |
| Furnace Weight |
About 200KG /with package 230kg |
| Size: |
620*650*1120mm/
With package:650*680*1250mm
|
| Furnace Size |
700*700*850mm
With package:750*850*1050mm
|
Application
Smelting mainly aims to melt the metal into liquid by using the high temperature, which is mainly applicable to the smelting of iron, steel, copper, aluminum, zinc as well as various noble metals.
After-sale service:
1. Warranty time: Within 18 months from the date of delivering, 12months from date of receiving.
2. Within warranty all parts are free for customer, any fault caused by non-artificial reason, any quality problems such as design, manufacture, or procedure occurs, We shall provide replacement parts after detecting the faults.
3. If any big quality problems occurs out of the guarantee period, we will send maintenance
technician to provide visiting service after checking with the customer and charge for a favorable price.
5. We will provide a lifetime cost price to the buyer with the materials and spare parts used in system operation, equipment maintenance.
6. The above mentioned are only basic aftersale service requirements,we will make more promises related to quality assurance and operation guarantee.
