Product Details:
|
| Name: | Induction Heating Equipment | Type: | HF-15A |
|---|---|---|---|
| Max Output Power: | 15KW | Input Current: | 15A |
| Control Way: | Infineon IGBT | Work Voltage: | 380V*3Phase 50-60Hz |
| Heating,Retain/Cooling Times: | 1-99S Auto Way | Working Frequency: | 30-80KHZ |
| Application: | Heating, Welding,Soldering, Melting, Annealing, Tempering, Hot Forging | ||
| Highlight: | Metal Induction Heater 15kw,IGBT High Frequency Induction Heating Equipment,Induction Heater 15kw IGBT |
||

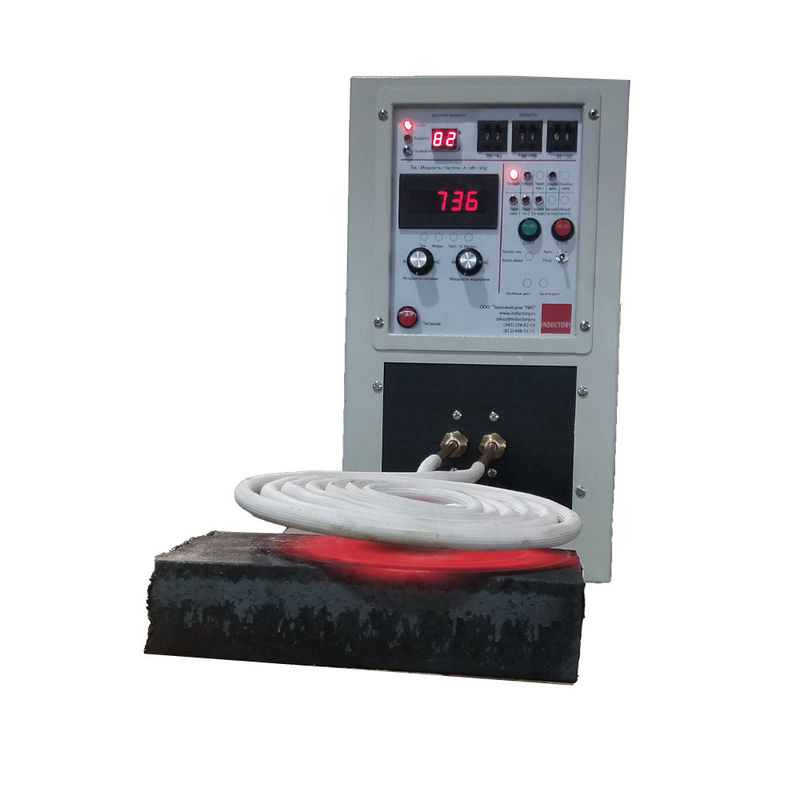

HF-15KW IGBT High Frequency Induction Heating Machine For All Metal Heating
Main characteristics:
1 Infineon IGBT module and Inverting technologies of third generation been used; Higher reliability and lower maintenance cost.
2 Simple to install, Installation can be done by unprofessional person very easily;
3. Advantages of the model with timer: the power and the operating time of the heating period and the retain period can be preset respectively, tdo realize a simple heating curve, this model is suggested to use for batch production to improve the repeatability!
4. 100% Duty cycle, continuous working is allowed at maximum power output.
5.Energy Saving Up to 20-30% compare with SCR machine.
6. Diode Rectification Technology Make sure high power factory—0.98.
7. Soft Switch Technology And prefect Protection system( Over Heat, Over Current, Under Voltage, Over Voltage, Phase Fail, Lack Water) enhance Good Reliability.
2 Data Sheet:
| Type | HF-15KW | ||
| Work power | 380V *Phase 50-60HZ | ||
| The range of operating voltage |
340-430V AC
|
||
| Output Fluctuating power | 15KW | ||
| Fluctuating frequency | 30-80KHZ | ||
| Max Input Current | 13-15A | ||
|
Timing (Heat time, Retain time , Cool time) |
1-99S | ||
| The flow rate of cooling water | >0.1Mpa 9L/Min | ||
| Water temperature protection point | 40℃ | ||
| Duty cycle | 100%(40degree room temperature) | ||
|
Weight And Size |
Net |
600*230*480MM 28KGS |
|
| With Package |
690*350*690MM 38KGS |
||
|
Applications: Heat treatment Quenching Forging Melting Soldering and brazing Welding |
|||
Application:
1. Small rod billet heating, heating temperature can be up to 1500 degree C.
Widely used for wrought iron heating, small bolts and nuts making etc.
2. Welding for carbide tips, metal tube, alloy cutter etc.
3. Melting Gold, Silver, Steel, Iron, Stainless Steel, Alum, copper and so on.
4. Annealing steel, iron, copper wire and pipe,plate and Bar.
5. Tempering all kinds of the metal.
6. Hardening,Quenching All kinds of the shaft, gear, pipe and so on
After-sale service:
1. Warranty time: Within 18 months from the date of delivering, 12months from date of receiving.
2. Within warranty all parts are free for customer, any fault caused by non artificial reason, any quality problems such as design,
manufacture, or procedure occurs, We shall provide replacement parts after detecting the faults.
3. If any big quality problems occurs out of the guarantee period, we will send maintenance
technician to provide visiting service after checking with the customer and charge for a favorable price.
5. We will provide a lifetime cost price to the buyer with the materials and spare parts used in system operation, equipment
maintenance.
6. The above mentioned are only basic aftersale service requirements,we will make more promises related to quality assurance and operation guarantee.
