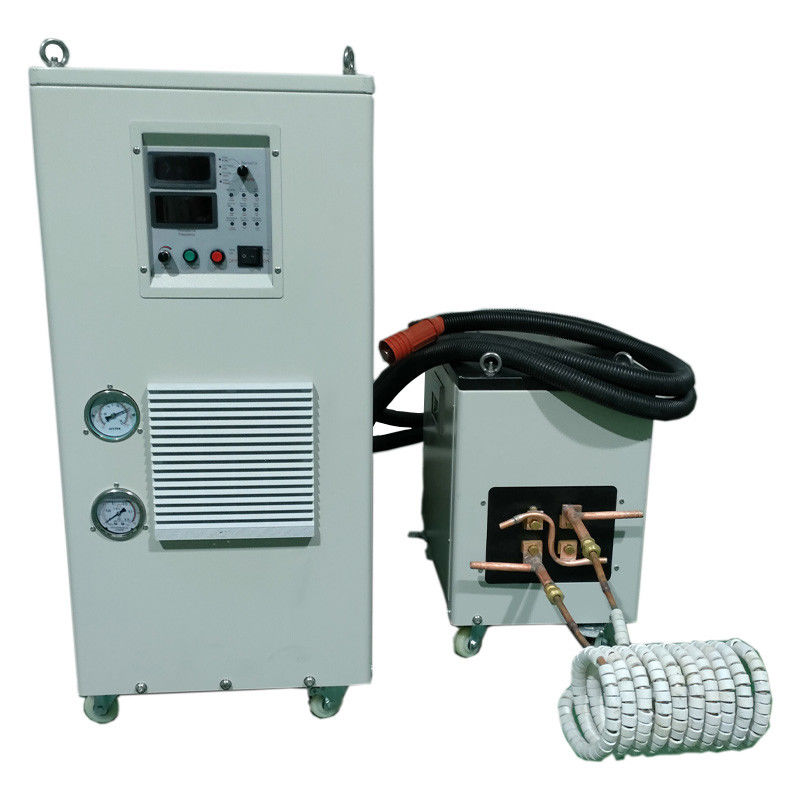

80KW 20-50Khz Super Audio Induction Heating Machine for All Metal Heating
Main characteristics:
1. Infineon IGBT and Inverting technologies of third generation been used; Higher reliability and lower maintenance cost.
2.100% Duty cycle, continuous working is allowed at maximum power output.
3. Simple to install, Installation can be done by unprofessional person very easily;
4. Double digital Screen display, better to know the working performance of the machine!
5. Diode Rectification Technology Make sure high power factory,High Efficiency Up to 98%.
6 Energy Saving Up to 20-30% compare with SCR machine.
7 Soft Switch Technology And prefect Protection system( Over Heat, Over Current, Under Voltage, Over Voltage, Phase Fail, Lack Water) enhance Good Reliability.
8. Display of heating power, Power%, Current, Voltage, oscillating frequency.
9. Light weight, small Size
2 Parameter
| Type |
SF-80KW |
| Work power |
380V/415V/ 440V/ 480V*3Phase 50-60HZ |
| The range of operating voltage |
380-460VAC |
| Output power |
80KW |
| Input current |
120A |
| Fluctuating frequency |
20-50KHZ |
| The flow rate of cooling water |
>0.1Mpa 14L/Min |
| Water temperature protection point |
40℃ |
| Duty cycle |
100% (40degree room temperature) |
| Weight |
Main parts:95KGS
Transformer Parts:78KGS
|
| Size |
Main Parts:760*400*820MM
Transformer: 530*300*520MM
|
Application:
1. Heating (hot forging, hot fitting and smelting): Steel bar, Steel plate, Copper and Brass Bar, Cooper Plate and so on
2. Heat Treatment (surface quench): Gear, Pipe, Shaft, Rolling
3. Welding (braze welding, silver soldering and brazing):
A.Welding of various hardware cutting tools, such as diamond tool, abrasive tool, drilling tool, alloy saw blade, hard alloy cutter, milling cutter, reamer, planning tool and solid center bit.
B. Welding of various hardware mechanical gadget: Silver soldering and brazing of metals of the same variety or different varieties, such as hardware toilet and kitchen products, refrigerating copper fitting, lamp decoration fitting, precision mold fitting, hardware handle, eggbeater, alloy steel and steel, steel and copper as well as copper and copper.
4. Annealing (tempering and modulation):
Advantage
1). Using the third generation Infineon IGBT.
2). DELIXI Isolation Air Switch
3). All screws in our machine are stainless steel.
4) Phase Bridge (Germany IXYS)
5) Water Temperature and water Pressure meter in the machine,double protection for the machine.
