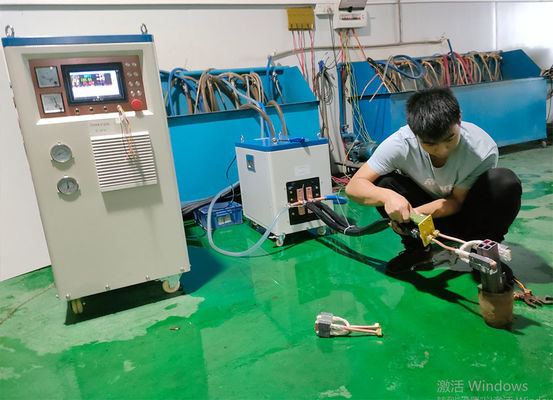

120KW Digital Portable Induction Heating Machine For Brazing Application
Features:
1. This equipment uses the digital signal processing (DSP) digital real-time high-speed signal processor and DDS (Direct Digital Synthesizer) direct digital frequency synthesizer. Infieneon IGBT type.
2. High temperuture: the heating temperature can reach over 1200C.
3. Quick Heating: Reach the target temperature quickly!
4. Various material useing: Applicable to all kinds of metal material, such us: stainless steel, carbon steel, copper, brass, alumimum, Zinc, tin, titanium and so on.
5. Hand-hold coaxial Flexible Cables:Easy to hand hold work, can work the workpiece that can not move it.
6. Quick change coil/inductor:induction coil/indcutor made into different shapes and sizes, and can be easily replace another coil.
7 Small size, light weight, high protection, high precision, protable simple and convenient.
8. Induction Heating Machine have remote control function and adopt digital circuit control, power regulation can be adjusted from 0% to 100% resolution, and digital PID temperature control module can be configured to set the target temperature of workpiece (infrared temperature measurement or thermocouple temperature measurement) automatically.
Paramater:
| Type |
DSP--120KW |
| work power |
380V/415V/440V/480V *3phase 50HZ-60HZ |
| input current |
180A |
| Power |
120KW |
| fluctuating frequency |
10-40Khz |
| the flow rate of cooling water |
0.15-0.3Mpa 21L/MIN |
| Control Way |
IGBT |
| Coaxial Flexible cable length |
2M |
| water temperature protection point |
40C |
| product size |
main 800x600x750 mm |
| transformer :650x450x600 mm |
| net weight |
main : 140 kg |
| transformer :98KG |
Advantage:
1. More than 22 years experience, high quality control, good performance!
2. Infineon IGBT, most saving, can save 20-30% electricity compare with SCR Machine.
3. Easy to operate,High Waterproof.
4. Can bear high temperature, allow the max environment temperature reach to 180C.
5. High safty, the machine has insolation transfromer, it is very safe to operate our machine.
6. Full digital in the machine, all digital circuit board, good quality, all digital display in the front panel, can disply working frequency, power, current, voltage, and all kinds of the protection system signals.
7. Water pressure and water temperatuer meter in the machine, double safty function.
After-sale service:
1. Warranty time: Within 18 months from the date of delivering, 12months from date of receiving.
2. Within warranty all parts are free for customer, any fault caused by non artificial reason, any quality problems such as design,
manufacture, or procedure occurs, We shall provide replacement parts after detecting the faults.
3. If any big quality problems occurs out of the guarantee period, we will send maintenance
technician to provide visiting service after checking with the customer and charge for a favorable price.
5. We will provide a lifetime cost price to the buyer with the materials and spare parts used in system operation, equipment
maintenance.
6. The above mentioned are only basic aftersale service requirements,we will make more promises related to quality assurance and operation guarantee.
