Product Details:
|
| Name: | Induction Heater | Application: | Quenching, Hardening All Workpieces |
|---|---|---|---|
| Type: | UF-100KW | Max Output Power: | 100KW |
| Work Voltage: | 380V*3Phase 50-60hz | Output Current: | 200A |
| Working Frequency.: | 80-200KHZ | Input Current: | 150A |
| Duty Cycle: | 100% (40 Degree Room Temperature) | Cooled Way: | Water Cooled |
| Control Way: | Infineon IGBT | Work Way: | Continuous Working |
| Highlight: | 80Khz Ultrahigh Frequency Induction Heater,100KW induction heat treating equipment,80Khz high frequency induction heater furnace |
||

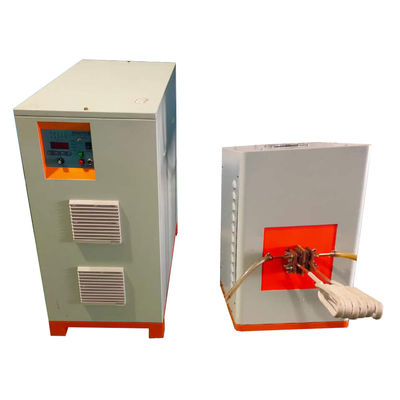

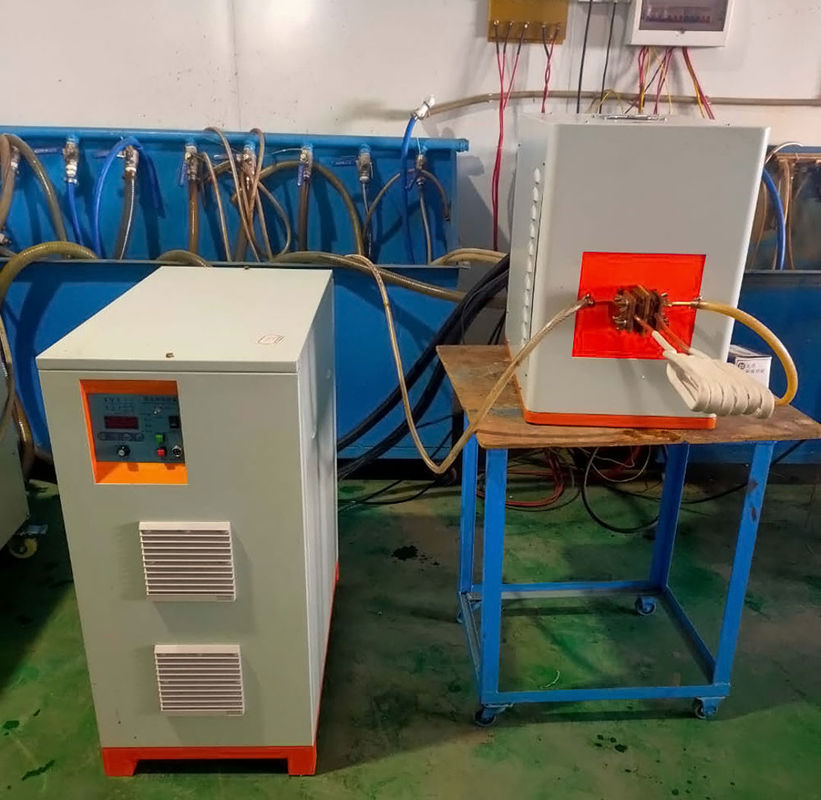

80-200Khz 100KW Ultrahigh Frequency Induction Heating Machine
Main Characteristic:
1. It has such features as high frequency, fast heating speed, high efficiency and easy operation.
2. Infineon IGBT and Inverting technologies of third generation been used; Higher reliability and lower maintenance cost.
3. 100% Duty cycle, continuous working is allowed at maximum power output.
4. Simple to install, Installation can be done by unprofessional person very easily;
5. Display of heating power, Power %, Current, Voltage, oscillating frequency.
6.Transformer Ratios can connect different Induction coils,Work different workpiece.
7.Large working application, annealing, quenching/Hardening, Hot Forging, Heating Treatment, Soldering/Welding/Brazing and melting.
Specfication:
| Type | UF-100KW |
| Work power | 380-480V *3Phase 50-60hz |
| Output power | 100KW |
| Input current | 150A |
| Fluctuating frequency | 80-200KHZ |
| The flow rate of cooling water | 0.1-0.3Mpa >10L/MIN |
| Water temperature protection point | 40℃ |
| Duty cycle | 100%(40degree room temperature) |
| Weight | 65KGS
50KGS |
| Size |
75×40×84 CM |
Advantage:
1. CE certificated, more than 22 years experiences, high quality control and good performances.
2. Infineon IGBT type,Can save 20-30% electricity compare SCR parallel type
3. Series Resonance IGBT type machine, will not interference other equipment working, No need special input transformer to working this machine. Will not pollute electricity Net.
4. Digital type machine, frequency, power, current can shows in the touch screen, easy to control the machine and see the working efficiency.
5. Water Pressure and water Temperature Meter in the machine.
6. Adjustable Transformer, more options for you to connect different induction coils. Will be large using for different workpiece.
Application:
After-sale service:
1. Warranty time: Within 18 months from the date of delivering, 12months from date of receiving.
2. Within warranty all parts are free for customer, any fault caused by non artificial reason, any quality problems such as design,
manufacture, or procedure occurs, We shall provide replacement parts after detecting the faults.
3. If any big quality problems occurs out of the guarantee period, we will send maintenance
technician to provide visiting service after checking with the customer and charge for a favorable price.
5. We will provide a lifetime cost price to the buyer with the materials and spare parts used in system operation, equipment
maintenance.
6. The above mentioned are only basic aftersale service requirements,we will make more promises related to quality assurance and operation guarantee.
