SGS MF-40KW Medium Frequency Induction Heating Machine For Hot Forging Equipment

SGS MF-40KW Medium Frequency Induction Heating Machine For Hot Forging Equipment
SGS MF-40KW Medium Frequency Induction Heating Machine For Hot Forging Equipment SGS MF-40KW Medium Frequency Induction Heating Machine For Hot Forging Equipment SGS MF-40KW Medium Frequency Induction Heating Machine For Hot Forging Equipment SGS MF-40KW Medium Frequency Induction Heating Machine For Hot Forging Equipment

Large Image :  SGS MF-40KW Medium Frequency Induction Heating Machine For Hot Forging Equipment

Product Details:
Place of Origin: China
Brand Name: ORD
Certification: CE,ISO,GSG
Model Number: MF-40KW
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Price: USD2800-3500
Packaging Details: Exported Wooden Box
Delivery Time: 5-6 Work days
Payment Terms: T/T, D/P, Western Union, MoneyGram
Supply Ability: 100 SETS/MONTH In Stock

SGS MF-40KW Medium Frequency Induction Heating Machine For Hot Forging Equipment

Description
Name: Induction Heater Usage: Hot Forging, Annealing, Melting
Heating Principle: Non-Contact Heating Type: MF-40KW
Working Frequency: 1-20Khz Output Power: 40KW
Input Current: 60A Control Way: Infineon IGBT
Work Voltage: 380V /415V*3Phase 50-60HZ Water Temperature Protection Point: 100% (40degree Room Temperature)
Power Factor: 0.98 Cooling System: Water Cooled
Highlight:

MF-40KW Medium Frequency Induction Heating Machine

,

SGS Medium Frequency Induction Heating Machine

,

40KW induction forging equipment

MF-40KW Medium Frequency Induction Heating Machine



Main Characteristic:

1. Infineon module and Inverting technologies of third generation been used; Higher reliability and lower maintenance cost.
2. 100% Duty cycle, continuous working is allowed at maximum power output.
3. Simple to install, Installation can be done by unprofessional person very easily;

4. Double digital Screen display, better to know the working performance of the machine!

5. Energy Saving Up to 20-30% compare with SCR machine.

6. Diode Rectification Technology Make sure high power factory—0.98.

7. Soft Switch Technology And prefect Protection system( Over Heat, Over Current, Under Voltage, Over Voltage, Phase Fail, Lack Water) enhance Good Reliability.



Parameters:

Model MF-40KW (Three phase)
work power 380V/415V/440V/480V*3phase 50HZ-60HZ
input current 60A
Output Power  40KW
fluctuating frequency 1-20KHZ
the flow rate of cooling water 0.15-0.3Mpa
water temperature protection point 40C
product size Main parts:675*325*655mm
transformer: 530*300*475mm
net weight main : 53 KGS
transformer :38KGS



Application

Heating (hot forging, hot fitting and smelting):

1 Hot forging aims to fabricate the work pieces of certain temperature (different materials require different temperatures) into other shapes through forging press with the help of punch press, forging machine or other equipments, for instances, hot extrusion of watch case, watch flan, handle, mold accessory, kitchen and table ware, art ware, standard part, fastener, fabricated mechanical part, bronze lock, rivet, steel pin and pin.



2. Hot fitting refers to the connection of different metals or metals with nonmetals through the heating based on the principle of hot expansion or hot smelting, for instances, embedded welding of copper core of computer radiator with aluminum sheet and speaker web, compound of steel and plastic tube, sealing of aluminum foil (tooth paste peel), motor rotor and sealing of tubular electric heating element.



3. Smelting mainly aims to melt the metal into liquid by using the high temperature, which is mainly applicable to the smelting of iron, steel, copper, aluminum, zinc as well as various noble metals.



Advantage:
1.More than 22 years experience, stable and goods performance!
2.CE,SGS, TUV,ROSH certificated
3. Infineon IGBT Machine, Saving 20-30% electricity compare with SCR type.
4.Suitable for a large range, heating, quenching, forging, melting, soldering and so on.
5. Non-contact induction heating, no flame,less environment pollution, Environmental protection and energy saving products.
6. High efficiency,high output&high reliability
7. Small size &light weight



Working Principle: (What is induction heating? How does induction heating work?)
During induction heating eddy currents are induced in an electrically conductive metallic workpiece by an alternating electromagnetic field. These are converted into heat by magnetic loss. - Or, simply put, the metal heats up due to the current flow produced in the workpiece. This enables induction heating to introduce heat directly into the workpiece rather than through connectivity from an external source such as heating with a flame or in a furnace. This process thus achieves a very high degree of efficiency. Additionally, heating can also be accomplished passing through non-conductive materials. The surrounding area is only heated indirectly.

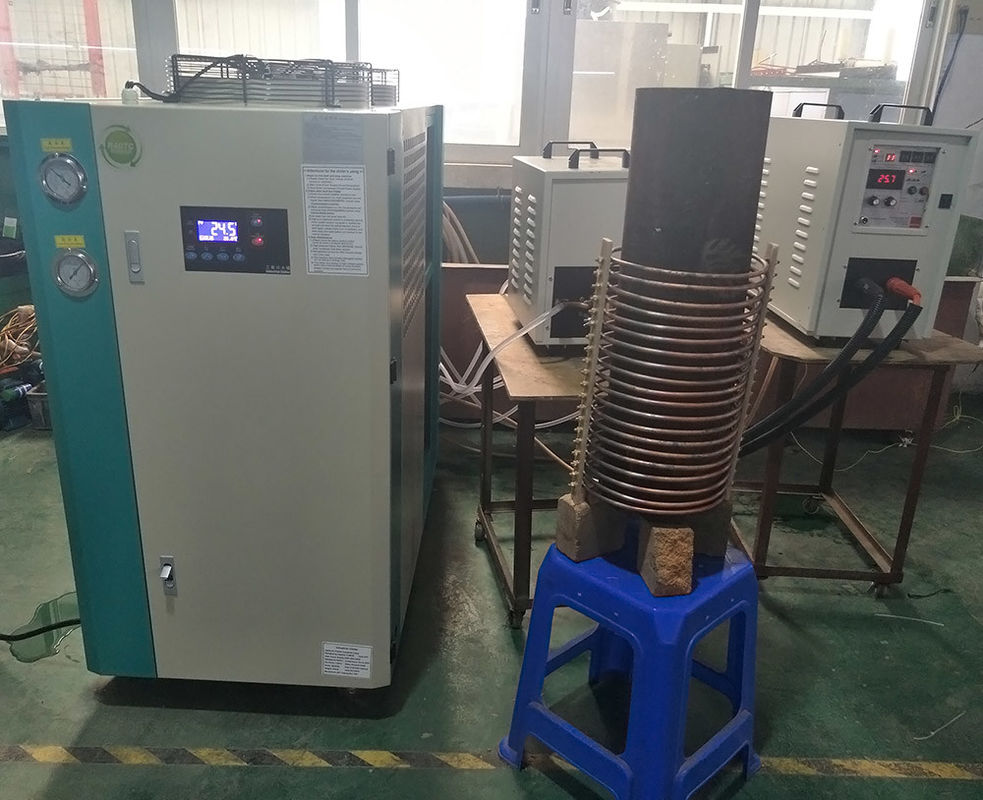

SGS MF-40KW Medium Frequency Induction Heating Machine For Hot Forging Equipment 0

SGS MF-40KW Medium Frequency Induction Heating Machine For Hot Forging Equipment 1











SGS MF-40KW Medium Frequency Induction Heating Machine For Hot Forging Equipment 2
