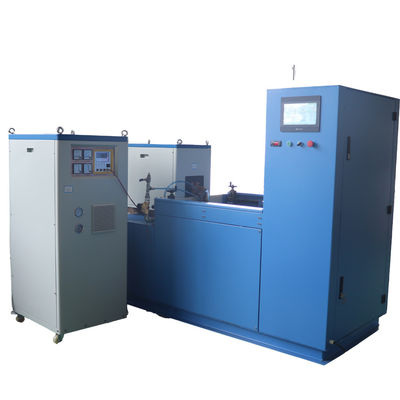

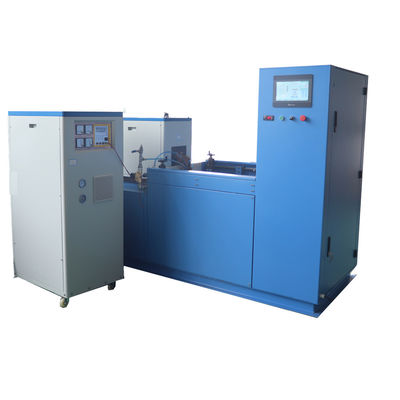

Gear Induction Hardening Machine PLC System
Main Characteristic:
1. The Induction Hardening Machine Tool main using for different Gears, Sprocket and Chain Wheel, Using PLC System control the Induction Hardening Machine, High Precise, Simple to operate, easy to understand, no need Professinal Person to operate.
2.This equipment uses the digital signal processing (DSP) digital real-time high-speed signal processor and DDS (Direct Digital Synthesizer) direct digital frequency synthesizer. Infieneon IGBT type.
3. It has the characteristics of small size, light weight, high efficiency, energy saving, simple installation, high reliability and not easy to damage.
3. The heating speed is fast and the heating efficiency is high.
4. Visual digital display of voltage, current, frequency, power, heating time, and heating temperature,etc.
5. Can Predictable power, that is the power can be set before heating is turned on, with high accuracy. This function is not available for other similar products in the market.
6. Reasonable layout of the internal components of the equipment, the main control circuit board is centralized on the weak side to avoid the interference of the strong current to the control circuit and improve the control accuracy.
7. Induction Heating Machine have remote control function and adopt digital circuit control, power regulation can be adjusted from 0% to 100% resolution.
8. Servo Motor control up and down, Rotate movement, High Precise.
Technical Paramater:
| Model |
ORD-600MM |
| work power |
380V* 3phase 50HZ-60HZ |
| The Workpiece Diamater |
1-600MM |
| The max Workpiece Weight |
100KGS |
| Quenching Way |
Soak/Immerse way or Spray way |
| Control Accuracy |
0.05% |
| water temperature protection point |
40C |
| The Slider Feeding Speed Range |
0-200mm/s |
| Control System |
PLC |
Application:
Hardening Gear, Sprocket and Chain Wheel
Quenching Gear, Sprocket and Chain Wheel
Advantage of Induction Hardening Machine.
1. Infineon IGBT type,Can save 20-30% electricity compare SCR parallel type
2 Induction Hardening System improve hardening efficiency and precision.
3 Servo Motor or Cylinder control up and down movement, fast into the water to quench the workpiece, can fast cooling the workpiece, reach to hardending depth and hardening hardness, good hardening efficiency.
After-sale service:
1. Warranty time: Within 18 months from the date of delivering, 12months from date of receiving.
2. Within warranty all parts are free for customer, any fault caused by non-artificial reason, any quality problems such as design, manufacture, or procedure occurs, We shall provide replacement parts after detecting the faults.
3. If any big quality problems occurs out of the guarantee period, we will send maintenance
technician to provide visiting service after checking with the customer and charge for a favorable price.
5. We will provide a lifetime cost price to the buyer with the materials and spare parts used in system operation, equipment maintenance.
6. The above mentioned are only basic aftersale service requirements,we will make more promises related to quality assurance and operation guarantee.
