Product Details:
|
| Type: | HFH-25KW | Name: | Handheld Induction Welding Machine |
|---|---|---|---|
| Input Power: | 25KW | Output Power: | 25KW |
| Work Voltage: | 380V/415V/440V/480V*3Phase 50-60HZ | Input Current: | 25A |
| Environment Temperature: | +5c--+50C | Work Frequency: | 30-80KHZ |
| Power Adjust Arrange: | 1.5-100% | Coaxial Flexible Cable Length: | 5M |
| Control Way: | Infineon IGBT Control | Cooling Pressure: | 4-8 Bar |
| Highlight: | Induction Soldering Machine 25KW,Bronze Tube Induction Soldering Machine,25KW Handheld Induction Heating Equipment |
||

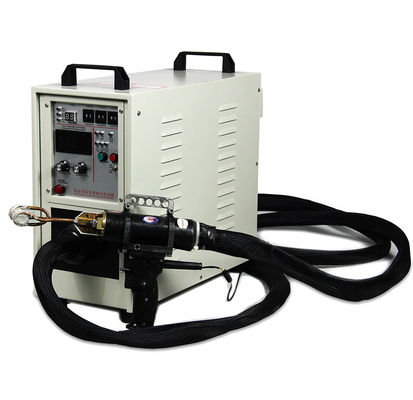

HFH-25KW High Frequency Handheld Induction Heating/Brazing/Soldering Machine
Spefication:
1. Infineon IGBT module and Inverting technologies of third generation been used; Higher reliability and lower maintenance cost.
2. 100% Duty cycle, continuous working is allowed at maximum power output.
3. Display of heating power and heating current and oscillating frequency;
4. Simple to install, Installation can be done by unprofessional person very easily;
5. Light weight, Protable type.
6. 5M cables Connection with heating head can handle it will not reduce the power , can heat some workpiece that normal coil can not get it
Technical Paramater:
| Type | HFH-25KW |
| Work power | 3Phase×380VAC 50-60HZ |
| The range of operating voltage |
340V-430V(370-480)V AC
|
| Connect Cables with heating head | 5M |
| Output Fluctuating power | 25KW |
| Fluctuating frequency | 30-80KHZ |
| Max Input Current | 25A |
| Timing (Heat time, Retain time , Cool time) | 1-99S |
| The flow rate of cooling water | 0.08-0.16 Mpa 7L/Min |
| Water temperature protection point | 40℃ |
| Duty cycle | 100%(40degree room temperature) |
| Weight | 48Kg |
| Size |
600*230*480MM
|
Application:
Air conditioners, refrigerators, refrigeration system brass brazing, pipe brazing, as well as brass and aluminum tubes brazed
the welding industry (brazing)
1. Welding of various turning tools, planer, milling machining and cutting tools
2. Welding of various diamond tools, such as: welding diamond saw blades, diamond drill
3. Various shaped drill head column Button Bits, drill Yan briquette, riveting rod drill carbide brazed
4. Various shearer teeth welding, various digging machine cutter welding
5. Various mechanical welding tool
Advantage of the Induction Heating Machine:
1. More than 22 years experiences, high quality control, stable performance.
2. CE Certificated
3. Energy Saving Up to 20-30% compare with SCR machine.
4. 5m flexible cables not reduce the power, it is easy to work some workpiece can not move it.
5. Soft Switch Technology And prefect Protection system( Over Heat, Over Current, Under Voltage, Over Voltage, Phase Fail, Lack Water) enhance Good Reliability.
