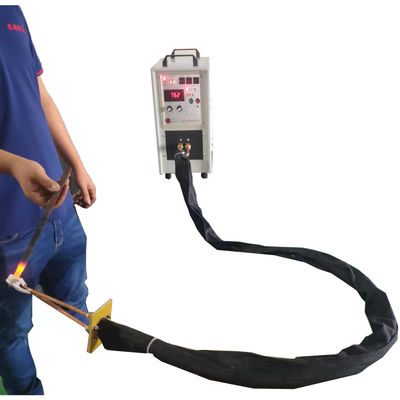

2M Handheld 15 Kw Induction Heater Induction Heater Welding Machine

Brand Name:	ORD
Model Number:	HF-15KW
MOQ:	1 SET
Price:	USD850-1050
Packaging Details:	Exported Wooden Box
Payment Terms:	T/T, D/P, D/A, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE,ISO, SGS

Type:

HF-15A

Name:

Portable Induction Heater

Usage:

Brazing, Soldering, Welding

Work Voltage:

220V* Single Phase 50-60Hz

Input Power:

15KW

Output Power:

15KW

Input Current:

36A-39A

Work Frequency:

30-80KHZ

Coaxial Flexible Cable Length:

Control Way:

Infineon IGBT Control

Supply Ability:

100SET/MONTH Goods in Stock

Highlight:

Handheld 15 Kw Induction Heater

2M 15 Kw Induction Heater

2M Induction Heater Welding Machine

Product Description

15KW 2M Portable Induction Heating Machine for Welding, Soldering, Brazing

Features:

1. Infineon IGBT module and Inverting technologies of third generation been used; Higher reliability and lower maintenance cost.

2. 100% Duty cycle, continuous working is allowed at maximum power output.

3. Display of heating power and heating current and oscillating frequency;

4. Simple to install, Installation can be done by unprofessional person very easily;

5. Light weight, Protable type.

6. 2M Coaxial Flexible cables Connection, can heat some workpiece that normal coil can not get it

Technical Paramater:

Type	HF-15A
Work power	Signle Phase×220VAC 50-60H_Z
The range of operating voltage	200-240V AC
Flexible Connect Cables	2M
Output Fluctuating power	15KW
Fluctuating frequency	30-80KHZ
Max Input Current	36A
Timing (Heat time, Retain time , Cool time)	1-99S
The flow rate of cooling water	0.08-0.16 Mpa 7L/Min
Water temperature protection point	40℃
Duty cycle	100%(40degree room temperature)
Weight	43Kg
Size	600230480MM

Application:

Air conditioners, refrigerators, refrigeration system brass brazing, pipe brazing, as well as brass and aluminum tubes brazed

the welding industry (brazing)
1. Welding of various turning tools, planer, milling machining and cutting tools
2. Welding of various diamond tools, such as: welding diamond saw blades, diamond drill
3. Various shaped drill head column Button Bits, drill Yan briquette, riveting rod drill carbide brazed
4. Various shearer teeth welding, various digging machine cutter welding
5. Various mechanical welding tool

Advantage of the Induction Heating Machine:

1. More than 22 years experiences, high quality control, stable performance.

2. CE Certificated

3. Energy Saving Up to 20-30% compare with SCR machine.

4. 5m flexible cables not reduce the power, it is easy to work some workpiece can not move it.

5. Soft Switch Technology And prefect Protection system( Over Heat, Over Current, Under Voltage, Over Voltage, Phase Fail, Lack Water) enhance Good Reliability.
