Product Details:
|
| Name: | Induction Heater | Application: | Heating And Melting All Metals |
|---|---|---|---|
| Type: | HF-25AB | Power: | 25KW |
| Voltage: | 360V-480V 3phase 50-60HZ | Working Frequency: | 30-80Khz |
| Water Temperature Protection Point: | 100% (40degree Room Temperature) | Water Alarm System: | Water Pressure And Water Temperature Sensor And Meter |
| Cooling System: | Water Cooled | Input Current: | 25A |
| Highlight: | High Frequency Portable Induction Heating Machine iso,Portable Induction Heating Machine 25KW,High Frequency 25 kw induction heater |
||

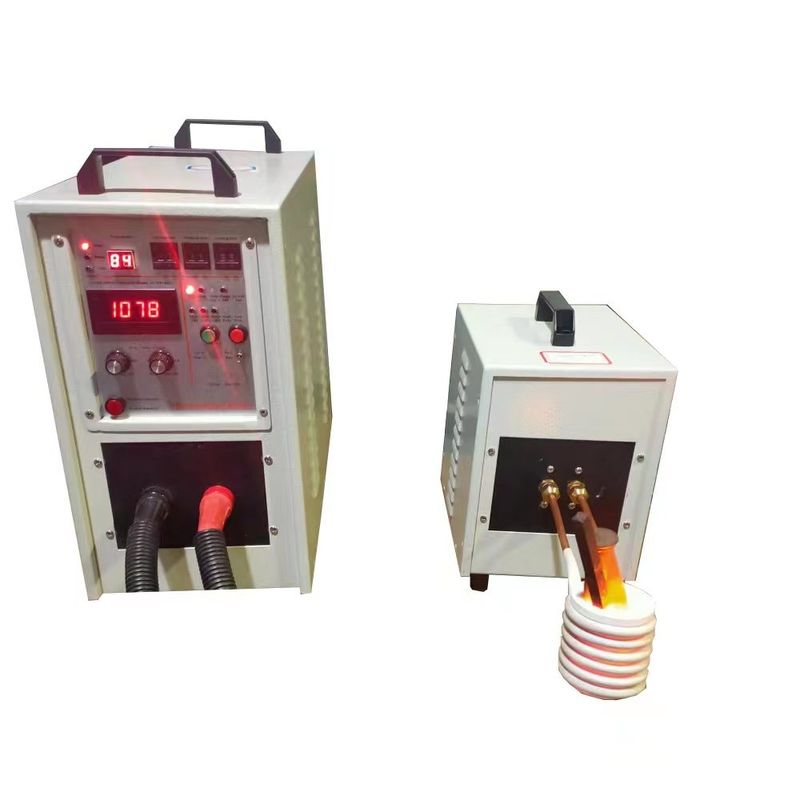

Portable High Frequency Induction Heating Machine HF-25KW
Specfication:
1. Infineon IGBT module and Inverting technologies of third generation been used; Higher reliability and lower maintenance cost.
2. Non-contact Heating is the biggest Characteristic of the induction heating.
3. Simple to install, Installation can be done by unprofessional person very easily;
4. Advantages of the model with timer: the power and the operating time of the heating period and the retain period can be preset respectively, to do realize a simple heating curve, this model is suggested to use for batch production to improve the repeatability!
5. 100% Duty cycle, continuous working is allowed at maximum power output.
6. Energy Saving Up to 20-30% compare with SCR machine.
7. Diode Rectification Technology Make sure high power factory—0.98.
8. Soft Switch Technology And prefect Protection system( Over Heat, Over Current, Under Voltage, Over Voltage, Phase Fail, Lack Water) enhance Good Reliability.
Technical Parameters:
| Type | HF-25AB |
| Work power | 380V/ 415V / 440V* 3Phase 50HZ Or 60HZ |
| The range of operating voltage | 340-430V AC |
| Output power | 25KW |
| Fluctuating frequency | 30-80KHZ |
| Output current | 200-1058A |
| Timing (Heat time, Retain time , Cool time) | 1-99S |
| The flow rate of cooling water | 0.06-0.12Mpa 7.5L/Min |
| Water temperature protection point | 40℃ |
| Duty cycle | 100% |
| Weight |
55KGS
|
| Size | 610*290*550mm |
Usage
1. Heat Treatment All Kinds of the Metal, for example, shaft, gear, pipe and so on!
2. Soldering copper and copper fittings, Soldering Copper with Brass plate, Soldering Copper with S.S. Soldering Alum with Alum.
3. Annealing all kinds of the metal, S.S/ Copper / Alum pipe and Plate,Strip Online Annealing
4. Hot Forging for Copper and brass Fittings, Hot Forging for Steel Bar and steel Plate. Hot Forging before Stamp.
5. Melt Gold, Silver, Platium, Stainless Steel, Steel, Iron, Alum, Zinc and all kinds of metal.
After-sale service:
1. Warranty time: Within 18 months from the date of delivering, 12months from date of receiving.
2. Within warranty all parts are free for customer, any fault caused by non-artificial reason, any quality problems such as design, manufacture, or procedure occurs, We shall provide replacement parts after detecting the faults.
3. If any big quality problems occurs out of the guarantee period, we will send maintenance
technician to provide visiting service after checking with the customer and charge for a favorable price.
5. We will provide a lifetime cost price to the buyer with the materials and spare parts used in system operation, equipment maintenance.
6. The above mentioned are only basic aftersale service requirements,we will make more promises related to quality assurance and operation guarantee.
