1650C 300KW Medium Frequency Induction Furnace For Melting Application

1650C 300KW Medium Frequency Induction Furnace For Melting Application
1650C 300KW Medium Frequency Induction Furnace For Melting Application 1650C 300KW Medium Frequency Induction Furnace For Melting Application 1650C 300KW Medium Frequency Induction Furnace For Melting Application 1650C 300KW Medium Frequency Induction Furnace For Melting Application

Large Image :  1650C 300KW Medium Frequency Induction Furnace For Melting Application

Product Details:
Place of Origin: China
Brand Name: ORD
Certification: CE,ISO,GSG
Model Number: DSP-300KW-250KG
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Price: USD15800-USD17800.00
Packaging Details: Exported Wooden Box
Delivery Time: 10-15 Work days
Payment Terms: T/T, D/P, Western Union, MoneyGram
Supply Ability: 100 SETS/MONTH In Stock

1650C 300KW Medium Frequency Induction Furnace For Melting Application

Description
Type: DSP-300KW-250KGS Name: Induction Heating Machine
Application: Melting Power: 300KW
Capacity: 250KG Input Current: 450A
DC Current: 600A Voltage: 380V*3Phase 50-60HZ
Melting Temperature: 1650C Working Frequency: 1-10KHZ
Water Temperature Protection Point: 100% (40degree Room Temperature) Melting Time: 40-50Minutes
Power Factor: 0.98 Cooling System: Water Cooled
Display: Touch Screen/Digital Display Control Way: Gear Motor System
Working Way: Auto/Manual Protection Level: Water Lack, Over Current, Over Voltage, Under Voltage, High Frequency/ Low Frequency/Phase Fail
Highlight:

300KW Medium Frequency Induction Furnace

,

1650C Medium Frequency Induction Furnace

,

300KW medium frequency furnace

DSP-MF-300KW Medium Frequency Induction Heating Machine For Melting Application



Features:

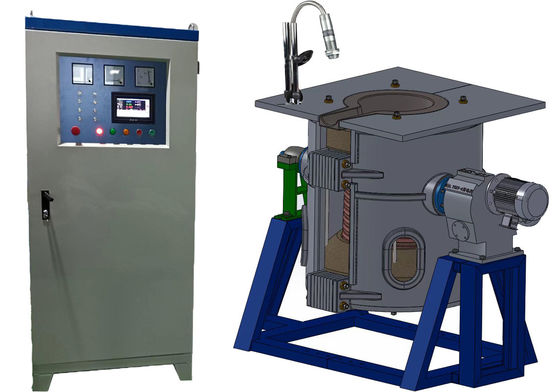

1. The intermediate frequency melting furnace is mainly composed of a power supply, an furnace body with a induction coil and a crucible. Melting metal will be put in the crucible built with refractory materials.

2. The metal is put in the crucible. After the AC power is turned on, an alternating magnetic field is generated in the induction coil. Being cut by the magnetic line of force , the metal material generates an induced electromotive force, and it creates a induced eddy current to heat and melt metal. During the heating and melting process, the temperature of the induction coil keep same as the surrounding temperature, and there is no harmful gases and bright light to pollute the environment. Melting speed can be controlled by adjusting the frequency and current through the power cabinet.

3. Infineon IGBT type, the system structure is safe and reliable, stable performance and simple operation.

4.Imported integrated circuit and power module are used to realize automatic frequency tracking. It has the characteristics of small size, light weight, high efficiency, energy saving, simple installation, high reliability and not easy to damage.

5. The Melting Speed is fast and the heating efficiency is high. And it is easy to ensure the heating quality and the running water operation.

6. Our power supply has the insolation transformer, melting furnace’s output voltage is low, so very safe to operate our melting furnace.

7. Infineon IGBT type, Can save 20% electricity compare SCR parallel type and Lamp Vacuum Tube type.

8. Series Resonance IGBT type machine, will not interference other equipment working, No need special input transformer to working this machine.

9. Easy to Using, no need adjust the main board, no need to adjust capacitor's connection.

10. After we debug the machine in our company, then you can use it directly. Very convenient.





Model DSP-300KW-250KGS
work power 380V*3phase 50HZ-60HZ
input current 450A
Output Current 600A
DC Voltage 500V
Fluctuating output power 30KW
Melting Capacity 250KGS
Melting Temperature 1650C
fluctuating frequency 1-10KHZ
the flow rate of cooling water 0.15-0.3Mpa
water temperature protection point 40C
product size 860*800*1860MM
1000*1000*1320MM
net weight 380KGS
400KGS





Application Intermediate frequency electric furnace is widely apply in melting non-ferrous and ferrous metal. Such as carbon steel, alloy steel, special steel, iron, copper and aluminum, etc.


For product: Ingots, steel rebar, steel billet, iron powder, auto parts, brass statues, iron pots or manhole covers, etc.

1650C 300KW Medium Frequency Induction Furnace For Melting Application 0


1650C 300KW Medium Frequency Induction Furnace For Melting Application 1





Advantage of Compare the SCR Parallel induction heating machine:

1. Infineon IGBT type,Can save 20-30% electricity compare SCR parallel type

2. Series Resonance IGBT type machine, will not interference other equipment working, No need special input transformer to working this machine. Will not pollute electricity Net.

3.Easy to Using, no need adjust the main board, no need to adjust capacitor's connection when you want to work other workpiece.

4. After we debug the machine in our company, then you can use it directly. Very convenient.

5. Digital type machine, frequency, power, current can shows in the touch screen, easy to control the machine and see the working efficiency.

6. More stable performance.

7. Water Pressure and water Temperature Meter in the machine.



After-sale service:
1. Warranty time: Within 18 months from the date of delivering, 12months from date of receiving.
2. Within warranty all parts are free for customer, any fault caused by non-artificial reason, any quality problems such as design, manufacture, or procedure occurs, We shall provide replacement parts after detecting the faults.
3. If any big quality problems occurs out of the guarantee period, we will send maintenance
technician to provide visiting service after checking with the customer and charge for a favorable price.
5. We will provide a lifetime cost price to the buyer with the materials and spare parts used in system operation, equipment maintenance.
6. The above mentioned are only basic aftersale service requirements,we will make more promises related to quality assurance and operation guarantee.

1650C 300KW Medium Frequency Induction Furnace For Melting Application 21650C 300KW Medium Frequency Induction Furnace For Melting Application 3
