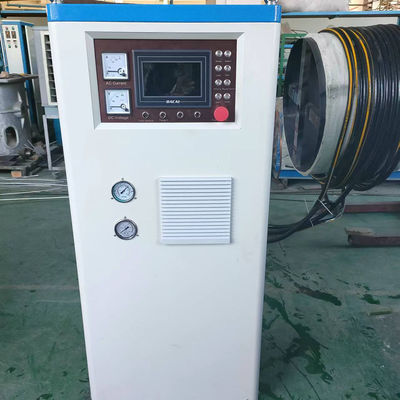

200KW PWHT Equipment Digital Induction Heating Machine For Heating Assembly Disassembly

DSP-200KW Digital Induction Heating Machine For Heating Assembly And Disassembly

Main Features:

1.Main using for the Preheat the pipe, Preheating before welding, hydrogen elimination after welding, stress relief heat treatment, heat jacket heat removal, diathermy, hot forging, etc

2. Wated Cooled type, compare with air cooled type, price is cheaper than air cooled

3. 2 Channel Temperature system testing

4. Quick Heating: Reach the target temperature quickly!

5. More options for working mode: Time, temperature, Power,constant Power and so on. Can know the heating curve.

6. Full digital embedded control software, high heating accuracy, programmable control, can achieve remote monitoring and

remote control; Full Digital control, can shows heating time,heating power, heating current, Heating impedance, frequency and so on in the machine.

7. Induction Heating Machine have remote control function and adopt digital circuit control, power regulation can be adjusted from 1% to 100% resolution, and digital PID temperature control module can be configured to set the target temperature of workpiece (infrared temperature measurement automatically), can check the heating temperature Curve.

8. This machine has Memory Storage Function, There are 9 (P1-P9)programs, which can memorize 9 different workpiece in the machine, and select programs by clicking P(P1-P9). Can save much time if you have many workpiece in one machine, you can choose the programs (P1-P9) to fast working.

9. Infineon IGBT and Inverting technologies of third generation been used; Higher reliability and lower maintenance cost.
10. 100% Duty cycle, continuous working is allowed at maximum power output.
11. Simple to install, Installation can be done by unprofessional person very easily;

Data Sheet:

Advantage of Induction Heating Machine:

1. Infineon IGBT type,Can save 20-30% electricity compare SCR parallel type

2. Flexible Heating Cables, easy to work different workpiece sizes and shapes.

3. Series Resonance IGBT type machine, will not interference other equipment working, No need special input transformer to working this machine. Will not pollute electricity Net.

4. After we debug the machine in our company, then you can use it directly. Very convenient.

5. Digital type machine, frequency, power, current can shows in the touch screen, easy to control the machine and see the working efficiency.

6. More stable performance.

7. Water Pressure and water Temperature Meter in the machine.

Application:
1.Pre-heat the Steel Pipe, Oil Pipe, Steel Plate

2. PWHT steel Pipe and Steel Plate

3. Heat shrink and heat expansion all shaft sleeve, motor

4. Heat Assembly and disassembly

After-sale service:
1. Warranty time: Within 18 months from the date of delivering, 12months from date of receiving.
2. Within warranty all parts are free for customer, any fault caused by non-artificial reason, any quality problems such as design, manufacture, or procedure occurs, We shall provide replacement parts after detecting the faults.
3. If any big quality problems occurs out of the guarantee period, we will send maintenance
technician to provide visiting service after checking with the customer and charge for a favorable price.
5. We will provide a lifetime cost price to the buyer with the materials and spare parts used in system operation, equipment maintenance.
6. The above mentioned are only basic aftersale service requirements,we will make more promises related to quality assurance and operation guarantee.
