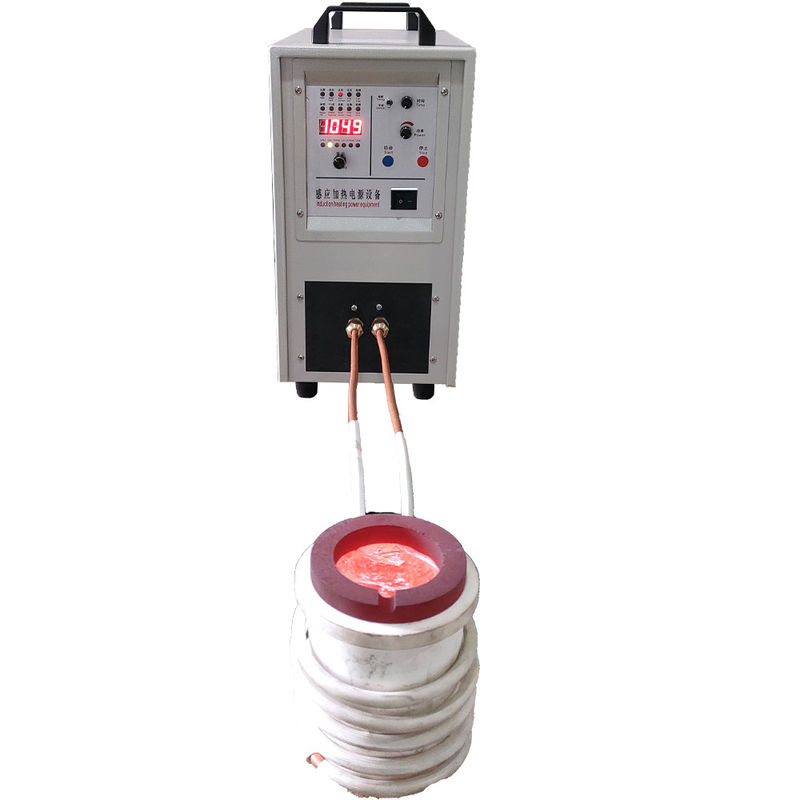

5KGS High Frequency Induction Heater 15kw Melting Furnace For Aluminium

Brand Name:	ORD
Model Number:	HF-15KW-5KGS
MOQ:	1SET
Price:	USD650-1150
Packaging Details:	Exported Wooden Box
Payment Terms:	T/T, D/P, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE,ISO,SGS, TUV

Name:

Alum Melting Furnace

Application:

Melting All Kinds Of Metal

Type:

HF-15KW-5KGS

Power:

Average Melting Furnace:

5-7Minutes

Melting Temperature:

Melting Capacity:

Voltage:

380V 3phase 50-60HZ

Working Frequency:

30-80Khz

Water Temperature Protection Point:

100% (40degree Room Temperature)

Water Alarm System:

Water Pressure And Water Temperature Sensor And Meter

Cooling System:

Water Cooled

Supply Ability:

100 SETS/MONTH In Stock

Highlight:

5KGS High Frequency Induction Heater

High Frequency Induction Heater 15kw

15kw Melting Furnace For Aluminium

Product Description

5KGS Melting Furnace For Aluminium HF-15KW High Frequency Induction Heater

Technical Parameters:

Type	HF-15KW-5KGS
Work power	380V* 3Phase 50HZ Or 60HZ
The range of operating voltage	360-480V AC
Output power	15KW
Capacity	5KG
Fluctuating frequency	30-80KHZ
Output current	200-750A
Timing (Heat time, Retain time , Cool time)	1-99S
The flow rate of cooling water	0.06-0.12Mpa 7.5L/Min
Water temperature protection point	40℃
Duty cycle	100%
Weight	45KGS
Size	610290550mm

Main Features:

1. Melting is fast and the heating efficiency is high. Some minutes can done the melting.

2. Infineon IGBT type, the system structure is safe and reliable, stable performance and simple operation.

3. Imported integrated circuit and power module are used to realize automatic frequency tracking. It has the characteristics of small size, light weight, high efficiency, energy saving, simple installation, high reliability and not easy to damage.

4. Our power supply has the insolation transformer, melting furnace’s output voltage is low, so very safe to operate our melting furnace.

5. Infineon IGBT Melting Furnace, Can save 20% electricity compare SCR parallel type.

Application

Smelting mainly aims to melt the metal into liquid by using the high temperature, which is mainly applicable to the smelting of

Gold, Silver, Platinum, Palladium, Steel, Iron, Stainless Steel, and so on.

After-sale service:
1. Warranty time: Within 18 months from the date of delivering, 12months from date of receiving.
2. Within warranty all parts are free for customer, any fault caused by non-artificial reason, any quality problems such as design, manufacture, or procedure occurs, We shall provide replacement parts after detecting the faults.
3. If any big quality problems occurs out of the guarantee period, we will send maintenance
technician to provide visiting service after checking with the customer and charge for a favorable price.
5. We will provide a lifetime cost price to the buyer with the materials and spare parts used in system operation, equipment maintenance.
6. The above mentioned are only basic aftersale service requirements,we will make more promises related to quality assurance and operation guarantee.
