Product Details:
|
| Name: | Induction Hot Forging Machine | Application: | Induction Hot Forging |
|---|---|---|---|
| Type: | MF-80KW | Power: | 80KW |
| Input Current: | 120A | Voltage: | 380V/415V/440V/480V*3Phase 50-60HZ |
| Working Frequency: | 1-20KHZ | Water Temperature Protection Point: | 100% (40degree Room Temperature) |
| Cooling System: | Water Cooled | DC Voltage: | 500V |
| Control Way: | Infineon IGBT | Working Way: | Time Or Temperature Control |
| Feeding System: | Cylinder Pusher | ||
| Highlight: | 120A Medium Frequency Induction Forging Furnace,80KW Induction Forging machine,Induction Forging Furnace For Copper Brass Bar |
||

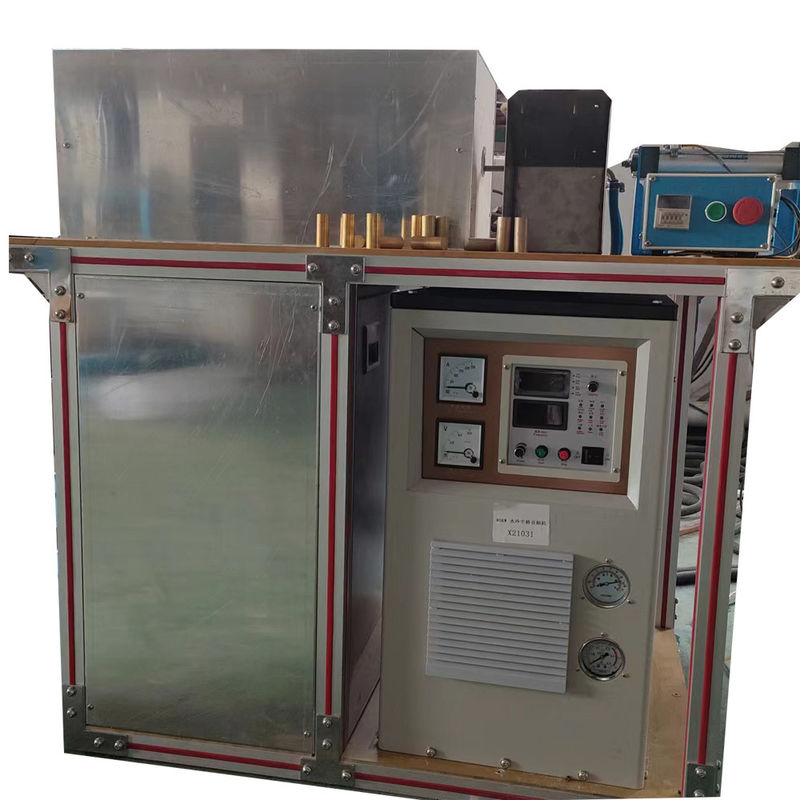

120A Medium Frequency Induction Forging Machine For Copper, brass Bar
Features:
1. Cylinder push as the Feeding system, no need worker to set workpiece one by one, automatic system will improve produce efficiency.
2. Infineon module and Inverting technologies of third generation been used; Higher reliability and lower maintenance cost.
3. 100% Duty cycle, continuous working is allowed at maximum power output.
4. Simple to install, Installation can be done by unprofessional person very easily;
5. 100% Duty cycle, continuous working is allowed at maximum power output.
6. High Efficiency Up to 98%. Diode Rectification Technology Make sure high power factory—0.98.
7. Energy Saving Up to 20-30% compare with SCR machine.
8. Soft Switch Technology And prefect Protection system( Over Heat, Over Current, Under Voltage, Over Voltage, Phase Fail, Lack Water) enhance Good Reliability.
9. Display of heating power,Heating Current, Voltage, oscillating frequency.
Parameters:
| Model | MF-80KW (Three phase) |
| work power | 380V*3phase 50HZ-60HZ |
| input current | 120A |
| Output Current | 160A |
| Fluctuating output power | 80KW |
| fluctuating frequency | 1-20KHZ |
| the flow rate of cooling water | 0.15-0.3Mpa |
| water temperature protection point | 40C |
| product size | L1200*W700mm*H1200mm |
| net weight |
340KGS |
Application:
1.Hot Forging For Bolt
2.Hot Forging For Steel Bar, Iron Bar
3.Hot Foring For Copper,Brass, Bronze's bar, Plate, Bolt
Advantage of Induction Heating Machine:
1.Infineon IGBT type,Can save 20-30% electricity compare SCR parallel type
2.Series Resonance IGBT type machine, will not interference other equipment working, No need special input transformer to working this machine. Will not pollute electricity Net.
3. Easy to Using, no need adjust the main board, no need to adjust capacitor's connection when you want to work other workpiece.
4. After we debug the machine in our company, then you can use it directly. Very convenient.
5. More stable performance.
6. Water Pressure and water Temperature Meter in the machine.
7. Semi-automatic Feeding system, improve the heating efficiency.
After-sale service:
1. Warranty time: Within 18 months from the date of delivering, 12months from date of receiving.
2. Within warranty all parts are free for customer, any fault caused by non-artificial reason, any quality problems such as design, manufacture, or procedure occurs, We shall provide replacement parts after detecting the faults.
3. If any big quality problems occurs out of the guarantee period, we will send maintenance
technician to provide visiting service after checking with the customer and charge for a favorable price.
5. We will provide a lifetime cost price to the buyer with the materials and spare parts used in system operation, equipment maintenance.
6. The above mentioned are only basic aftersale service requirements,we will make more promises related to quality assurance and operation guarantee.
