Product Details:
|
| Name: | Industrial Air Cooled Chiller | Type: | ORD-8HP |
|---|---|---|---|
| Application: | Cooling Down Water For Induction Heating Machine | Work Power: | 8.6KW |
| Nominal Refrigerating Capacity: | 23KW | Type/refrigeration: | Fully Enclosed Whirlpool/R410A Scroll/R410A |
| Power Supply: | 380V/415V/440V/480V 40-60HZ | Refrigeration Control: | External Equalizer Thermal Expanalon Valve |
| Water Pump: | 1.1KW | Electricity Parts: | Schneider |
| Compressor: | 1PC | ||
| Highlight: | 8HP Air Cooled Industrial Chiller,Air Cooled Industrial Chiller R410A Refrigerant,8HP air cooled industrial water chiller |
||

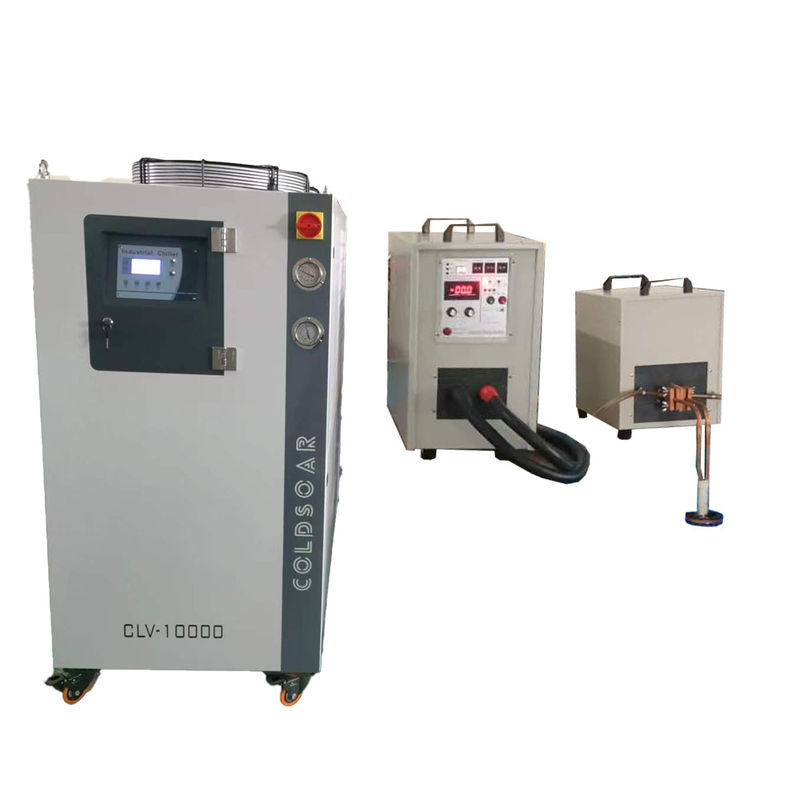

ORD-8HP Air Cooled Water Chiller R410A Refrigerant For Induction Heating Machine
Technical Parameters:
| Type | ORD | 8HP | |||
| Rated Power | KW | 8.6KW | |||
| Refrigerating | KW | 23KW | |||
| Compressor | Input power | 8HP | |||
| Refrigeration system | PC | 1PC | |||
| Type/refrigeration |
Fully enclosed whirlpool/ R410A Scroll/R410A |
||||
| Power supply | 415V*3 50-60HZ | ||||
| Refrigeration control | External equalizer thermal expanalon valve | ||||
| Condenser | type | Vortex | |||
| Fan power | w | 480W*2PCS | |||
| Evaporator | type | Building-type | |||
| Work flow rate | M3/h | 0.5-3.5 | |||
| Pipe size | IN | 4*1/2” or 4*10mm | |||
| Water tank capacity | L | 210L | |||
| Water pump | power | KW | 1.0KW | ||
| lift | M | 5-75M | |||
| Protection device | High/ low pressure switch, fusible plug thermal overload, phase reversal relay chilled water low temperature switch | ||||
| Dimension | Length mm | 1410 | |||
| Width mm | 660 | ||||
| Height mm | 1410 | ||||
| Weight | kg | 300KGS | |||
| Noise | dB(A) | 65 | |||
Features:
1. Panasonic/GMCC/INVOTECH scroll compressor head " high energy efficiency, save electricity and durable
2. The company 's production of the condenser, evaporator use the high efficient internal and external threaded copper.
3. Schneider electrical control accessories;
4. Use the micro electric Smart Control Panel;
5. Use the import EMERSON series Frozen accessories.
Work Range: Chilled water outlet temperature 5-20C, the cooling water outlet temperature range: 22-39C, the main power supply 3*380V, 50-60Hz, control power for single-phase 220V, 50-60Hz, cooling capacity enter the generator water temperature 12C, enter condenser water temperature 30C, the temperature difference 5C as the basis.
Application:
Cool Down the cooling water for induction heating machine
After-sale service:
1. Warranty time: Within 18 months from the date of delivering, 12months from date of receiving.
2. Within warranty all parts are free for customer, any fault caused by non artificial reason, any quality problems such as design,
manufacture, or procedure occurs, We shall provide replacement parts after detecting the faults.
3. If any big quality problems occurs out of the guarantee period, we will send maintenance
technician to provide visiting service after checking with the customer and charge for a favorable price.
5. We will provide a lifetime cost price to the buyer with the materials and spare parts used in system operation, equipment
maintenance.
6. The above mentioned are only basic aftersale service requirements,we will make more promises related to quality assurance and operation guarantee.
