Product Details:
|
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Online Support,Video Technical Support,Field Maintenance And Repair Service,No Overseas Service Provided | Warranty: | 1 Year |
|---|---|---|---|
| Application: | Melting,Braze,Forging,Heat Treatment | Name: | Mobile Induction Heating Machine, Moblie Induction Welding Equipment |
| Power: | 50kw | Weight: | 88KG |
| Voltage: | 220V/380V/415V/440V,3 Phase | Product Name: | Welding Machine , Brazing Equipment , \ |
| Duty Cycle: | 100% | Condition: | New |
| Type: | Handhead , Protable , Mobile, | Input Current: | 72A |
| Frequency: | 10-40KHZ | Feature: | High Efficiency,energy Saving,no Pollution,safe Easy Operation |
| Usage: | Heat Treatment Furnace,Heat Steel Bar Head,heating | Coaxial Cables: | 5M, 8M, 10M, 15M,20M,25M, 30M, 40M, |
| Highlight: | 440V Induction Welding Machine,50kw Induction Welding Machine,Abrasive Portable Induction Heating Machine |
||

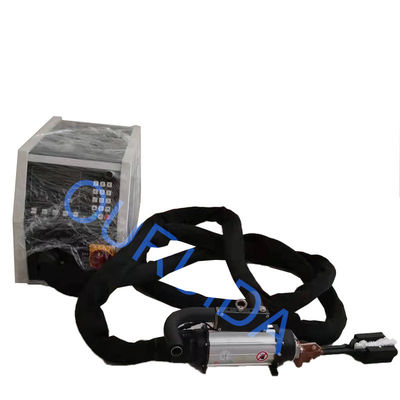

China Manufacturer Supply Moblie induction welding machine of diamond bits, such as diamond saw blades, abrasive:
Specification:
| Type | DSP-50KW |
| Rated Output Power | 50KW |
| Rated Output Frequency | 10-40KHZ |
| Can expand frquency | 1-100khz |
| Overload Heating time | 45%/10min |
| Power Adjust Arrange | 1.5-100% |
| Coaxial Flexible cable length | 80M |
| Input Voltage | 415V/ 440V/ 480V/*3phase 50-60hz |
| Max power | 50kw |
| Protection Level | IP54 |
| Environment Temperature | +5c--+50C |
| Cooling water flow | 21L/MIN |
| Cooling water Pressure | 4-8Bar |
| Weight | About 88kg |
Welding and Brazing industry:
1.Welding of drill bits for prospecting, such as a sub-drill and ram's horn drill bits.
2.Compound welding of brass, purple copper, stainless steel pan bottom and other metal materials.
3.Welding of carbide*. Such as turning tools, milling cutters twist drill hot rolling, pliers, hammers, spanners, breakers, etc.;
4. Welding of diamond bits, such as diamond saw blades, abrasives, saw teeth welding.
Annealing of Metal workpieces or large mining machinery tools:
Expanding bolts :
Expanding bolts with induction uses precise and localised heat, and is faster and safer than resistance or flame heating. With induction, a specially designed coil is inserted into the bolt. Rapid, precisely controlled and localised heat is then induced directly in the bolt. The heat expands the bolt by an exact, predetermined length, making it easy to remove the nut.
Only heats the part you want to heat.
Bolt threads with nuts stay cold during the heating operation.
No risk of rods melting inside the bolts.
Machine features:
(1) High heating temperature, fast speed, short heating time, and even heating of metal materials. The surface of the heated object is less oxidized, the workpiece is less deformed, and it is non-contact heating
(2) Flexible, convenient and accurate control of the output power
(3) The temperature of the heated workpiece is easy to control, so the quality of the product is stable
(4) The shape of the induction heating coil can be changed to heat complex workpieces, and local heating can also be achieved
(5) Due to the use of transistor devices with low losses and inverter control technology, the efficiency of the machine can reach more than 95%, and the energy and water saving effect is remarkable
(6) Small size and light weight of the machine, good working environment, no noise and dust
(7) Various protection actions are sensitive, the main devices have a long life, the failure rate of the set is low, the performance is reliable, and it can work continuously
(8) The machine can work when it is connected to water and electricity, easy to operate and convenient to maintain.
