Product Details:
|
| Name: | Ultra High Frquency Induction Welding Machine | Application: | Heating, Welding,Soldering, Hardening |
|---|---|---|---|
| Type: | UHF-06AC | Max Output Power: | 6KW |
| Work Voltage: | 200-240V * Single Phase 50-60hz | Working Frequency: | 400KHZ-1.5Mhz |
| Input Current: | 23A | Duty Cycle: | 100% (40 Degree Room Temperature) |
| Protection System: | Over Current, Over Voltage, Phase Fail, Under Voltage, Over Heat, Water Lack | Heating Time: | Point Continue |
| Core Components: | PCB | Machinery Test Report: | Provided |
| Condition: | New | Application Area: | Machinery Repair Shop, Manufcturing Plant ,Jewellery Manufacturers, And So Om |
| NET Weight: | 10.8KG | The Flow Rate Of Cooling Water: | >0.5MPa |
| Highlight: | SGS Induction Welding Machine,220V Induction Welding Machine,Serrated Ultra High Frequency Induction Heating Machine |
||

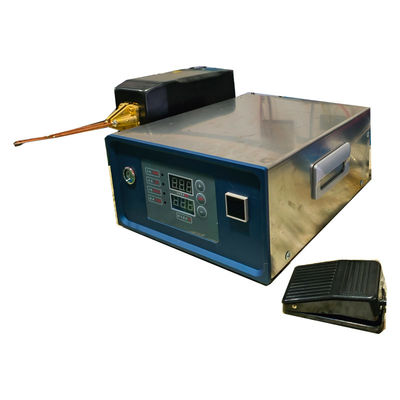

NEW Ultrahigh Frequency Induction welding machine of Welding Serrated Single phase 220V
Specifications :
| Model | UHF-06AC |
| Work power | Single phase 220V 50-60HZ |
| Current | 0.4-23A |
| Max power | 0-6KW |
| Fluctuating frequency | 1-2.0MHZ |
| Water temperature protection point | <35 ·C |
| The flow rate of cooling water | >0.5MPa |
| Product size | main 260X270X145MM |
| heater head 120x60x105mm | |
| Coil pipe size | OD 2.0mm ID1.4mm |
| Net weight | 10.8KG |
Machine Features:
1. It adopts the most advanced MOSFET, Siemens and particular second generation inversion technical.
2. It could adjust the power time in heating retain and advance the quality and repeatability of heating, predigest the operation technical for worker.
3. Easy installation, it can be used once it is connected with single phase (220V) power supply, induction coil as well as water supply pipe and rising pipe.
4. It is small in size and light in weight, easy operation, you could learn in several minute, also it’s very safe. Output power lower then 36V, elimination of high voltage.
5. Heating efficiency will over 95%, as compared with vacuum tube high frequency equipments, it can save the power by approximately 70%.
6. The induction coil could free dismounting and change more convenience. Fast heating speed and it could reduce the workpiece will be oxidation and transmutation
7 All digital control front panel system for the machine, it is more easy to compatible other machines work together by PLC.
Application:
A. Welding of big and small gears of hard alloy saw blade;
B. Welding and annealing of spectacle frame and fittings;
C. Welding of jewelleries, clock and watch;
D. Electric industry (tin and silver soldering of fine wire, various electronic elements);
H. Toy industry (tempering for wind spring and thin metal sheet)
G. Welding of cutting tools as well as tempering for paper cutter and shoe knife blade;
E. Electromechanical industry (silver and braze welding of fine metal joints as well as quench tempering for mini motor shaft);
F. Wire material industry (annealing of wire material and sheet band);
After-sale service:
1. Warranty time: Within 18 months from the date of delivering, 12months from date of receiving.
2. Within warranty all parts are free for customer, any fault caused by non artificial reason, any quality problems such as design,
manufacture, or procedure occurs, We shall provide replacement parts after detecting the faults.
3. If any big quality problems occurs out of the guarantee period, we will send maintenance
technician to provide visiting service after checking with the customer and charge for a favorable price.
5. We will provide a lifetime cost price to the buyer with the materials and spare parts used in system operation, equipment
maintenance.
6. The above mentioned are only basic aftersale service requirements,we will make more promises related to quality assurance and operation guarantee.
