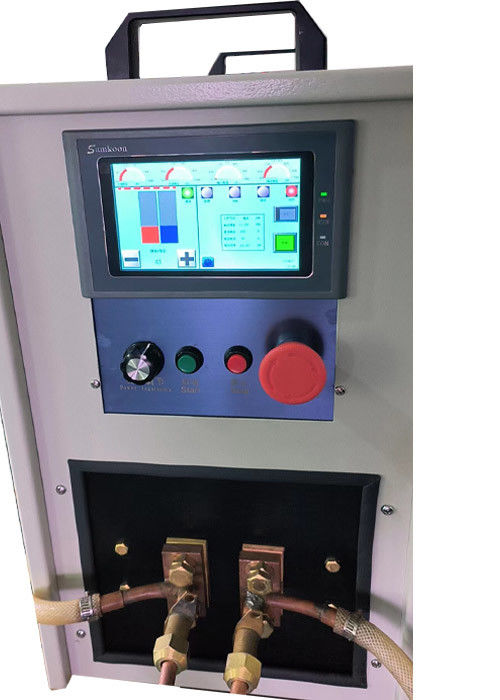

Digital Display IGBT Inverter Induction Heating Equipment 40KW DSP Control

DSP Control +IGBT Inverter + Digital Display I+3M Coaxial Cables Induction heating equipment 40KW:

•
• General Parameters of 3M Coaxial Cables Induction heating equipment:

• Type	DSP-40KW
  Work power	3×380V(415V,440V,480V)50-60HZ
  The range of operating voltage	340V-430V(370-480)V AC
  Output Fluctuating power	40kw
  Fluctuating frequency	80-200KHZ
  Max Input Current	60A
  Timing (Heat time, Retain time , Cool time)	1-99S
  The flow rate of cooling water	0.08-0.16 Mpa 6L/Min
  Water temperature protection point	40℃
  Duty cycle	100%(40degree room temperature)

• DSP Contorl  induction heating equipment:
  A new generation of intelligent induction heating equipment: digital circuit control, high precision temperature control, precise control of the IGBT over-zero point in the switching state, automatic tracking of the resonant frequency of the main circuit, which can automatically adapt to the load according to changes in the workpiece to ensure that the circuit is in a resonant state, making the output of the whole equipment extremely efficient.
  Intelligent induction heating equipment has the following characteristics:
  1: the core part of the control: generally using the world's most advanced high-speed digital signal processor (HDSP), and the use of special chips as an auxiliary processor.
  2: Inverter parts, generally using the use of high-efficiency fast resonance control mode, inverter efficiency greater than 95%, the host power factor greater than 0.9.
  3: the equipment has a combination of air-cooled and water-cooled design structure.
  4: control mode: all digital high efficiency fast resonance, can adapt to various parameters of the inductor, intelligent equipment power supply is generally built-in digital PID temperature control module.
  The power supply for intelligent equipment generally has a built-in digital PID temperature control module.
  5: with IO interface: analog output, analog input, IO output and IO input interface, RS232 or RS485 communication interface.
  6: Communication interface can be connected to special data logger.
  7: Power adjustment: steplessly adjustable from 0% to 100%, with a resolution of 0.1 % or 0.01%, with an output stability of
  The output stability is 0.3% or 0.025%.

• Saving features
  Fast heating, high production efficiency, low oxidation and decarburisation, savings in material and finished product costs　
  Environmental features
     Excellent working environment, improved working environment for workers and company image, no pollution, low energy consumption　
  Precise features
     Uniform heating, very small temperature difference in the core table, high precision of temperature control Induction heating whose heat is generated within the workpiece itself so that the heating is uniform and the temperature difference in the core table is very small. The application of temperature control system can achieve precise control of temperature to improve product quality and qualification rate.
  Other features
     The heating device has the advantages of small size, light weight, high efficiency, excellent thermal processing quality and favourable environment.

Appliccation Photos :

•
  .
