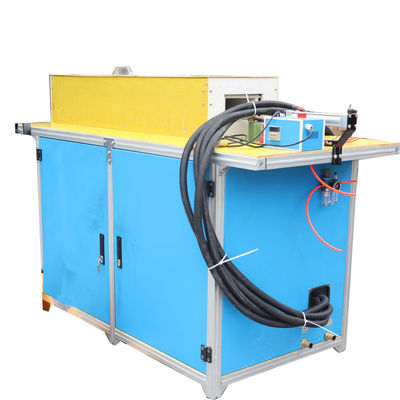

Product Details:
|
| Name: | Induction Forging Heater | Applications: | Hot Foring ,Surfact Heat Treatment ,Quenching , Welding . And So On |
|---|---|---|---|
| Power Supply: | 160KW | Cooling System: | Water Cooling |
| Test Reports: | Provide | Induction Coil: | According To Your's Workpieces To Design |
| Forging Objects: | Standard Parts, Fasteners, Automobile And Motorcycle Parts, Tools, Gears, Large Steel Pipes | Cooling: | Water Cooling System |
| Highlight: | 430V Hot Forging Machine,160KW Hot Forging Machine,Water Cooling Induction Forging Furnace |
||
Induction Hot Forging machine manfacturer supply best price:
The forge heater is characterised by its compact construction. The converters are integrated into the infrastructure or installed in a separate cabinet. Thanks to their extreme compactness and flexibility, induction heaters can be seamlessly integrated into the production process.
These machines are used for the forging and heating of billets, camshafts, steering joints, suspension components, half-shafts, short shafts, axles, gears, racks, chainrings, machine tools and cutting tools.
The Parameters of Induction forging machine :
| Type | DSP-160KW |
| Work Power | 3*380v/415v/440v/480v 50-60hz |
| The range of operating voltage | 340-430V AC |
| Output power | 200KW |
| Input current | 240A |
| Fluctuating frequency | 10-40khz |
| Timing (Heat time,Retain time,Cool time) | 1-9999S |
| The flow rate of cooling water | 0.15 Mpa 25L/Min |
| Water temperature protection point | 40centidegree |
| Duty cycle | 100% (40degree room temperature) |
| Weight | Mainparts:198Kg Transformer:155kg |
| Size | Main Parts:740*600*1400MM Transformer: 790*450*670MM |
Features of Diathermy Forging Machine:
1)The product is controlled by newest software, and the degree of digitization is 100%, which is fundamentally different from fake digital products in the market.
2)The whole system implements double closed-loop adjustment, and can adopt two working modes of constant voltage and constant current, with overvoltage, overcurrent, and intermediate frequency conversion.
3)Multiple protection functions such as phase, inverter failure, and insufficient water pressure.
4)The device starts up by discharging first and then tracking the natural frequency to ensure 100% success rate of device startup.
5)The sequence logic of the equipment is controlled by PLC, and the operating status of the equipment can be known at any time through the display, and fault indication can be provided.
6)The inverter trigger system of the equipment adopts the constant back pressure time control method to ensure that the power supply runs under high power factor and other advantages.
7)The inverter circuit is equipped with a unique current-limiting inductor and pulse trigger module, which can ensure the long-term reliability of the equipment.
8)All the equipment cooling pipes adopt stainless steel faucet for live connection, which is very convenient and quick to disassemble and assemble.
9)The optional water temperature control system implements temperature monitoring and protection for each waterway. Once the water temperature is over-temperature, the equipment will automatically stop running.
Application of Diathermy Forging Machine:
Hot penetration forming of large-size standard parts, fasteners, automobile and motorcycle parts, tools, gears, large steel pipes; hot rolling of steel, welding of large metal materials; metal material forging, smelting, precision casting, heat treatment, etc. Forging, smelting and precision casting of common and precious metal materials.
|
|
|
|
|
|
Complementary Products:
|
|
| Automatic discharging of cake material | Automatic discharging of bar material |
|
|
| Automatic delivery of cakes | Hydraulic shears |
