Product Details:
|
| Production Name: | Induction Gold Melting Furnace Equipment | Work Power: | 220V, 230V, 240V 50-60hz 380Vx3Phase |
|---|---|---|---|
| Output Power: | 15KW | Input Current: | 36A |
| Fluctuating Frequency: | 30-100khz | Timing (Heat Time,Retain Time,Cool Time): | 1-99S |
| Highlight: | IGBT Inverter Induction Gold Melting Furnace,100khz Induction Gold Melting Furnace,230V Industrial Induction Heating Machine |
||

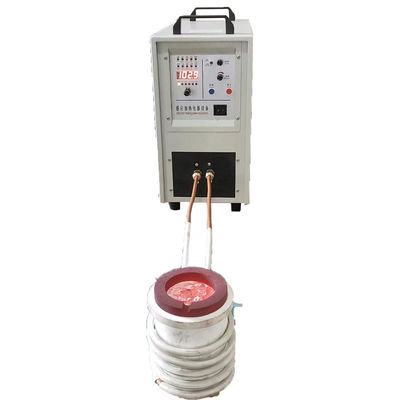

Hot sales High Frequency Induction melting Gold furnace machine for1KG -5KG(HF-15KW)
Product Description:
Induction melting is a process where metal is melted into liquid form in the crucible of an induction furnace. The molten metal is then poured from the crucible, usually into a mould. Evolgy has developed solutions within a variety of areas such as precious metals, tilting furnace melting, investment casting and lab applications.
Medium and high frequency gold melting furnaces can be customised at any time for special melting furnaces for the jewellery industry, melting (gold, silver, copper, platinum, palladium, etc.) 1-50 kg at a time, up to 2 minutes/furnace, stability tank level 24 hours a day.
Induction melting furnace Features:
1. All solid IGBT frequency power adjustment, a unique cooling circulation system, ensure that the equipment 24hours of continuous work.
2. Automatically adjust the heating power and heating time, manual adjustment is available.
3. With constant current/ constant power control ability.
4. Small and light body (floor space less than 1 square meter), easy to move to another place.
5. No danger working, safe operation, available for many situations like factory, school, home, and research institution, etc.
6. High security, with various protection as over voltage protection, over and current protection, insufficient water protection over heating protection and other self-protection. safe and reliable.
7. 100% continuous duty cycle - 24hours working ability under full loading.
8. Environment friendly, low pollution and noise.
9. Digital automatic control, easily understand the work condition from the indicator lights and figures.
10. Cost-effective high frequency induction heating machine, one set can be used for many application, though changing the induction heating coils.
Technical specifications
| Type | HF-15AB/15A |
| Work Power | 220V,230V,240V 50-60hz 380V*3Phase |
| The range of operating voltage | 200-260VAC 340-430V |
| Output power | 15KW |
| Input current | 36A |
| Fluctuating frequency | 30-100khz |
| Timing (Heat time,Retain time,Cool time) | 1-99S |
| The flow rate of cooling water | 0.15 Mpa 7.6L/Min |
| Water temperature protection point | 40centidegree |
| Duty cycle | 100% (40degree room temperature) |
| Weight | 36Kg |
| Size | Main Parts:640*280*550mm |
Induction Heating machines are application in area:
