CE And ROHS Medium Frequency Induction Melting Machine With 200KG Furnace

CE And ROHS Manufacturer Supply Medium Frquency Induction melting machine with 200KG Melting furnace:

About Induction heating machine :

     Induction heating is a process which is used to bond, harden or soften metals or other conductive materials. For modern manufacturing processes, induction heating offers an attractive combination of speed, consistency, control and energy efficiency.

   The basic principles of induction heating have been understood and applied to manufacturing since the 1920s. During World War II, the technology developed rapidly to meet urgent wartime requirements for a fast, reliable process to harden metal engine parts.

   More recently, the focus on lean manufacturing techniques and emphasis on improved quality control have led to a rediscovery of induction technology, along with the development of precisely controlled, all solid state induction power supplies.

How induction heating works?

   When an alternating electrical current is applied to the primary of a transformer, an alternating magnetic field is created. According to Faraday’s Law, if the secondary of the transformer is located within the magnetic field, an electric current will be induced.

   In a basic induction heating setup, a power supply sends an AC current through an inductor (often a copper coil), and the part to be heated (the workpiece) is placed inside the inductor. The inductor serves as the transformer primary and the part to be heated becomes a short circuit secondary. When a metal part is placed within the inductor and enters the magnetic field, circulating eddy currents are induced within the part.

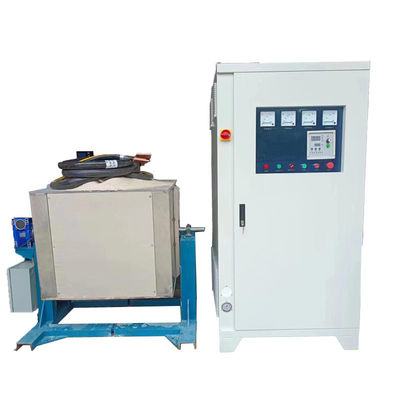

Induction melting furnace equipment photos :

Fetures:

1. Adopts all-solid-state power conversion module Siemens IGBT technology.

2. With full range of protection features such as: over-current, water shortages, overheating, over-voltage, short circuit, lack of protection, greatly improving the reliability of the equipment and convenient equipment maintenance.

3. Portable, Small, space-saving,light weight,eacy to move.

4. No need debug, After connectting through electrical&water can be used.

5. Easy operation, suitable for factory, family, institute & Laboratory smelting experiments

6. Can melt various kinds of metals.

7. 24 hours continuous smelting capacity.

Melting metal meterials : steel, stainless steel, iron, copper, aluminum, aluminum alloy, gold, silver.

​

Type	MF-300KW -200KG
Work Power	3*380v/415v/440v/480v 50-60hz
The range of operating voltage	340-430V AC
Output power	300KW
Input current	450A
Capacity	200KG
Work temperature	0-1850ºC
Melting time	fast
Fluctuating frequency	1-20khz
Timing (Heat time,Retain time,Cool time)	1-99S
Cooling system	water cooling
Water temperature protection point	40centidegree
Duty cycle	100% (40degree room temperature)

​
