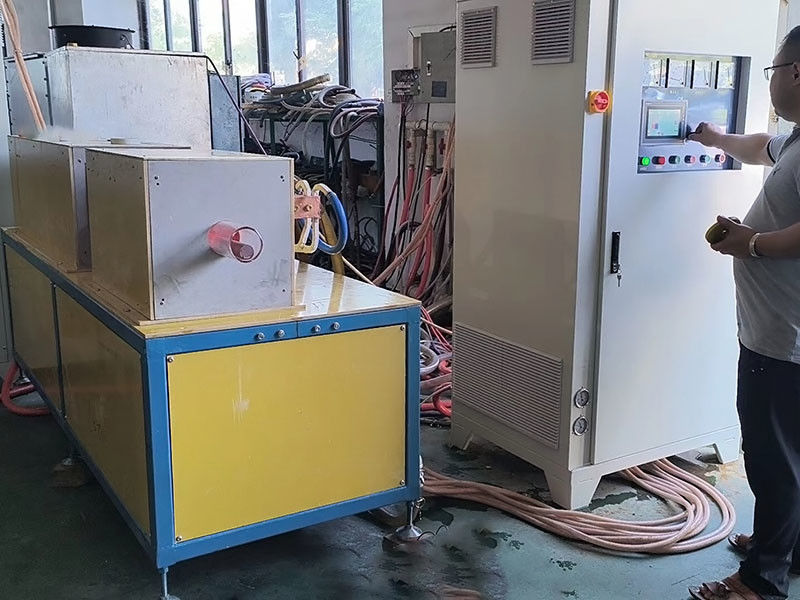

Electricity 600KW Induction Forging Furnace With Water Cooling System For Gears

Product Description:

    The working principle of forging heating furnace:
Forging heating furnace using electromagnetic induction heating principle, the forging blanks into the inductor (coil), when the inductor into a certain frequency of alternating current, that is, around the alternating magnetic field. Electromagnetic induction of the alternating magnetic field so that the workpiece to produce a closed induction current - eddy current. The distribution of induced current in the cross-section of the workpiece is very uneven, the surface layer of the workpiece current density is very high, gradually decreasing inward, this phenomenon is known as the skin effect. Workpiece surface layer of high-density current of electrical energy into thermal energy, so that the temperature of the surface layer increases, that is, to realize the heating of forging blanks.

Features:

• Product Name: Induction Forging Furnace
• Cooling system: Water Cooling System
• Temperature Range: High
• Control System: Computerized
• Heating Speed: Fast
• Design: Customized
• Application: Shaft head and end forging equipment, Hardware parts forging equipment, Hardware parts forging equipment

Technical Parameters:

Applications:

  Forging heating furnace roughly categorized:
1, forging heating furnace from the heating mode for the cycle, sequential and continuous three categories:
a, cyclic forging heating furnace: each time the furnace to place a charge, heating is completed out of the furnace and then put down a cold material.
b, sequential forging heating furnace: furnace at the same time there are more than one charge, the inlet end to send in a new material, the outlet end to give a temperature to meet the requirements of the hot material, according to a certain beat sequence for heating.
c,Continuous forging heating furnace: the charge passes through the furnace at a certain constant speed to meet the heating requirements.

2,Forging heating furnace is divided into non-magnetic material heating and magnetic material heating from the material of the furnace:
a, forging heating furnace non-magnetic material heating, such as aluminum extrusion before heating, copper forging before heating and steel by forging heating furnace heating to Curie point above the induction heating.
b, forging heating furnace magnetic material heating, mainly for iron, nickel, cobalt-based alloy materials, to the temperature of the steel in the Curie point below the heating is common, such as steel Lan crisp under the material, the surface of the antioxidant treatment, the material and machine parts of the induction annealing (low temperature) and tempering.
Forging heating furnace from magnetic to non-magnetic the entire heating process, mainly refers to the steel from room temperature to the forging temperature or quenching temperature of the heating, high-power furnace segmented heating of the low-temperature section and the steel in the use of dual-frequency heating of the low-temperature heating section (in the Curie point below the relatively low-frequency section) and so on.
3, forging heating furnace from the shape of the charge is divided into cylindrical, rectangular cross-section, hollow, plate, strip, profiles and other structures and shapes.
4, forging heating furnace from the furnace structure is divided into vertical furnace and horizontal furnace, vertical furnace is mostly used for large and heavy charge heating, generally more for the cycle type.
5, forging heating furnace from the power supply is divided into high-frequency, medium-frequency furnace and industrial frequency heating, the current medium-frequency furnace heating mostly. Due to the development of power supply, the frequency band increases, in order to improve the rationality of the heating, and now the use of dual-frequency and triple-frequency power supply heating began to be popularized.

Customization:

We provide customized services for OURUIDA Induction Forging Furnace with Model Number DSP-MF-600KW. This product comes from China and it is certified with CE, SGS, ROHS, ISO, EU. The minimum order quantity is 1 and the price is negotiable. We package the product in customized export wooden boxes. The delivery time is 3-15 days and payment terms are T/T. We have the ability to supply 1000 units per month. The voltage range is 340V-480V, 3PHASE and the power supply is 600KW. Certifications will be provided. The control system is computerized and the heating method is forging. We also specialize in providing Induction Forging machine at competitive prices, forging equipment for rail fittings, and Gears Hot Forging machine. All our products have passed rigorous quality testing to ensure maximum customer satisfaction.

Support and Services:

Packing and Shipping:

Packaging and Shipping of Induction Forging Furnace

Induction Forging Furnace will be packaged in a wooden crate that is secured with multiple layers of anti-corrosive wrapping and metal straps. The package will be designed to withstand the rigors of international shipping while protecting the contents from damage during transit. The package will be clearly labeled with the manufacturer, product name, and serial number.

The Induction Forging Furnace will be shipped via sea freight with a reliable freight carrier. The package will be insured to cover any potential damage or loss during transit. The customer will be provided with a tracking number and will be able to track the package online.
