Customizable IGBT Induction Quenching Equipment to Industrial Parts Processing and Production

Customizable IGBT Induction Quenching Equipment to Industrial Parts Processing and Production:

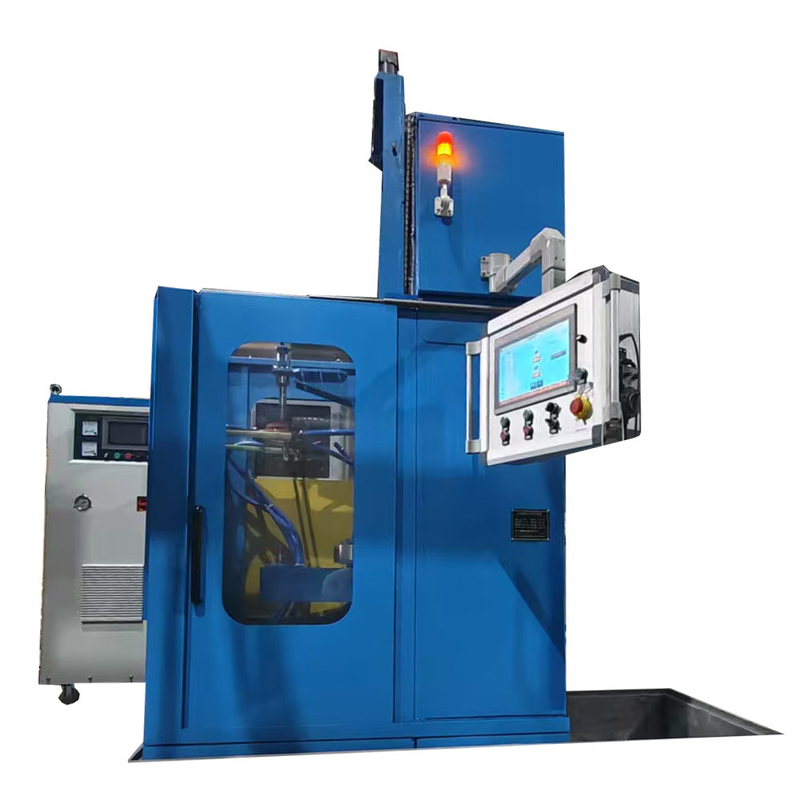

INDUCTION QUENCHING MACHINE :

Induction hardening is a specialized heat treatment process utilized to increase the durability and hardness of metal components with a high carbon content. By heating these parts in an induction field and rapidly cooling them through quenching in water, oil, or air, this method ensures enhanced surface wear resistance while maintaining the inherent mechanical properties of the metal.

Our state-of-the-art induction heat-treating technology offers precise control over the hardening process, allowing for targeted heating up to pre-determined temperatures. This ensures process repeatability and consistent quality in every batch, making it ideal for components requiring superior surface hardness and longevity.

Tailored Hardening System from Expert Engineers

At Our factory, we understand that every hardening challenge is unique. Our team of experienced engineers is committed to providing a free evaluation of your application, offering expert advice tailored to your specific production needs. We also specialize in designing and manufacturing custom induction coils that maximize the efficiency and effectiveness of your hardening process.

INDUCTION QUENCHING MACHINE ADVANTAGE :

1. **High Efficiency & Energy Savings**
Rapid Heating**: Induction heating generates heat directly within the workpiece via electromagnetic fields, achieving levels in seconds significantly reducing production cycles.
Energy Concentration**: Only the target area (e.g., shaft surfaces) is heated, minimizing heat loss. Energy consumption is **30-50% lower** than traditional furnace hardening.

2. **Precise Control**
Temperature & Time Regulation**: Parameters like current frequency, power, and duration can be adjusted to control hardening depth (e.g., **0.5-5mm surface layer**) and hardness distribution.
Automation Compatibility**: Integrates with PLC or CNC systems for automatic parameter adjustments (e.g., real-time induction coil positioning based on workpiece size).

3. **Superior Surface Quality**
No Oxidation/Decarburization**: Fast heating minimizes exposure to oxygen, preserving material integrity (ideal for high-carbon steels).
Uniform Hardness**: Optimized coil designs (e.g., helical or segmented coils) ensure consistent hardness, even on curved surfaces (e.g., crankshaft fillets with hardness variation ≤±5 HRC).

4. **Flexibility**
Complex Geometries**: Handles intricate shapes (e.g., gear teeth, cam profiles) and large components (e.g., wind turbine shafts).
Multi-Process Support**: Compatible with post-quench tempering, composite hardening, and other hybrid processes.

5. **Cost & Environmental Benefits**
Reduced Operating Costs**: Eliminates secondary processes (e.g., deep freezing for stress relief) and reduces waste (no oil/water quenchants).
Eco-Friendly**: No smoke, wastewater, or chemical emissions, aligning with green manufacturing standards.
Long Equipment Lifespan**: Water-cooled induction coils minimize wear and maintenance costs.

Comparison with Traditional Furnace Hardening
Typical Applications
1. **Automotive**: Gear teeth, axles, and universal joints (hardness up to HRC 60).
2. **Aerospace**: Turbine shafts and landing gear components.
3. **Tools**: Drill bits, molds, and cutting tools (extended tool life).


THE TECHNICAL PARAMTERS OF DSP-200KW

​

Type	DSP-200KW
Work Power	3*380v/415v/440v/480v 50-60hz
The range of operating voltage	340-430V AC
Output power	200KW
Input current	300A
Fluctuating frequency	10-40khz
Timing (Heat time,Retain time,Cool time)	1-9999S
The flow rate of cooling water	0.15 Mpa 25L/Min
Water temperature protection point	40centidegree
Duty cycle	100% (40degree room temperature)
Weight	Mainparts:198Kg Transformer:155kg
Size	Main Parts:740*600*1400MM Transformer: 790*450*670MM

Induction heating machine applications

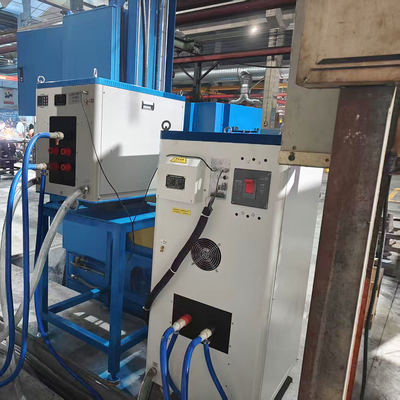

​Our Factory photo :
