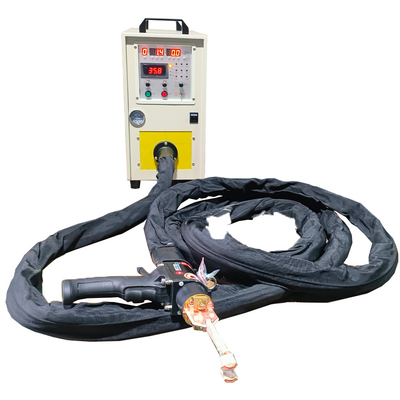

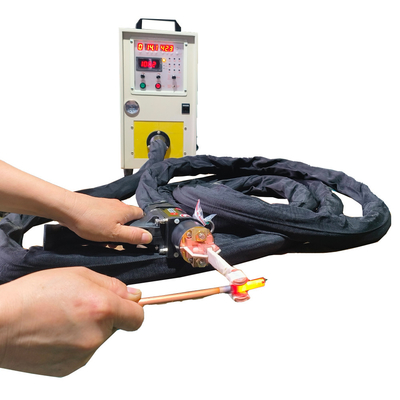

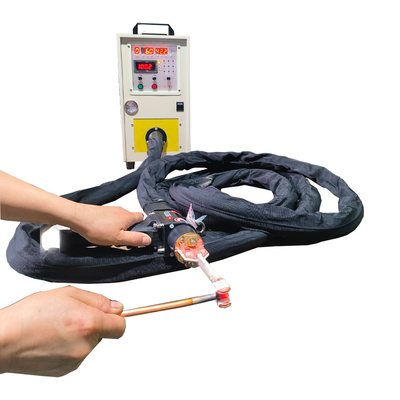

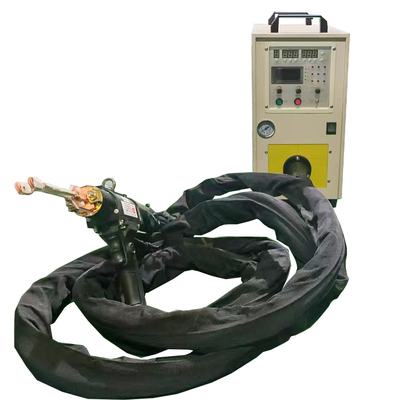

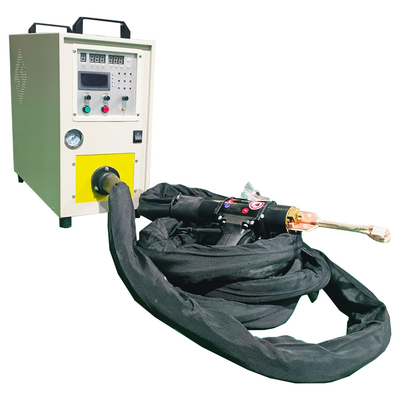

Handheld IGBT Induction Brazing machine for Welding Brass Corner Joint / Cooper Connectors

Handheld IGBT Induction Brazing machine for Welding Brass Corner Joint / Cooper Connectors:

INDUCTION BRAZING MACHINE :

Induction brazing is the process of joining two or more metals using induction heating. Induction heating utilizes the electromagnetic field to provide heat without contact or flame. Induction brazing is more localized, repeatable, and easier to automate compared to traditional torch brazing.

Induction brazing has been around for a long time but is only now coming into wider use due to advancements in induction heating power supplies.
Induction brazing operates on a principle similar to that of a transformer. In this process, the inductor functions as the primary winding, while the component being heated acts as a single-turn secondary winding. This efficient method ensures precise heat application, making it ideal for joining metals with minimal distortion and strong, reliable joints

ADVANTAGES OF INDUCTION BRAZING MACHINE :
1.Precision Heating:
Targets only the joint area, minimizing distortion or damage to surrounding materials. Ideal for intricate parts or heat-sensitive components.
2.Energy Efficiency:
Direct heating reduces energy waste compared to traditional methods (e.g., furnaces). Energy is focused where needed, lowering operational costs.
3.Process Control:
Adjust parameters (frequency, power, time) for consistent, repeatable results. Suitable for high-volume production and tight tolerances.
4.Clean and Safe:
No open flames or fumes, reducing oxidation, contamination, and fire hazards. Ideal for reactive metals or cleanroom environments.5
5.Fast Cycle Times:
Rapid heating shortens production cycles, improving efficiency and throughput.
6.Versatility:
Works with conductive metals (e.g., steel, aluminum, copper) and accommodates complex geometries. Compatible with various filler materials.
7.Reduced Thermal Stress:
Localized heating minimizes heat-affected zones, preserving material properties and reducing warping.
8.Automation-Friendly:
Easily integrated into automated systems for consistent, high-volume output.
9.Cost-Effective:
Lower labor costs, reduced scrap rates, and energy savings contribute to long-term ROI.
10.Environmentally Friendly:
Minimal waste and reduced reliance on fluxes/chemicals (in many cases), supporting sustainable manufacturing.

THE TECHNICAL OF INDUCTION BRAZING MACHINE HHF-25KW

​

Type	HHF-25KW
Work power	3*380V(415V,440V,480V)50-60HZ
The range of operating voltage	340V-430V(370-480)V AC
Output power	25KW
Fluctuating frequency	30-80KHZ
Max Input Current	25A-28A
Timing (Heat time, Retain time , Cool time)	1-99S
The flow rate of cooling water	0.08-0.16 Mpa 9L/Min
Water temperature protection point	40ºC
Duty cycle	100%(40degree room temperature)
Weight	45Kg +5KG
Size	600*230*500MM

​APPLICATION OF BRAZING PHOTOS:
