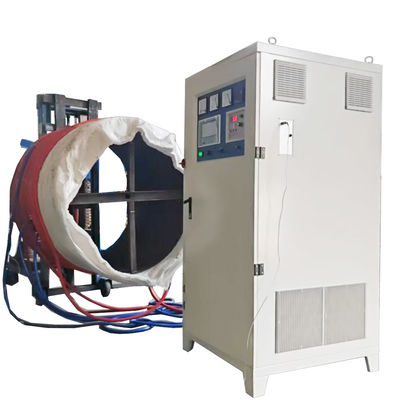

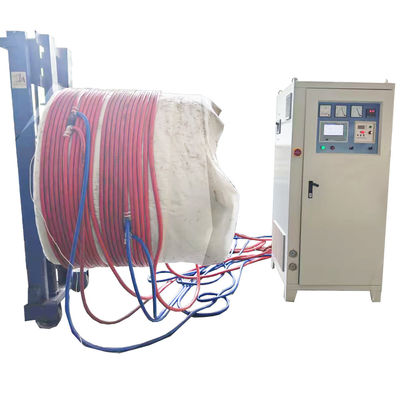

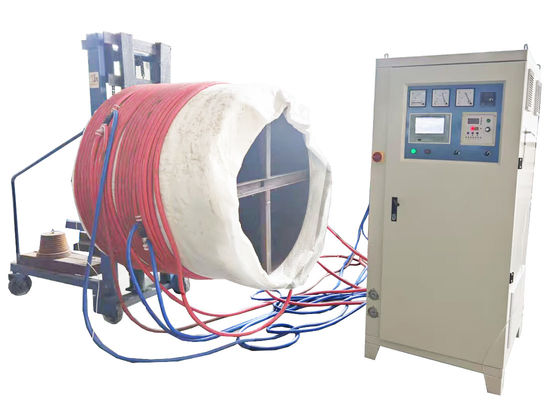

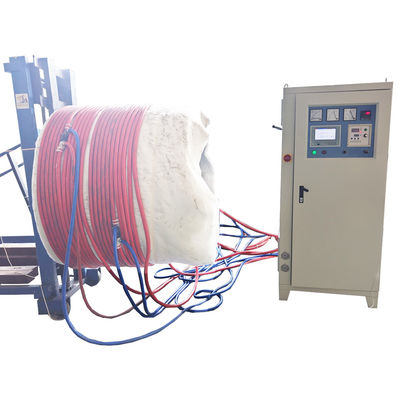

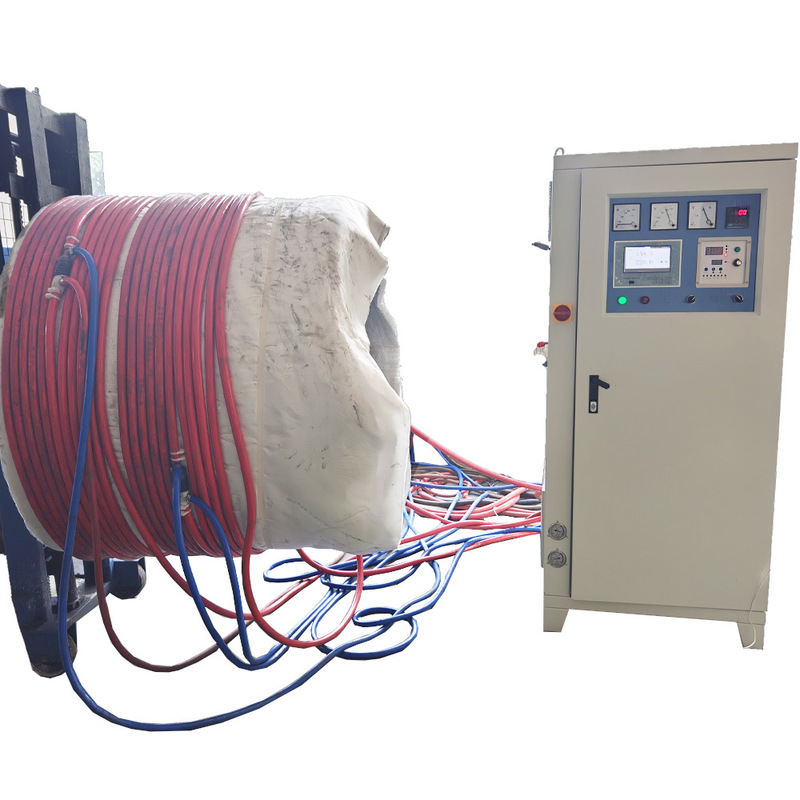

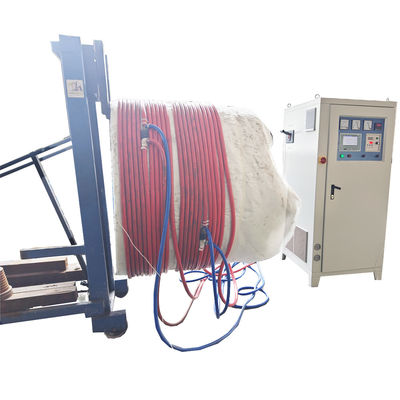

Supplier sales Induction heating machine for Preheating pipeline processing (MF-400KW )

Supplier sales Induction heating machine for Preheating pipeline processing (MF-400KW )

Features:
1). Control core: the use of the world's most advanced high-speed digital signal processor (HDSP), and use the ACME developed special chip as an auxiliary processor.
2). A new generation of IGBT or MOSFET as the main inverter devices, combined with fast and efficient way to control the resonant inverter efficiency greater than 95%, the host power factor greater than 0.9.
3). Air-cooled, water-cooled or dual combination of making the device more suitable for a variety of industry applications.
4). Equipment using fast and efficient resonant all-digital control, so that it can adapt to various parameters of the sensor, work in the most efficient state. Full range of power built-in digital
Word type PID temperature control module, including user-programmable thermostat curve technology, built-in 2-way 6-channel temperature or temperature.
5). Built-in programmable engineering applications IO interfaces: analog output, analog input, IO and IO input output interface, RS232 or RS485 communication interface.
6). Communication interface can be connected to a dedicated data logger.
7). Power is adjusted by stepless adjustment method, can be adjusted from 0% to 100%, using a resolution of 0.1% or 0.01% Class level, stable output of 0.3%, or 0.025%.
8). Control interface using English display, the display using the 2.7 ", 5.5" or 7.0 ", depending on the application level to choose
9). Optional wired, or wireless controller away (with LED display).
