High Frequency Induction Heater
>
30-80kHz High Frequency Induction Heater with 100% Duty Cycle and Horizontal Type Design
All Category

Industrial Induction Heating Machine

Portable Induction Heating Machine

Induction Heating Equipment

High Frequency Induction Heater

Medium Frequency Induction Heating Machine

Ultra High Frequency Induction Heating Machine

Induction Hardening Machine

Induction Melting Furnace

Induction Quenching Machine

Induction Forging Furnace

Induction Forging Machine

PWHT Machine

Induction Annealing Equipment

Induction Brazing Machine

Induction Soldering Machine

Induction Heat Treatment Equipment

Air Cooled Water Chiller

Infrared Thermometer
Contact Us
Ms. Joanna Bao
Joannabao@ordheater.com
+8613549425605
wechat Joanna8608
Contact Now

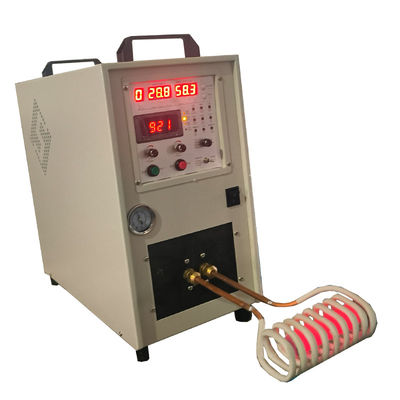

30-80kHz High Frequency Induction Heater with 100% Duty Cycle and Horizontal Type Design
  • name
  • name
  • name
  • name
  • name

30-80kHz High Frequency Induction Heater with 100% Duty Cycle and Horizontal Type Design

MOQ: 1
Price: 0.1
Detail Information
Product Description
Detail Information
Certification:
CE, ISO, RoHS, SGS.....
Model NO.:
HF-25KW
Type:
Induction Heating Machine
Structure:
Horizontal Type
Power:
25kw
Frequency:
30-80kHz
Working Time:
1-99s
Work Voltage:
380V, 400V, 415V, 440V, 480V
Water Temperature Protection:
40c
Structure Material:
Metal Material
Heat Transfer Surface:
Tubular Heat Exchanger
Input Current:
28A
Cooling Water Flow:
0.15 Mpa 18L/Min
Duty Cycle:
100% (40degree Room Temperature)
Weight:
Mainparts:38Kg Transformer: 25Kg
Size:
Main Parts:600*350*600MM Transformer: 550*300*500MM
Highlight:

30-80kHz High Frequency Induction Heater

,

100% Duty Cycle Induction Heating Machine

,

Horizontal Type Induction Heating Equipment

Product Description
High Frequency Induction Heating Tube Machine (HF-25KW)

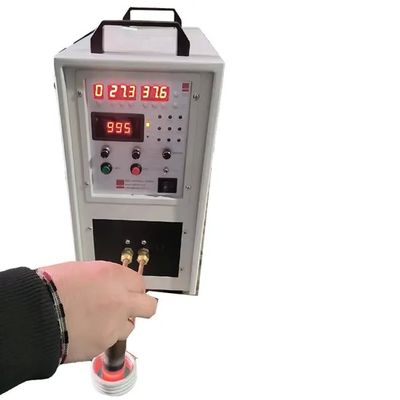

30-80kHz High Frequency Induction Heater with 100% Duty Cycle and Horizontal Type Design 0
Induction Heating Technology
Induction heating is an advanced process used for bonding, hardening, or softening metals and conductive materials. This technology offers manufacturers exceptional speed, consistency, control, and energy efficiency in modern production environments.
Originally developed in the 1920s and rapidly advanced during World War II, induction heating has seen renewed focus due to lean manufacturing requirements and quality control improvements. Modern solid-state induction power supplies provide precise control for industrial applications.
How Induction Heating Works
The process utilizes alternating electrical current applied to a transformer primary (typically a copper coil), creating an alternating magnetic field. When a metal workpiece is placed within this field, it becomes a short circuit secondary, inducing circulating eddy currents that generate heat within the material.

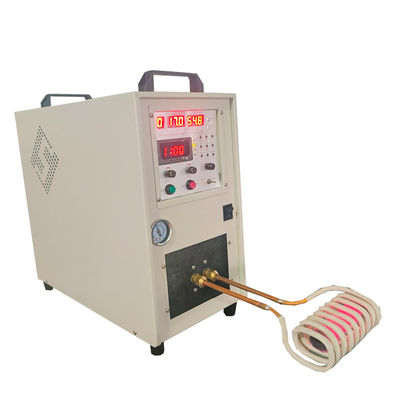

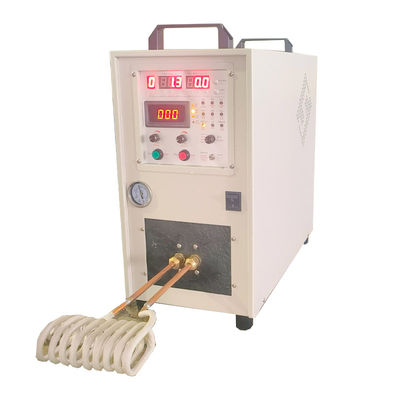

30-80kHz High Frequency Induction Heater with 100% Duty Cycle and Horizontal Type Design 1 30-80kHz High Frequency Induction Heater with 100% Duty Cycle and Horizontal Type Design 2
Key Advantages
  • 25+ years manufacturing experience ensuring stable performance
  • CE certified for quality assurance
  • Trusted by major manufacturers including CHOW TAI FOOKS, Matsushita, Foxconn, and Gree
  • Versatile applications: heating, quenching, forging, melting, and soldering
  • Dual transformer ratios for optimal coil matching
  • Premium components: Siemens IGBT and IXYS Bridge
  • DELIXI switch for reliable operation
Main Characteristics
  • Infineon IGBT module with third-generation inverting technology for enhanced reliability
  • 100% duty cycle allows continuous maximum power operation
  • Real-time display of heating power, current, and frequency
  • Simple installation requiring minimal technical expertise
  • Compact and lightweight design
  • Programmable timer for precise batch production control
  • Separated models available for challenging environments
  • Heating time adjustable from 1-999S or 0.1-99.9S
  • Integrated water pressure meter for cooling system monitoring
  • 20-30% energy savings compared to SCR machines
  • Comprehensive protection system (overheat, overcurrent, voltage protection, etc.)
  • Four distinct working modes for flexible operation

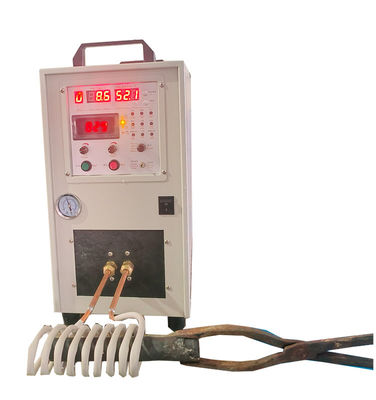

30-80kHz High Frequency Induction Heater with 100% Duty Cycle and Horizontal Type Design 3 30-80kHz High Frequency Induction Heater with 100% Duty Cycle and Horizontal Type Design 4 30-80kHz High Frequency Induction Heater with 100% Duty Cycle and Horizontal Type Design 5
Technical Specifications
Type HF-25KW
Work Power 3*380v/415v/440v/480v 50-60hz
Operating Voltage Range 340-430V AC
Output Power 25KW
Input Current 28A
Frequency Range 30-80kHz
Timing Range 1-99S
Cooling Water Flow Rate 0.15 Mpa 18L/Min
Water Temperature Protection 40°C
Duty Cycle 100% (at 40°C room temperature)
Weight Main unit: 38Kg, Transformer: 25Kg
Dimensions Main unit: 600*350*600mm, Transformer: 550*300*500mm
30-80kHz High Frequency Induction Heater with 100% Duty Cycle and Horizontal Type Design 6
Investment Security & Benefits
Our extensive industry experience ensures successful implementation of your heating solution. We provide comprehensive presales services to guarantee optimal equipment selection for your specific requirements.
Customized Solutions: Our engineering team tailors each system to meet exact application needs while maintaining rigorous quality standards.
Flexible Implementation: We adapt to all customer specifications, developing innovative solutions to enhance production efficiency.
Process Improvement: Upgrading to our high-frequency induction systems increases energy efficiency, installation reliability, production uptime, and quality control.
Energy Efficiency: Our IGBT/Mosfet technology generators achieve up to 95% efficiency with advanced digital control systems.
Cost Reduction: Our designs minimize power consumption, operational costs, maintenance expenses, and changeover times while extending inductor lifespan.
