25KW High Frequency Induction Heater with 30-80kHz Range and 100% Duty Cycle for Metal Processing
All Category

Industrial Induction Heating Machine

Portable Induction Heating Machine

Induction Heating Equipment

High Frequency Induction Heater

Medium Frequency Induction Heating Machine

Ultra High Frequency Induction Heating Machine

Induction Hardening Machine

Induction Melting Furnace

Induction Quenching Machine

Induction Forging Furnace

Induction Forging Machine

PWHT Machine

Induction Annealing Equipment

Induction Brazing Machine

Induction Soldering Machine

Induction Heat Treatment Equipment

Air Cooled Water Chiller

Infrared Thermometer
Contact Us
Ms. Joanna Bao
Joannabao@ordheater.com
+8613549425605
wechat Joanna8608
Contact Now
25KW High Frequency Induction Heater with 30-80kHz Range and 100% Duty Cycle for Metal Processing
  • name
  • name
  • name
  • name
  • name

25KW High Frequency Induction Heater with 30-80kHz Range and 100% Duty Cycle for Metal Processing

MOQ: 1
Price: 1
Detail Information
Product Description
Detail Information
Certification:
CE, ISO, RoHS, SGS
Model NO.:
HF-25KW
Type:
Induction Heating Machine
Structure:
Vertical Type
Power:
25kw
Frequency:
30-80kHz
Work Power:
3*380V/415V/440V/480V 50-60Hz
Operating Voltage:
340-430V AC
Input Current:
25A
Timing Range:
1-99s
Water Temperature Protection:
40centidegree
Weight:
42kg
Size:
640*280*550mm
Cooling Water Flow:
0.15 Mpa 9L/Min
Duty Cycle:
100%
Output Power:
25KW
Highlight:

30-80kHz Induction Heater

,

100% Duty Cycle Induction Heater

,

25KW High Frequency Induction Heater

Product Description
HF-25KW Induction Heating Machine for Metal Processing

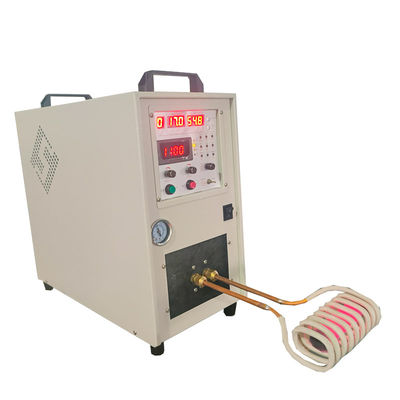

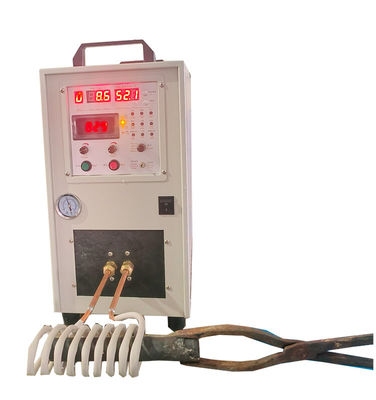

25KW High Frequency Induction Heater with 30-80kHz Range and 100% Duty Cycle for Metal Processing 0 25KW High Frequency Induction Heater with 30-80kHz Range and 100% Duty Cycle for Metal Processing 1

Induction heating is an advanced process used for bonding, hardening, or softening metals and other conductive materials. This HF-25KW machine offers manufacturers an optimal combination of speed, consistency, control, and energy efficiency for modern production requirements.

The technology behind induction heating has been refined since the 1920s, with significant advancements during World War II for hardening metal engine parts. Today's solid-state induction power supplies deliver precise control for quality-focused manufacturing.

How Induction Heating Works

When alternating current passes through the primary coil (inductor), it creates a magnetic field. The metal workpiece placed within this field acts as a secondary circuit, generating eddy currents that produce heat through electrical resistance.

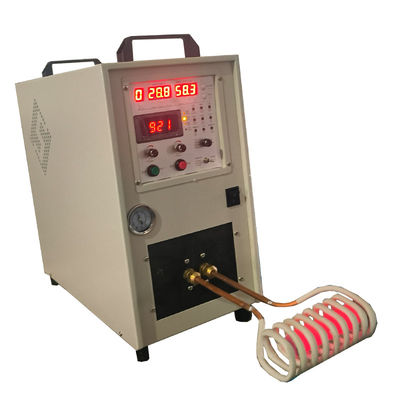

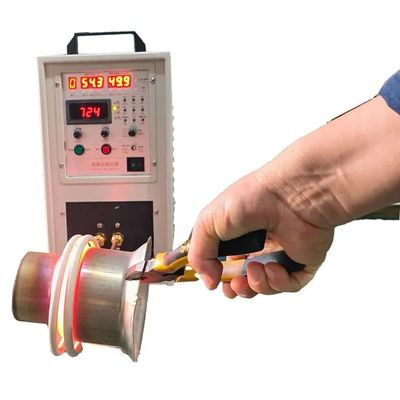

25KW High Frequency Induction Heater with 30-80kHz Range and 100% Duty Cycle for Metal Processing 2 25KW High Frequency Induction Heater with 30-80kHz Range and 100% Duty Cycle for Metal Processing 3
Key Features
Infineon IGBT module with 3rd generation inverting technology for enhanced reliability
100% duty cycle allows continuous operation at maximum power
Clear displays for heating power, current, and oscillating frequency
Simple installation requiring minimal technical expertise
Compact and lightweight design
Programmable timer for batch production consistency (1-999s or 0.1-99.9s)
Separated models available for challenging environments
Integrated water pressure meter for cooling system monitoring
20-30% energy savings compared to SCR machines
Comprehensive protection system (overheat, overcurrent, voltage issues, phase fail, water lack)
Four distinct working modes for flexible operation
Technical Specifications
Type HF-25AB/25A
Work Power 3*380v/415v/440v/480v 50-60hz
Operating Voltage Range 340-430V AC
Output Power 25KW
Input Current 32A
Frequency Range 30-80kHz
Timing Range 1-99S
Cooling Water Flow 0.15 Mpa 9L/Min
Temperature Protection 40°C
Duty Cycle 100% (at 40°C room temperature)
Weight Main parts: 42Kg
Dimensions Main Parts: 640*280*550mm

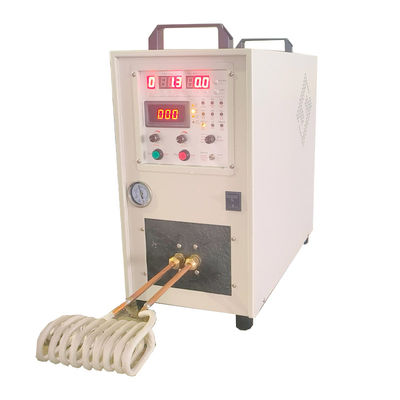

25KW High Frequency Induction Heater with 30-80kHz Range and 100% Duty Cycle for Metal Processing 4
Applications
25KW High Frequency Induction Heater with 30-80kHz Range and 100% Duty Cycle for Metal Processing 5 25KW High Frequency Induction Heater with 30-80kHz Range and 100% Duty Cycle for Metal Processing 6 25KW High Frequency Induction Heater with 30-80kHz Range and 100% Duty Cycle for Metal Processing 7 25KW High Frequency Induction Heater with 30-80kHz Range and 100% Duty Cycle for Metal Processing 8
Customer Feedback
25KW High Frequency Induction Heater with 30-80kHz Range and 100% Duty Cycle for Metal Processing 9
Comprehensive Service Support
Pre-Sale Services:
Custom machine recommendations based on requirements
Technical consultation and inquiry support
Sample testing assistance
Factory visit arrangements
In-Sale Services:
Manufacturing to strict technical standards
Comprehensive equipment testing
Quality inspection before delivery
Guaranteed on-time delivery
After-Sale Services:
18-month warranty from delivery date (12 months from receipt)
Free replacement of non-artificial defect parts
Post-warranty technical support at favorable rates
Lifetime cost-price spare parts availability
Additional quality and operation guarantees
