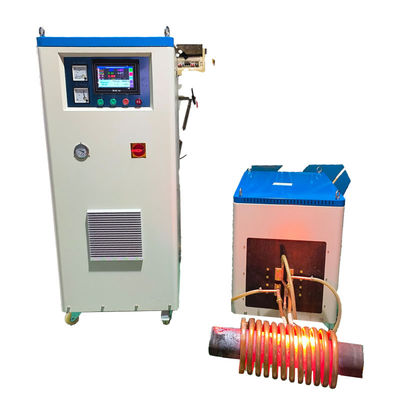

200KW Output Power IGBT Induction Hardening Machine with 20-50kHz Fluctuating Frequency and 100% Duty Cycle
  • name
  • name
  • name
  • name
  • name

200KW Output Power IGBT Induction Hardening Machine with 20-50kHz Fluctuating Frequency and 100% Duty Cycle

MOQ: 1
Detail Information
Product Description
Detail Information
Model NO.:
SF-200KW
Operating Voltage:
340-430V AC
Output Power:
200kw
Input Current:
300A
Fluctuating Frequency:
20-50kHz
Timing Range:
1-99s
Cooling Water Flow:
5ton/H
Water Protection Temp:
40centidegree
Heating Principle:
Induction Heating
Structure Material:
Metal Material
Heat Transfer Surface:
Tubular Heat Exchanger
Duty Cycle:
100%
Main Parts Weight:
KG
Transformer Parts Weight:
KG
Main Parts Size:
880*600*1350MM
Transformer Parts Size:
780*450*700MM
Highlight:

200KW Output Power IGBT Induction Hardening Machine

,

20-50kHz Fluctuating Frequency Induction Heating Equipment

,

100% Duty Cycle High Frequency Induction Heater

Product Description
Factory Supply IGBT Induction Hardening Machine to Quenching a Steel Fitting (SF-200KW)
200KW Output Power IGBT Induction Hardening Machine with 20-50kHz Fluctuating Frequency and 100% Duty Cycle 0
INDUCTION HEATING MACHINE
Induction heating is a process used to bond, harden or soften metals or other conductive materials. For modern manufacturing, induction heating offers an attractive combination of speed, consistency, control and energy efficiency.
The basic principles of induction heating have been applied to manufacturing since the 1920s. During World War II, the technology developed rapidly to meet urgent wartime requirements for hardening metal engine parts.
Recently, the focus on lean manufacturing and improved quality control has led to a rediscovery of induction technology, along with the development of precisely controlled, all solid state induction power supplies.
How Induction Heating Works
When an alternating electrical current is applied to the primary of a transformer, an alternating magnetic field is created. According to Faraday's Law, if the secondary of the transformer is located within the magnetic field, an electric current will be induced.
In a basic induction heating setup, a power supply sends an AC current through an inductor (often a copper coil), and the part to be heated (the workpiece) is placed inside the inductor. The inductor serves as the transformer primary and the part becomes a short circuit secondary. When a metal part enters the magnetic field, circulating eddy currents are induced within the part.
200KW Output Power IGBT Induction Hardening Machine with 20-50kHz Fluctuating Frequency and 100% Duty Cycle 1
200KW Output Power IGBT Induction Hardening Machine with 20-50kHz Fluctuating Frequency and 100% Duty Cycle 2
200KW Output Power IGBT Induction Hardening Machine with 20-50kHz Fluctuating Frequency and 100% Duty Cycle 3
Main Characteristics
  • Infineon IGBT module and Inverting technologies of third generation used for higher reliability and lower maintenance cost
  • 100% Duty cycle, allowing continuous working at maximum power output
  • Option to select constant current or constant power status for higher heating efficiency
  • Displays heating power, heating current and oscillating frequency
  • Simple installation that can be done by unprofessional personnel
  • Lightweight design
  • Timer model allows preset power and operating time for heating/retain periods, ideal for batch production
  • Separated models designed for dirty environments
  • Main part controls two transformers with automatic operation via AC contactor
200KW Output Power IGBT Induction Hardening Machine with 20-50kHz Fluctuating Frequency and 100% Duty Cycle 4
Applications
200KW Output Power IGBT Induction Hardening Machine with 20-50kHz Fluctuating Frequency and 100% Duty Cycle 5
200KW Output Power IGBT Induction Hardening Machine with 20-50kHz Fluctuating Frequency and 100% Duty Cycle 6
200KW Output Power IGBT Induction Hardening Machine with 20-50kHz Fluctuating Frequency and 100% Duty Cycle 7
200KW Output Power IGBT Induction Hardening Machine with 20-50kHz Fluctuating Frequency and 100% Duty Cycle 8
Technical Specifications
Type SF-200KW
Work power 3*380V(415V,440V,480V)50-60HZ
Operating voltage range 340V-430V(370-480)V AC
Output power 200 KW
Input current 300A
Fluctuating frequency 20-50KHZ
Timing (Heat time, Retain time, Cool time) 1-99S
Cooling water flow rate 5TON/H
Water temperature protection point 40°C
Duty cycle 100% (40°C room temperature)
Weight Main parts: KG
Transformer parts: KG
Size Main Parts: 880*600*1350MM
Transformer Parts: 780*450*700MM
200KW Output Power IGBT Induction Hardening Machine with 20-50kHz Fluctuating Frequency and 100% Duty Cycle 9
Service Support
Pre-sale Service
  • Recommend the most suitable machine according to customer requirements
  • Inquiry and consulting support
  • Sample testing support
  • Factory viewing available
In-sale Service
  • Manufacture according to relevant technical standards
  • Perform run tests according to equipment test run regulations
  • Strict quality checks before delivery
  • Guaranteed on-time delivery
After-sale Service
  • Warranty: 18 months from delivery date or 12 months from receiving date
  • All parts free for replacement during warranty for non-artificial faults
  • For major quality issues after warranty, we provide visiting service at favorable price
  • Lifetime cost price for materials and spare parts
  • Additional quality assurance and operation guarantees available
