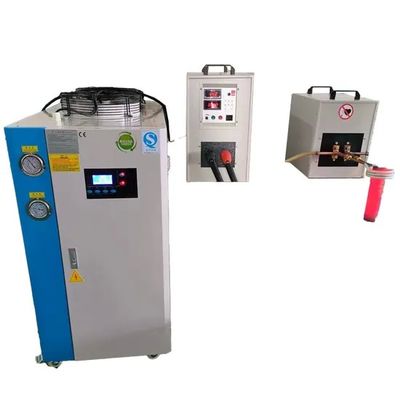

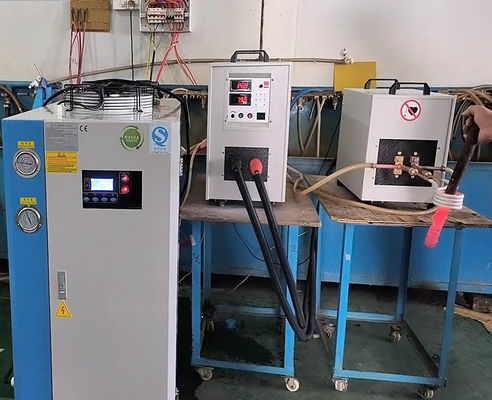

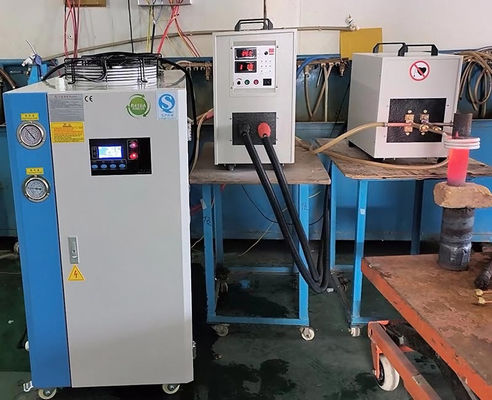

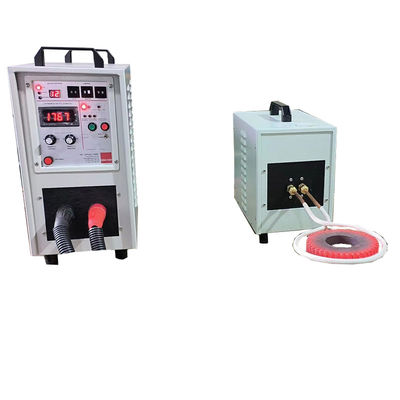

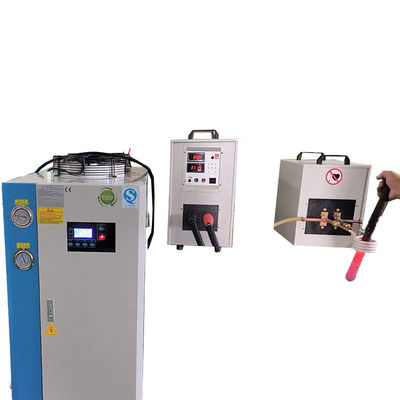

40KW High Frequency Induction Heater with 20-100kHz Range and 100% Duty Cycle for Automotive Manufacturing

Induction heating is a process used to bond, harden or soften metals or other conductive materials. For modern manufacturing processes, induction heating offers an attractive combination of speed, consistency, control and energy efficiency.

The basic principles of induction heating have been understood and applied to manufacturing since the 1920s. During World War II, the technology developed rapidly to meet urgent wartime requirements for a fast, reliable process to harden metal engine parts.

More recently, the focus on lean manufacturing techniques and emphasis on improved quality control have led to a rediscovery of induction technology, along with the development of precisely controlled, all solid state induction power supplies.

When an alternating electrical current is applied to the primary of a transformer, an alternating magnetic field is created. According to Faraday's Law, if the secondary of the transformer is located within the magnetic field, an electric current will be induced.

In a basic induction heating setup, a power supply sends an AC current through an inductor (often a copper coil), and the part to be heated (the workpiece) is placed inside the inductor. The inductor serves as the transformer primary and the part to be heated becomes a short circuit secondary. When a metal part is placed within the inductor and enters the magnetic field, circulating eddy currents are induced within the part.

• More than 22 years experience, stable and good performance
• CE certificated
• Cooperated with CHOW TAI FOOKS, Matsushita, Foxconn, Media, Gree and ZHIGAO Air conditioner
• Suitable for a large range of applications: heating, quenching, forging, melting, soldering
• 2 Transformer ratios for more connection options with induction coil
• Coaxial Connection Flexible, can handle workpieces that normal coils cannot reach

• Infineon IGBT module and Inverting technologies of third generation used for higher reliability and lower maintenance cost
• 100% Duty cycle, continuous working allowed at maximum power output
• Display of heating power, heating current and oscillating frequency
• Simple to install, can be done by unprofessional person very easily
• Light weight design
• Timer model advantages: Power and operating time of heating/retain periods can be preset for batch production to improve repeatability
