CE Certified IGBT High Frequency Induction Heater with 160KW Output Power and 20-50kHz Fluctuating Frequency for Engine Block Parts Heat Treatment
  • name
  • name
  • name
  • name

CE Certified IGBT High Frequency Induction Heater with 160KW Output Power and 20-50kHz Fluctuating Frequency for Engine Block Parts Heat Treatment

MOQ: 1
Detail Information
Product Description
Detail Information
Model NO.:
SF-160KW
Material:
Copper, Aluminum, Iron, Tungsten Steel, High Speed Steel, Carbon Steel, Alloy Steel
Type:
Surface Heat Treatment
Work Power:
3*380V/415V/440V/480V 50-60Hz
Operating Voltage:
340-430V AC
Output Power:
200kw
Input Current:
300A
Fluctuating Frequency:
20-50kHz
Timing Range:
1-99s
Cooling Water Flow:
5ton/H
Water Temperature Protection:
40centidegree
Duty Cycle:
100% (40degree Room Temperature)
Main Parts Weight:
KG
Transformer Parts Weight:
KG
Main Parts Size:
880*600*1350MM
Transformer Parts Size:
780*450*700MM
Highlight:

160KW Output Power Induction Heater

,

20-50kHz Fluctuating Frequency Induction Heating Machine

,

100% Duty Cycle IGBT Induction Heater

Product Description
CE IGBT Super High Frequency Induction Heating Machine for Engine Block Parts Heat Treatment
This advanced induction heating machine is specifically designed for heat treatment of engine block components including crankshafts, camshafts, valves, and starting rings. Certified with CE standards, it delivers superior performance for industrial manufacturing applications.

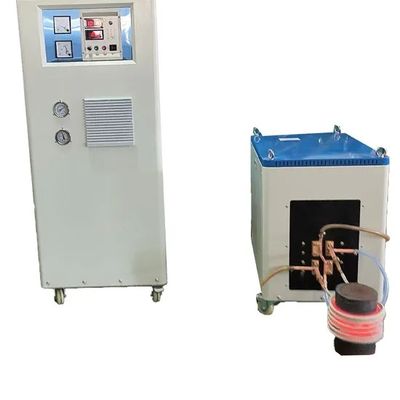

CE Certified IGBT High Frequency Induction Heater with 160KW Output Power and 20-50kHz Fluctuating Frequency for Engine Block Parts Heat Treatment 0
Induction Heating Technology
Induction heating is an efficient process for bonding, hardening, or softening metals and conductive materials. This technology offers unmatched speed, consistency, control, and energy efficiency for modern manufacturing processes.
The fundamental principles of induction heating have been refined since the 1920s, with significant advancements during World War II for hardening metal engine components. Today's solid-state induction power supplies deliver precise control for superior results.
How Induction Heating Works
When alternating current passes through an inductor (typically a copper coil), it creates a magnetic field. The workpiece placed within this field acts as a secondary circuit, generating eddy currents that produce heat through electrical resistance.

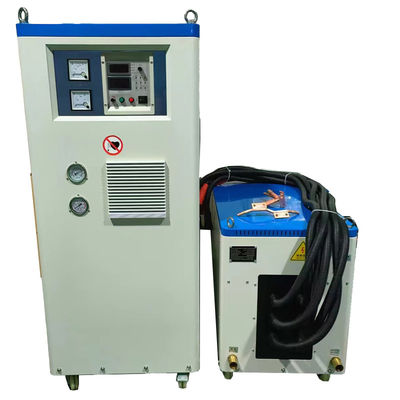

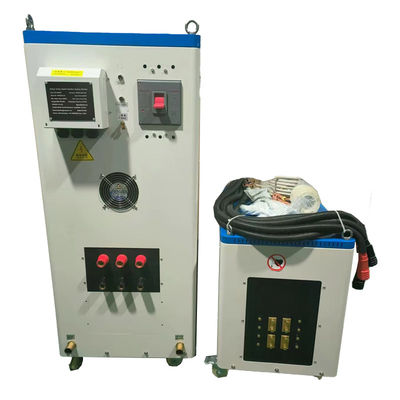

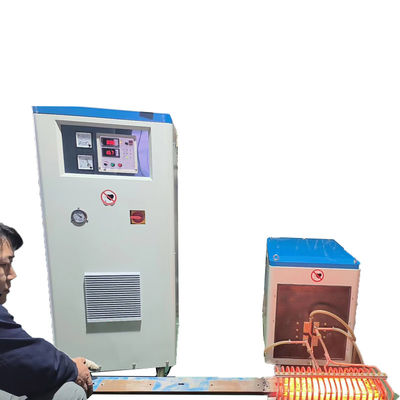

CE Certified IGBT High Frequency Induction Heater with 160KW Output Power and 20-50kHz Fluctuating Frequency for Engine Block Parts Heat Treatment 1 CE Certified IGBT High Frequency Induction Heater with 160KW Output Power and 20-50kHz Fluctuating Frequency for Engine Block Parts Heat Treatment 2 CE Certified IGBT High Frequency Induction Heater with 160KW Output Power and 20-50kHz Fluctuating Frequency for Engine Block Parts Heat Treatment 3
Key Features
  1. Utilizes Infineon IGBT module and third-generation inverting technology for enhanced reliability and reduced maintenance costs
  2. 100% duty cycle allows continuous operation at maximum power output
  3. Selectable constant current or constant power modes for optimal heating efficiency
  4. Displays heating power, current, and oscillating frequency for precise control
  5. Simple installation process requiring minimal technical expertise
  6. Compact and lightweight design for easy handling
  7. Timer function enables preset power and operating times for consistent batch production
  8. Separated models available for operation in challenging environments
  9. Main control unit operates two transformers with automatic switching capability

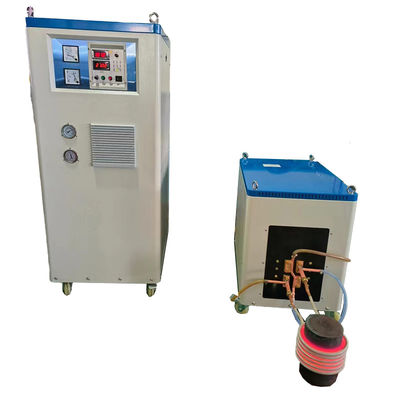

CE Certified IGBT High Frequency Induction Heater with 160KW Output Power and 20-50kHz Fluctuating Frequency for Engine Block Parts Heat Treatment 4
Technical Specifications
Type SF-160KW
Work power 3*380V(415V,440V,480V)50-60HZ
Operating voltage range 340V-430V(370-480)V AC
Output power 160 KW
Input current 240A
Fluctuating frequency 20-50KHZ
Timing (Heat/Retain/Cool time) 1-99S
Cooling water flow rate 5TON/H
Water temperature protection 40°C
Duty cycle 100% (40°C room temperature)
Weight Main parts: KG
Transformer parts: KG
Dimensions Main Parts: 880*600*1350MM
Transformer Parts: 780*450*700MM
Customer Service
Pre-Sale Services
  • Customized machine recommendations based on specific requirements
  • Comprehensive inquiry and consulting support
  • Sample testing assistance
  • Factory visit arrangements
In-Sale Services
  • Manufacturing to strict technical standards
  • Comprehensive equipment testing prior to delivery
  • Thorough quality inspection before shipment
  • Guaranteed on-time delivery
After-Sale Services
  • 18-month warranty from delivery date or 12-month from receipt
  • Free replacement of all non-artificial defect parts during warranty
  • Technical support for major quality issues beyond warranty period
  • Lifetime cost-price supply of materials and spare parts
CE Certified IGBT High Frequency Induction Heater with 160KW Output Power and 20-50kHz Fluctuating Frequency for Engine Block Parts Heat Treatment 5
