120KW 30-80kHz Full Digital High Frequency Induction Heating Machine with DSP Control

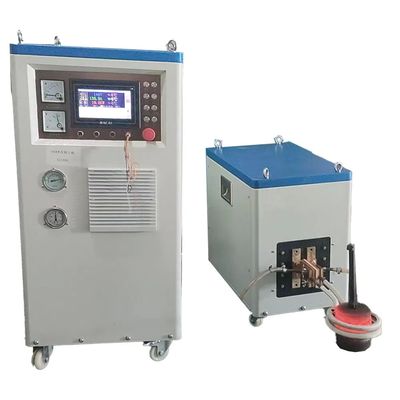

Large Image : 120KW 30-80kHz Full Digital High Frequency Induction Heating Machine with DSP Control

Product Details:

Certification:	CE, ISO, RoHS

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	5000

Contact Now

120KW 30-80kHz Full Digital High Frequency Induction Heating Machine with DSP Control

Description

Power:	120kw	Frequency Range:	30-80kHz, 20-50kHz
Work Power:	3*380V/415V/440V/480V 50-60Hz	Operating Voltage:	340-430V AC
Circuit Type:	DSP Digital	Air Switch:	400A
Control Method:	Infineon IGBT	Input Current:	180A
Water Temp Protection:	40°C	Main Unit Size:	600740140mm
Transformer Size:	790450670mm	Main Unit Weight:	160kg
Transformer Weight:	165kg	Cooling Water Flow:	0.15-0.3Mpa
Output Power:	120KW
Highlight:	120KW Induction Heating Machine , 30-80kHz High Frequency Induction Heater , Full Digital Induction Heating Machine

DSP-Hf-120kw Full Digital High Frequency Induction Heating Machine

30-80KHZ DSP-120KW Full Digital High Frequency Induction Heating Machine/Induction Hardening Machine

Technical Parameters

Model	DSP-HF-120KW
Work Power	380V/415V/440V/480V*3phase 50HZ-60HZ
Input Current	180A
Fluctuating Output Power	120KW
Fluctuating Frequency	30-80KHZ
Flow Rate of Cooling Water	0.15-0.3Mpa
Water Temperature Protection Point	40°C
Product Size	Main: 740x600x1550 mm Transformer: 980x450x670 mm
Net Weight	Main: 160 kg Transformer: 165KG

Key Features

The integrated modular induction heating equipment manufactured by our company is the newest high-tech product formed by adopting the most advanced power electronic power devices and unique converter control technology in the world with reasonable structure design.

Uses digital signal processing (DSP) digital real-time high-speed signal processor and DDS (Direct Digital Synthesizer) direct digital frequency synthesizer. Infineon IGBT type.
Advanced digital control technology and digital phase-locked loop tracking technology ensure safe, reliable, and stable performance with simple operation.
Imported integrated circuit and power module for automatic frequency tracking. Features small size, light weight, high efficiency, energy saving, and high reliability.
Fast heating speed with high efficiency. Easy temperature and time control ensures heating quality and running water operation.
Visual digital display of voltage, current, frequency, power, heating time, and heating temperature.
Predictable power setting before heating with high accuracy - a unique feature not available in similar products.
Friendly man-machine interface with multiple display options (LED indicator, digital tube, touch screen, text screen).
Hardware isolation interface compatible with existing PLC systems for easy functional transformation and automation expansion.
Remote communication interface capability.
Emergency stop button for immediate equipment shutdown in critical situations.
Optimized internal component layout with main control circuit board centralized to minimize interference and improve control accuracy.
Remote control function with digital circuit control allowing power adjustment from 0% to 100% resolution.
Adjustable transformer for connecting different induction coils, suitable for various workpieces.

Advantages Compared to SCR Parallel Induction Heating Machine

Infineon IGBT type - Saves 20-30% electricity compared to SCR parallel type
Series Resonance IGBT type machine does not interfere with other equipment and requires no special input transformer
Easy to use - no main board adjustments or capacitor connection changes required for different workpieces
Pre-debugged for immediate use after delivery
Digital display of frequency, power, and current on touch screen for easy monitoring and control
23 years of manufacturing experience ensures stable performance and strict quality control
Built-in water pressure and temperature meters

Applications

Hot Forging

Hardening

Quenching

Tempering

Melting

Soldering

Brazing

Welding
