Handheld High Frequency Induction Heating Machine with Coaxial Flexible Connection 2m 50kw Actual Power and 380V-480V Work Voltage

Large Image : Handheld High Frequency Induction Heating Machine with Coaxial Flexible Connection 2m 50kw Actual Power and 380V-480V Work Voltage

Product Details:

Certification:	CE, ISO, RoHS

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	3500

Contact Now

Handheld High Frequency Induction Heating Machine with Coaxial Flexible Connection 2m 50kw Actual Power and 380V-480V Work Voltage

Description

Model NO.:	HF-80AB	Actual Power:	50kw
Working Frequency:	30-80kHz	Work Voltage:	380V, 400V, 415V,440V, 480V,220V*3phase 50-60Hz
Input Current:	75A	Fluctuating Power:	80kw
Coaxial Flexible:	2m	Output Power:	80Kw
Fluctuating Frequency:	30-80khz	Timing Range:	1-99S
Cooling Water Flow:	0.15 Mpa 11L/Min	Water Temperature Protection:	40centidegree
Duty Cycle:	100% (40degree Room Temperature)	Weight:	Mainparts:55Kg Transformer:51kg
Size:	Main Parts:640280550MM, Transformer: 510260410MM
Highlight:	Coaxial Flexible Connection 2m Induction Heater , 50kw Actual Power Induction Heating Machine , 380V-480V Work Voltage Induction Heating Equipment

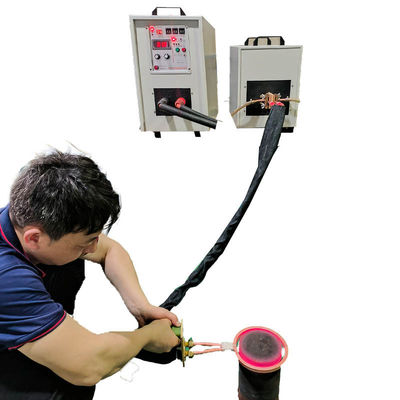

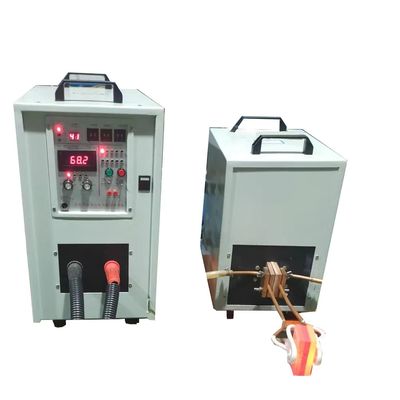

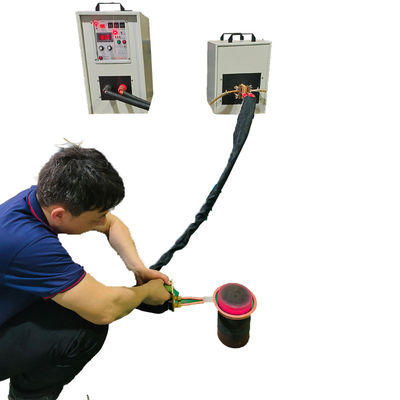

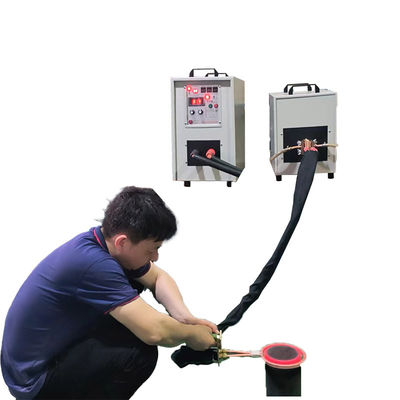

New Handheld High Frequency Induction Heating Machine (HF-80AB)

Main Characteristics

Non-contact heating - the primary characteristic of induction heating technology
Compact size and lightweight design for easy operation by non-professionals
High frequency and rapid heating capability, ideal for quenching, hardening, and soldering applications
Precise temperature control with automation capability for consistent product quality
Safety isolation transformer with output voltage below 36V for operator protection
Infineon IGBT module and third-generation inverting technology for enhanced reliability
100% duty cycle allows continuous operation at maximum power output
Energy efficient design - 20-30% more efficient than SCR machines
Advanced protection system (overheat, overcurrent, voltage protection, phase fail, water shortage)
Timer function for preset power and heating/retention periods, ideal for batch production

Technical Specifications

Type	HF-80AB
Work Power	3*220V/380v/415v/440v/480v 50-60hz
Operating Voltage Range	340-430V AC
Output Power	80Kw
Input Current	75A
Fluctuating Frequency	30-80khz
Timing (Heat/Retain/Cool)	1-99S
Cooling Water Flow Rate	0.15 Mpa 11L/Min
Water Temperature Protection	40°C
Duty Cycle	100% (40°C room temperature)
Weight	Main parts: 55Kg, Transformer: 51kg
Dimensions	Main Parts: 640280550mm, Transformer: 510260410mm
