Digital Display High Frequency Induction Heater with 30-100kHz Frequency and 100% Duty Cycle for In-line Steel Wire Annealing

Digital Display High Frequency Induction Heater with 30-100kHz Frequency and 100% Duty Cycle for In-line Steel Wire Annealing

MOQ:	1
Price:	600

Detail Information

Product Description

Detail Information

Certification:

CE, ISO, RoHS

Model NO.:

DSP-15KW

Type:

Induction Heating Machine

Structure:

Vertical Type

Power:

15kw

Frequency:

30-100kHz

Work Voltage:

220V, 380V, 400V, 415V, 440V, 480V

Display:

Digital Display Screen

Cooling System:

Water Cooling System

Flow Rate:

0.15 MPa 7.6L/Min

Output Frequency:

Depending On The Applications

Input Current:

13A

Timing Range:

1-99S

Water Temperature Protection:

40°C

Duty Cycle:

100% (40°C Room Temperature)

Weight:

Mainparts:35Kg

Size:

Main Parts:640*280*550mm

Highlight:

30-100kHz Frequency Induction Heater

,

100% Duty Cycle Induction Heater

,

Digital Display High Frequency Induction Heater

Product Description

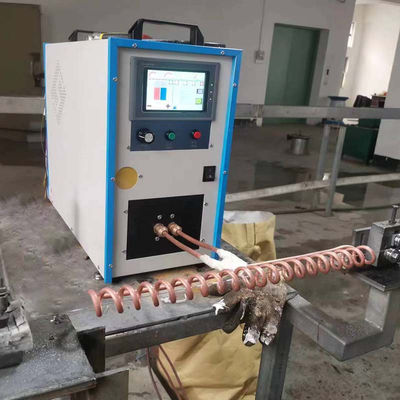

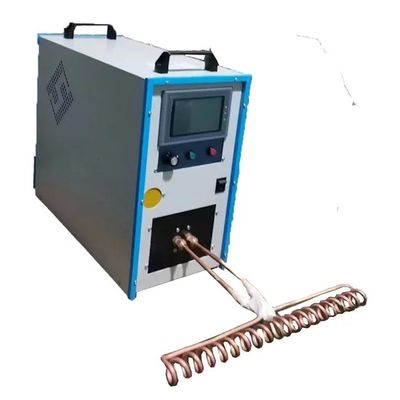

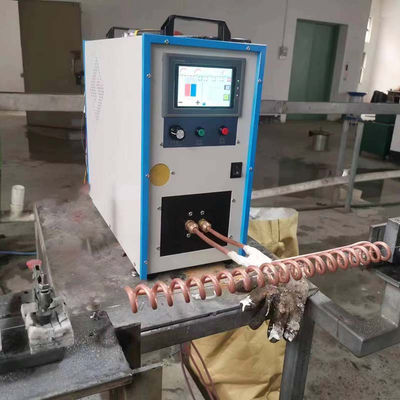

DSP-15KW Digital High Frequency Induction Heating Equipment for In-Line Steel Wire Annealing

Digital Display High Frequency Induction Heater with 30-100kHz Frequency and 100% Duty Cycle for In-line Steel Wire Annealing 0

Digital Display High Frequency Induction Heater with 30-100kHz Frequency and 100% Duty Cycle for In-line Steel Wire Annealing 1

Digital Display High Frequency Induction Heater with 30-100kHz Frequency and 100% Duty Cycle for In-line Steel Wire Annealing 2

Digital Display High Frequency Induction Heater with 30-100kHz Frequency and 100% Duty Cycle for In-line Steel Wire Annealing 3

Digital Display High Frequency Induction Heater with 30-100kHz Frequency and 100% Duty Cycle for In-line Steel Wire Annealing 4

Digital Display High Frequency Induction Heater with 30-100kHz Frequency and 100% Duty Cycle for In-line Steel Wire Annealing 5

Digital Display High Frequency Induction Heater with 30-100kHz Frequency and 100% Duty Cycle for In-line Steel Wire Annealing 6

Key Advantages

Over 21 years of manufacturing experience ensures stable and reliable performance
CE certified for quality and safety standards
Trusted by major manufacturers including CHOW TAI FOOK, Matsushita, Foxconn, Media, Gree, and ZHIGAO Air Conditioner
Versatile applications including heating, quenching, forging, melting, and soldering

Main Characteristics

Utilizes Siemens IGBT module and third-generation inverting technology for higher reliability and lower maintenance costs
100% duty cycle allows continuous operation at maximum power output
Displays heating power, heating current, and oscillating frequency for precise control
Simple installation process requiring minimal technical expertise
Lightweight design for easier handling and installation
Timer model allows preset power and operating times for heating, retain, and cool periods, ideal for batch production to improve repeatability

Technical Specifications

Type	HF-15AB/15A
Work Power	3*380v/415v/440v/480v 50-60hz
Operating Voltage Range	340-430AC
Output Power	15KW
Input Current	13A
Fluctuating Frequency	30-100khz
Timing (Heat/Retain/Cool)	1-99S
Cooling Water Flow Rate	0.15 Mpa 7.6L/Min
Water Temperature Protection	40°C
Duty Cycle	100% (40°C room temperature)
Weight	Main parts: 35Kg
Dimensions	Main Parts: 640280550mm

Digital Display High Frequency Induction Heater with 30-100kHz Frequency and 100% Duty Cycle for In-line Steel Wire Annealing 7

Digital Display High Frequency Induction Heater with 30-100kHz Frequency and 100% Duty Cycle for In-line Steel Wire Annealing 8

Digital Display High Frequency Induction Heater with 30-100kHz Frequency and 100% Duty Cycle for In-line Steel Wire Annealing 9

Comprehensive Service Support

Pre-Sale Services

Recommend the most suitable machine based on customer requirements
Provide inquiry and consulting support
Offer sample testing support
Factory viewing available

In-Sale Services

Manufacture equipment according to relevant technical standards
Conduct run tests following equipment test regulations
Perform strict quality checks before delivery
Ensure timely delivery

After-Sale Services

Warranty period: 18 months from delivery date or 12 months from receiving date
Free replacement of all parts within warranty for non-artificial faults
For major quality issues beyond warranty, provide visiting maintenance service at favorable prices
Lifetime cost price for materials and spare parts used in system operation and maintenance
Additional quality assurance and operation guarantees available
