75A High Frequency Induction Heating Machine with Vertical Type Structure and 23 Years Experience for 24/7 Online Service

MOQ: 1
Price: 3500
Detail Information
Product Description
Detail Information
Certification:
CE, ISO
Model NO.:
HF-80AB
Type:
Induction Heating Machine
Structure:
Vertical Type
Actual Power:
50kw
Working Frequency:
30-80kHz
Work Voltage:
380V, 400V, 415V,440V, 480V,220V*3phase 50-60Hz
Input Current:
75A
Fluctuating Power:
80kw
Output Power:
80Kw
Fluctuating Frequency:
30-80khz
Cooling Water Flow:
0.15 Mpa 11L/Min
Water Temperature Protection:
40centidegree
Duty Cycle:
100% (40degree Room Temperature)
Weight:
Mainparts:55Kg Transformer:51kg
Size:
Main Parts:640*280*550MM Transformer: 510*260*410MM
Highlight:

Vertical Type Induction Heating Machine

,

23 Years Experience High Frequency Induction Heater

,

24/7 Online Service Induction Heating Machine

Product Description
75A High Frequency Induction Heating Machine for Hardening, Quenching, Soldering
Main Characteristics
  • Non-contact heating - the biggest characteristic of induction heating
  • Compact size and lightweight design for easy operation by non-professionals
  • High frequency and rapid heating capability, ideal for quenching, hardening, and soldering
  • Precise temperature control with automation capability for consistent product quality
  • Safety isolation transformer with output voltage below 36V for operator protection
  • Infineon IGBT module and third-generation inverting technologies for reliability
  • 100% duty cycle allows continuous operation at maximum power output
  • Energy efficient - saves 20-30% compared to SCR machines
  • Advanced protection system (overheat, overcurrent, voltage protection, water failure)
  • Timer model enables preset power and heating periods for batch production consistency

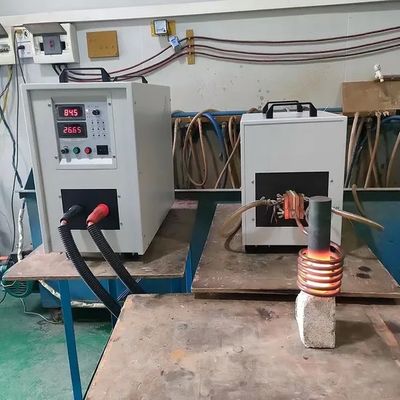

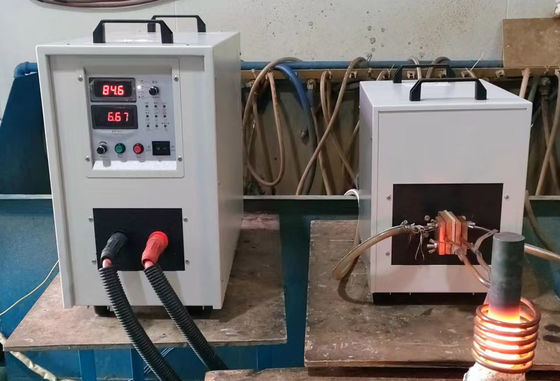

75A High Frequency Induction Heating Machine with Vertical Type Structure and 23 Years Experience for 24/7 Online Service 0 75A High Frequency Induction Heating Machine with Vertical Type Structure and 23 Years Experience for 24/7 Online Service 1
Technical Specifications
Type HF-80AB
Work Power 3*220V/380v/415v/440v/480v 50-60hz
Operating Voltage Range 340-430V AC
Output Power 80Kw
Input Current 75A
Fluctuating Frequency 30-80khz
Timing (Heat/Retain/Cool) 1-99S
Cooling Water Flow Rate 0.15 Mpa 11L/Min
Water Temperature Protection 40°C
Duty Cycle 100% (40°C room temperature)
Weight Main parts: 55Kg, Transformer: 51kg
Dimensions Main Parts: 640*280*550mm, Transformer: 510*260*410mm
Applications
  • Heat treatment for various metals including shafts, gears, and pipes
  • Soldering copper and copper fittings, brass plates, and stainless steel
  • Annealing stainless steel, copper, and aluminum pipes/plates/strips
  • Hot forging for copper, brass fittings, steel bars, and plates
  • Melting gold, silver, platinum, stainless steel, iron, aluminum, zinc, and other metals

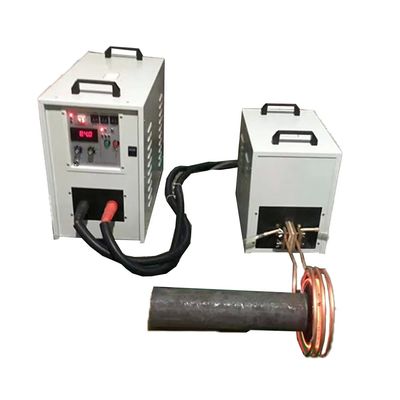

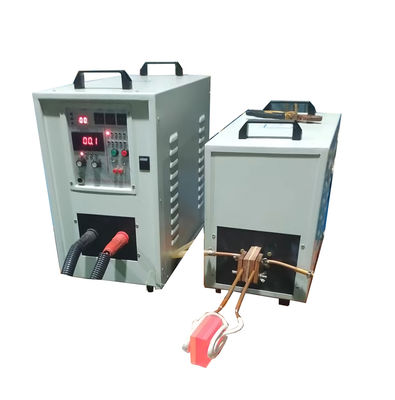

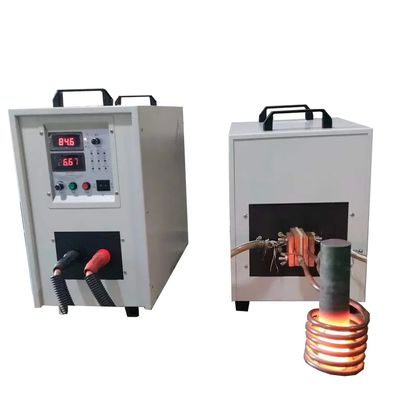

75A High Frequency Induction Heating Machine with Vertical Type Structure and 23 Years Experience for 24/7 Online Service 2 75A High Frequency Induction Heating Machine with Vertical Type Structure and 23 Years Experience for 24/7 Online Service 3 75A High Frequency Induction Heating Machine with Vertical Type Structure and 23 Years Experience for 24/7 Online Service 4
Advantages
  • Fast delivery - typically ships within 1-2 days from stock
  • 23 years of industry experience with CE certification for quality assurance
  • 20-30% energy savings compared to SCR machines
  • 24/7 customer support for immediate problem resolution
  • Brand new Infineon IGBT technology
  • Comprehensive warranty coverage for quality issues
  • Two transformer ratios for flexible connection with different induction coils

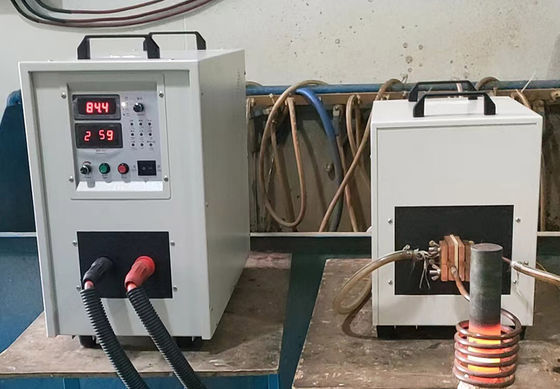

75A High Frequency Induction Heating Machine with Vertical Type Structure and 23 Years Experience for 24/7 Online Service 5 75A High Frequency Induction Heating Machine with Vertical Type Structure and 23 Years Experience for 24/7 Online Service 6 75A High Frequency Induction Heating Machine with Vertical Type Structure and 23 Years Experience for 24/7 Online Service 7 75A High Frequency Induction Heating Machine with Vertical Type Structure and 23 Years Experience for 24/7 Online Service 8 75A High Frequency Induction Heating Machine with Vertical Type Structure and 23 Years Experience for 24/7 Online Service 9 75A High Frequency Induction Heating Machine with Vertical Type Structure and 23 Years Experience for 24/7 Online Service 10 75A High Frequency Induction Heating Machine with Vertical Type Structure and 23 Years Experience for 24/7 Online Service 11
Tags:

SGS High Frequency Induction Heating Machine

30Khz Hardening Equipment for Pipe

80Khz High Frequency Induction Heater Furnace
