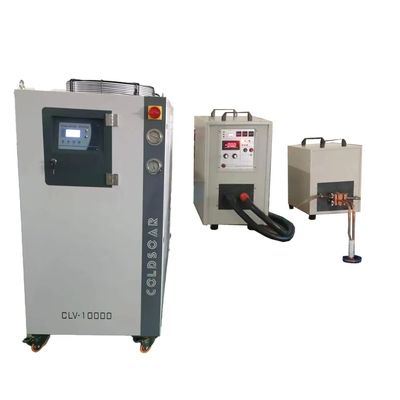

50kW High Frequency Induction Heating Machine with 22 Years Experience and 18 Months Warranty

Brand Name: OURUIDA
Model Number: MF-40KW
MOQ: 1
Price: 3600
Packaging Details: Export Wooden box Packaging
Payment Terms: Western Union, T/T, L/C, D/A, MoneyGram
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
CE, ISO
Model NO.:
HF-80AB
Type:
Induction Heating Machine
Structure:
Vertical Type
Actual Power:
50kw
Input Current:
75A
Frequency:
30-80kHz
Work Voltage:
380V, 400V, 415V, 440V, 480V 50-60Hz
Heating Time:
1-99s
Control Way:
Auto And Manual
IGBT:
Infineon
Output Power:
80KW
Cooling Water Flow:
0.08-0.16 Mpa 9L/Min
Water Temperature Protection:
40ºC
Duty Cycle:
100% (40degree Room Temperature)
Weight:
Main Parts:53Kg Transformer Parts:50kg
Size:
Main Parts:675*325*655mm Transformer Part: 530*300*475mm
Supply Ability:
1000SETS /Month
Highlight:

50kW Induction Heater

,

22 Years Experience Induction Heating Equipment

,

18 Months Warranty High Frequency Induction Heating Machine

Product Description
HF-80AB High Frequency Induction Heating Machine for Hardening
30-80KHz High Frequency Induction Heating Machine HF-80AB
50kW High Frequency Induction Heating Machine with 22 Years Experience and 18 Months Warranty 0 50kW High Frequency Induction Heating Machine with 22 Years Experience and 18 Months Warranty 1 50kW High Frequency Induction Heating Machine with 22 Years Experience and 18 Months Warranty 2 50kW High Frequency Induction Heating Machine with 22 Years Experience and 18 Months Warranty 3
Key Features
  • Non-contact heating technology for efficient operation
  • Compact design with lightweight construction for easy operation
  • High frequency and rapid heating capability for quenching, hardening, and soldering applications
  • Precise temperature control with automation capabilities for consistent product quality
  • Safety features including isolation transformer with output voltage below 36V
  • Infineon IGBT module and third-generation inverting technologies for enhanced reliability
  • 100% duty cycle allows continuous operation at maximum power output
  • Energy efficient design saving 20-30% compared to SCR machines
  • Advanced protection system including overheat, overcurrent, and voltage monitoring
Technical Specifications
Type HF-80AB
Work power 380V*3phase 50-60HZ
Operating voltage range 340-430VAC
Output power 80KW
Input current 75A
Fluctuating frequency 30-80KHZ
Timing control 1-99S (Heat time, Retain time, Cool time)
Cooling water flow rate 0.08-0.16 Mpa 9L/Min
Water temperature protection 40ºC
Duty cycle 100% (40degree room temperature)
Weight Main parts: 53Kg, Transformer Parts: 50kg
Dimensions Main parts: 675*325*655mm, Transformer Part: 530*300*475mm
Applications
  • Heat treatment for various metals including shafts, gears, and pipes
  • Soldering applications for copper, brass, and stainless steel components
  • Annealing processes for stainless steel, copper, and aluminum materials
  • Hot forging operations for copper, brass, steel bars, and plates
  • Melting precious metals including gold, silver, and platinum
50kW High Frequency Induction Heating Machine with 22 Years Experience and 18 Months Warranty 4 50kW High Frequency Induction Heating Machine with 22 Years Experience and 18 Months Warranty 5 50kW High Frequency Induction Heating Machine with 22 Years Experience and 18 Months Warranty 6 50kW High Frequency Induction Heating Machine with 22 Years Experience and 18 Months Warranty 7
Product Advantages
  • Fast delivery with available stock (1-2 days shipping)
  • 22 years of manufacturing experience with CE certification
  • 20-30% energy savings compared to conventional SCR machines
  • Comprehensive warranty coverage (18 months from delivery or 12 months from receipt)
  • 24/7 customer support for immediate problem resolution
  • Free replacement of all parts for quality issues during warranty period
50kW High Frequency Induction Heating Machine with 22 Years Experience and 18 Months Warranty 8 50kW High Frequency Induction Heating Machine with 22 Years Experience and 18 Months Warranty 9 50kW High Frequency Induction Heating Machine with 22 Years Experience and 18 Months Warranty 10
