Hf-15kw IGBT High Quality High Frequency Induction Heating Machine for All Metal

Large Image : Hf-15kw IGBT High Quality High Frequency Induction Heating Machine for All Metal

Product Details:

Certification:	CE, ISO

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	500

Contact Now

Hf-15kw IGBT High Quality High Frequency Induction Heating Machine for All Metal

Description

Model NO.:	HF-15KW	Type:	Induction Heating Machine
Structure:	Vertical Type	Frequency:	30-80kHz
Power:	15kw	Input Voltage:	220V, 380V, 400V,415V, 440V, 480V 50-60Hz
Material:	Steel, Copper, Brass, Silver, Gold, Alum All Metal	Weight:	38kgs
Size:	620230630mm	Input Current:	13A Or 36A
Heating Way:	Auto/Manual	Cooling Way:	Water Cooled
Duty Cycle:	100% (40degree Room Temperature)	Water Flow Rate:	0.15 Mpa 7.6L/Min
Water Temp Protection:	40centidegree
Highlight:	15kw IGBT induction heating machine , high frequency metal induction heater , IGBT induction heater for all metal

HF-15KW IGBT High Quality High Frequency Induction Heating Machine for All Metal

Product Overview

Professional induction heating machine designed for various metal processing applications including heating, quenching, forging, melting, and soldering.

Key Advantages

Over 22 years of manufacturing experience ensuring stable performance
CE certified for quality assurance
Trusted by major companies including CHOW TAI FOOKS, Matsushita, Foxconn, Media, Gree, and ZHIGAO Air Conditioner
Versatile applications across multiple metal processing operations

Dual transformer configuration with switch control for improved efficiency
Each transformer features dual transformer ratios for flexible coil connections
100% duty cycle for continuous operation at maximum power
Lightweight and easy installation

Main Characteristics

Siemens IGBT module with third-generation inverting technology for higher reliability
Real-time display of heating power, current, and oscillating frequency
Timer model available for batch production with preset power and operating time
Selectable constant current or constant power operation modes
User-friendly installation suitable for non-professional operators

Digital Control Features

LCD Touch Screen front panel with digital display
PLC compatibility for automated control and remote operation
Digital PID temperature control with ±1°C accuracy
Five working modes: Manual, Timer, Temperature, Constant Temperature, and Section Heating
Nine programmable memory slots (P1-P9) for different workpiece configurations
Optional infrared thermometer available

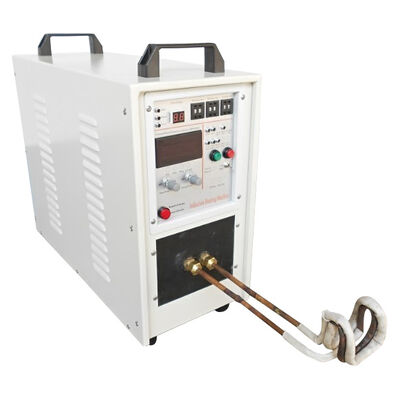

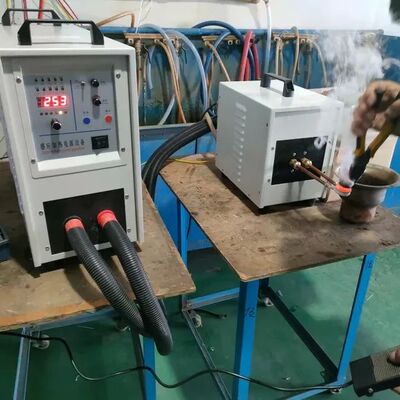

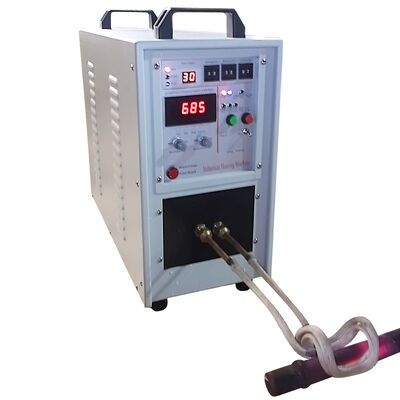

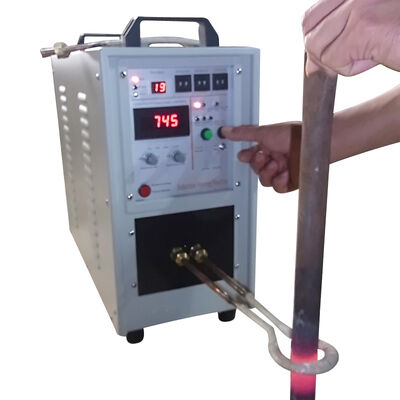

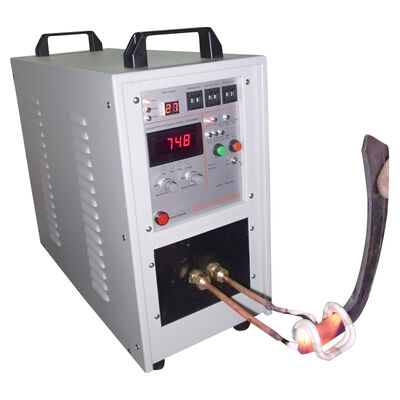

Product Images

Technical Specifications

Type	HF-15AB/15A	HF-15AB/15A	HF-25AB/25A	HF-40AB	HF-65AB	HF-80AB	HF-90AB	HF-100AB
Work Power	220v single phase 50-60hz	3*380v/415v/440v/480v 50-60hz	3*380v/415v/440v/480v 50-60hz	3*380v/415v/440v/480v 50-60hz	3*380v/415v/440v/480v 50-60hz	3*380v/415v/440v/480v 50-60hz	3*380v/415v/440v/480v 50-60hz	3*380v/415v/440v/480v 50-60hz
Operating Voltage Range	340-430V AC	340-430V AC	340-430V AC	340-430V AC	340-430V AC	340-430V AC	340-430V AC
Output Power	15KW	15KW	25KW	40KW	65KW	80KW	90KW	100KW
Input Current	36A	13A	26A	40A	60A	75A	90A	100A
Fluctuating Frequency	30-100khz	30-100khz	30-80khz	30-80khz	30-80khz	30-80khz	30-80khz	30-80khz
Cooling Water Flow Rate	0.15 Mpa 7.6L/Min	0.15 Mpa 7.6L/Min	0.15 Mpa 9L/Min	0.15 Mpa 10L/Min	0.15 Mpa 11L/Min	0.15 Mpa 11L/Min	0.15 Mpa 13L/Min	0.15 Mpa 15L/Min
Weight	35Kg	35Kg	Main: 42Kg, Transformer: 21kg	Main: 42Kg, Transformer: 32kg	Main: 45Kg, Transformer: 38kg	Main: 55Kg, Transformer: 42kg	Main: 58Kg, Transformer: 45kg	Main: 85Kg, Transformer: 78kg
