High Frequency Induction Smelting Equipment for 8kg Furnace Brass, Steel Iron, Cast Iron Bronze etc. Hf-25kw

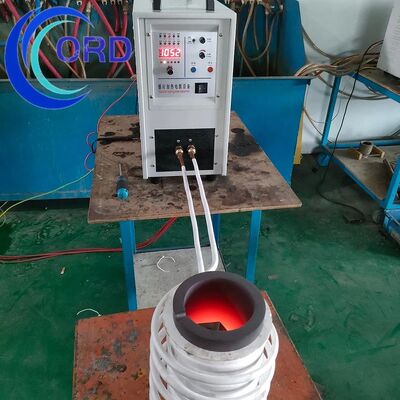

Large Image : High Frequency Induction Smelting Equipment for 8kg Furnace Brass, Steel Iron, Cast Iron Bronze etc. Hf-25kw

Product Details:

Certification:	CE, ISO

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	990

Contact Now

High Frequency Induction Smelting Equipment for 8kg Furnace Brass, Steel Iron, Cast Iron Bronze etc. Hf-25kw

Description

Model NO.:	HF-25KW	Type:	Induction Heating Machine
Structure:	Vertical Type	Power:	25kw
Frequency:	30-80kHz	Heating Time:	1-100.9s
Work Voltage:	380V, 400V, 415V, 440V, 480V	Water Temperature Protection:	40c
Cooling Type:	Water Cooling	Output Power:	25KW
Input Current:	28A	Flow Rate:	0.15 Mpa 18L/Min
Duty Cycle:	100% (40degree Room Temperature)	Weight:	Mainparts:38Kg Transformer: 25
Size:	Main Parts:600350600MM Transformer: 550300500MM
Highlight:	8kg high frequency induction smelting furnace , HF-25KW induction heater for brass , high frequency steel iron melting equipment

High Frequency Induction Smelting Equipment for 8kg Furnace

High frequency induction smelting equipment for 8KG furnace brass, steel iron, cast iron bronze, and other metals. HF-25KW model with advanced features for industrial applications.

Key Advantages

More than 21 years of experience, stable and good performance
CE certified
Cooperated with CHOW TAI FOOKS, Matsushita, Foxconn, Media, Gree and ZHIGAO Air conditioner
Suitable for a wide range of applications: heating, quenching, forging, melting, soldering and more
Two transformer ratios for better matching with different length induction coils
Siemens IGBT components
IXYS Bridge technology
DELIXI Switch components

Main Characteristics

Siemens IGBT module and third-generation inverting technologies for higher reliability and lower maintenance cost
100% duty cycle, allowing continuous working at maximum power output
Display of heating power, heating current and oscillating frequency
Easy installation, can be done by non-professional personnel
Lightweight design
Manual/auto mode operation with temperature or time-based control

Technical Specifications

Type	HF-25KW
Work Power	3*380v/415v/440v/480v 50-60hz
Operating Voltage Range	340-430V AC
Output Power	25KW
Input Current	28A
Fluctuating Frequency	30-80khz
Timing	1-100.9S
Cooling Water Flow Rate	0.15 Mpa 18L/Min
Water Temperature Protection Point	40°C
Duty Cycle	100% (40°C room temperature)
Weight	Main parts: 38Kg, Transformer: 25Kg
Size	Main Parts: 600350600MM, Transformer: 550300500MM

Pre-sale Service

Recommend the most suitable machine according to customer requirements
Inquiry and consulting support
Sample testing support
Factory viewing available

In-sale Service

Strict manufacturing according to relevant technical standards
Comprehensive run testing per equipment test regulations
Thorough quality checks before delivery
Guaranteed on-time delivery

After-sale Service

Warranty: 18 months from delivery date, 12 months from receiving date
Within warranty, all parts free for non-artificial faults and quality issues
For major quality problems outside warranty period, maintenance technicians provide visiting service at favorable prices
Lifetime cost price for materials and spare parts used in system operation and maintenance
Additional quality assurance and operation guarantees provided
