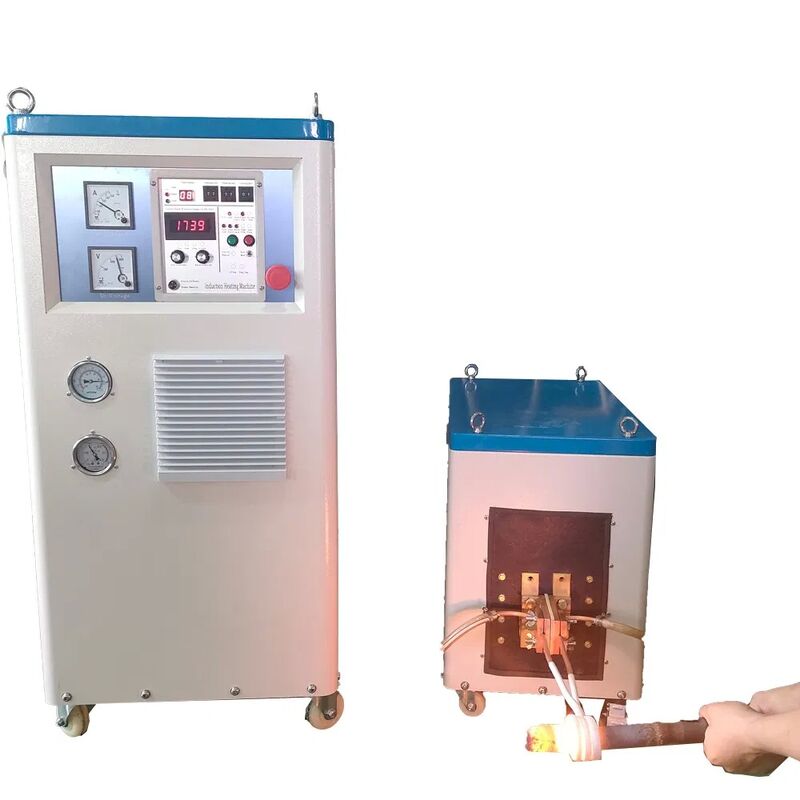

Induction Heating Machine (15KW, 25kw, 40KW, 80KW, 100KW, 120KW, 160KW, 200KW, 250KW)

MOQ:	1

Detail Information

Product Description

Detail Information

Model NO.:

SF-160KW

Application:

Heating, Quenching, Forging, Melting, Welding

Power:

160kw

Frequency:

20-50kHz

Cooling System:

Water Cooling System

Product Name:

Induction Heating Machine

Test Video:

Provided

Voltage:

340V-480V 3phase

Certifications:

CE, RoHS,SGS ISO

Transport Package:

Wooden Box

Specification:

CE, SGS, ISO

Trademark:

ORD

Origin:

China

HS Code:

8514400090

Production Capacity:

10, 000sets

Highlight:

15KW industrial induction heating machine

high power induction heating machine

250KW induction heating machine with warranty

Product Description

Induction Heating Machine:
Induction heating is a process which is used to bond, harden or soften metals or other conductive materials. For modern manufacturing processes, induction heating offers an attractive combination of speed, consistency, control and energy efficiency.
The basic principles of induction heating have been understood and applied to manufacturing since the 1920s. During World War II, the technology developed rapidly to meet urgent wartime requirements for a fast, reliable process to harden metal engine parts.
More recently, the focus on lean manufacturing techniques and emphasis on improved quality control have led to a rediscovery of induction technology, along with the development of precisely controlled, all solid state induction power supplies.

How induction heating works?
When an alternating electrical current is applied to the primary of a transformer, an alternating magnetic field is created. According to Faraday's Law, if the secondary of the transformer is located within the magnetic field, an electric current will be induced.
In a basic induction heating setup, a power supply sends an AC current through an inductor (often a copper coil), and the part to be heated (the workpiece) is placed inside the inductor. The inductor serves as the transformer primary and the part to be heated becomes a short circuit secondary. When a metal part is placed within the inductor and enters the magnetic field, circulating eddy currents are induced within the part.
Induction Heating Machine (15KW, 25kw, 40KW, 80KW, 100KW, 120KW, 160KW, 200KW, 250KW) 1

Advantage:
1 More than20 years experience, stable and goods performance
2 CE certificated
3 Copperated with CHOW TAI FOOKS, Matsushita, Foxconn, Media, Gree and ZHIGAO Air conditioner.
4 Suitable for a large range, heating, quenching, forging, melting, solding and so on.
5 Two transformer ratios, can match better different length induction coil
Induction Heating Machine (15KW, 25kw, 40KW, 80KW, 100KW, 120KW, 160KW, 200KW, 250KW) 3

Main characteristics:
1 Siemens IGBT module and Inverting technologies of third generation been used; Higher reliability and lower maintenance cost.
2 100% Duty cycle, continuous working is allowed at maximum power output.
3 Display of heating power and heating current and oscillating frequency;
4 Simple to install, Installation can be done by unprofessional person very easily;
5 Light weight
6 Advantages of the model with timer: The power and the operating time of the heating period and the retain period can be preset respectively, to realize a simple heating curve, this model is suggested to use for batch production to improve the repeatability;
Induction Heating Machine (15KW, 25kw, 40KW, 80KW, 100KW, 120KW, 160KW, 200KW, 250KW) 4

Type	SF-160AB
Work Power	3*380v/415v/440v/480v 50-60hz
The range of operating voltage	340-430V AC
Output power	160KW
Input current	240A
Fluctuating frequency	20-50khz
Timing (Heat time,Retain time,Cool time)	1-99S
The flow rate of cooling water	0.15 Mpa 25L/Min
Water temperature protection point	40centidegree
Duty cycle	100% (40degree room temperature)
Weight	Mainparts:198Kg Transformer:155kg
Size	Main Parts:850600950MM Transformer: 650450600MM

Support and Services:
We provide technical support and services for our Induction Melting Furnace product. Our team of expert engineers and technicians are available to provide advice and assistance to ensure that you get the most out of your furnace. Our services include:

Installation and commissioning
Preventative maintenance and repairs
Troubleshooting and diagnosis
Upgrades and retrofits
Spare parts and consumables
Training and support

Our services are delivered to the highest quality standards and tailored to meet your specific requirements. We are committed to providing outstanding customer service and strive to exceed your expectations.
