480V Hf-25kw High Frequency Induction Heater, Induction Heating Machine
  • name
  • name
  • name
  • name
  • name

480V Hf-25kw High Frequency Induction Heater, Induction Heating Machine

MOQ: 1
Price: 1200
Detail Information
Product Description
Detail Information
Certification:
CE, ISO, RoHS
Model NO.:
HF-25KW
Type:
Induction Heating Machine
Structure:
Vertical Type
Brand:
Ouruida
Main Use:
Heating, Quenching, Forging, Melting, Welding
Power:
25kw
Frequency:
30-80kHz
Work Voltage:
480V * 3phase 50-60Hz
Water Temperature Protection Point:
40 Degree
Input Current:
28A
Package Detail:
Export Wooden Box
Induction Coil:
According To Customer Make
Application:
Heater, Cooler, Vaporizer, Condenser
Transport Package:
Wooden Box
Specification:
CE, ISO
Trademark:
ORD
Origin:
China
HS Code:
8514400090
Production Capacity:
10, 000sets
Highlight:

480V high frequency induction heater

,

25kw induction heating machine

,

industrial induction heater with warranty

Product Description

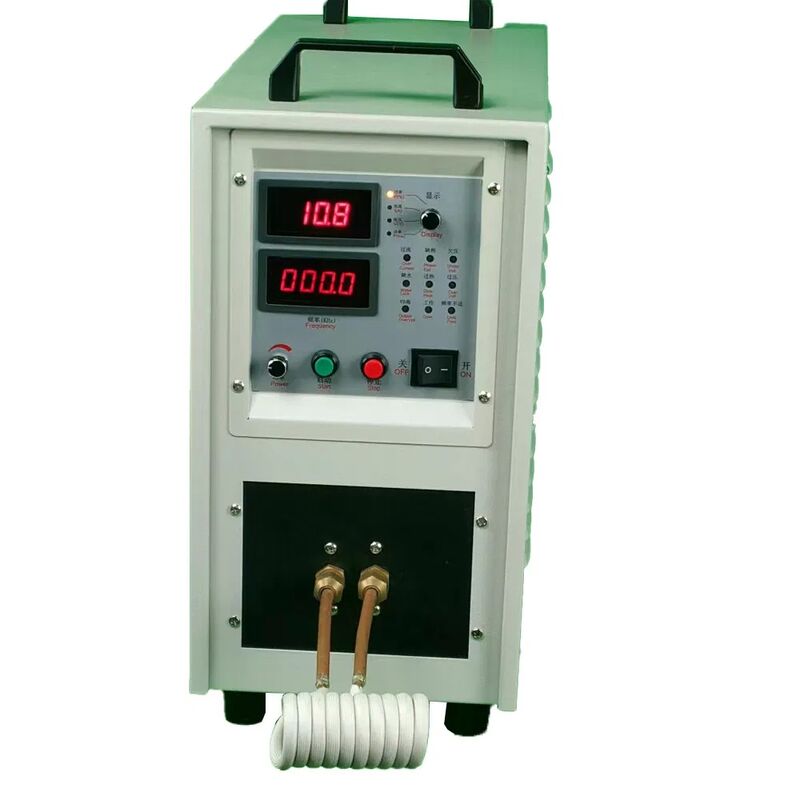

High Frequency Induction heating equipment HF-25KW


480V Hf-25kw High Frequency Induction Heater, Induction Heating Machine 0Main characteristics:

1 Infineon module and Inverting technologies of third generation been used; Higher reliability and lower maintenance cost.
2 100% Duty cycle, continuous working is allowed at maximum power output.
3 Simple to install, Installation can be done by unprofessional person very easily;
5 100% Duty cycle, continuous working is allowed at maximum power output.
6 High Efficiency Up to 98%. Diode Rectification Technology Make sure high power factory-0.98.
7 Energy Saving Up to 20-30% compare with SCR machine.
8 Soft Switch Technology And prefect Protection system( Over Heat, Over Current, Under Voltage, Over Voltage, Phase Fail, Lack Water) enhance Good Reliability.
10 Display of heating power,Heating Current, Voltage, oscillating frequency.

480V Hf-25kw High Frequency Induction Heater, Induction Heating Machine 1

 Type HF-25KW
 Work Power  3*380v/415v/440v/480v  50-60hz
 The range of operating voltage  340-430V AC
 Output power  25KW
 Input current  28A
 Fluctuating frequency  30-80khz
 Timing (Heat time,Retain time,Cool time)  1-99S
 The flow rate of cooling water  0.15 Mpa 18L/Min
 Water temperature protection point 40 degree
 Duty cycle  100%
 Weight  Mainparts:38Kg
 Size Main Parts:600*350*600MM


Application:
480V Hf-25kw High Frequency Induction Heater, Induction Heating Machine 2480V Hf-25kw High Frequency Induction Heater, Induction Heating Machine 3480V Hf-25kw High Frequency Induction Heater, Induction Heating Machine 4

 Advantage:
1 More than 23years experience, stable and goods performance
2 CE certificated
3 Copperated with CHOW TAI FOOKS, Matsushita, Foxconn, Media, Gree and ZHIGAO Air conditioner.
4 Suitable for a large range, heating, quenching, forging, melting, solding and so on.
5 Two transformer ratios, can match better different length induction coil
6 Siemens IGBT
7 IXYS Bridge
8 DELIXI Switch

Pre-sale service:
1. recommend the most suitable machine for customers, according to their requirements.
2. Inquiry and consulting support.
3. Sample testing support.
4. View our Factory.

In-sale service:
1. Strictly manufacture the machine, according to relevant technical standards.
2. Take run test, according to relevant equipment test run regulations.
3. Strictly check up the machine, before delivery
4. Delivery on time.

After-sale service:
1. Warranty time: Within 18 months from the date of delivering, 12months from date of receiving.
2. Within warranty all parts are free for customer, any fault caused by non-artificial reason, any quality problems such as design, manufacture, or procedure occurs, We shall provide replacement parts after detecting the faults.
3. If any big quality problems occurs out of the guarantee period, we will send maintenance
 technician to provide visiting service after checking with the customer and charge for a favorable price.
5. We will provide a lifetime cost price to the buyer with the materials and spare parts used in system operation, equipment
maintenance.
6. The above mentioned are only basic aftersale service requirements,we will make more promises related to quality assurance
 and operation guarantee.

480V Hf-25kw High Frequency Induction Heater, Induction Heating Machine 5480V Hf-25kw High Frequency Induction Heater, Induction Heating Machine 6480V Hf-25kw High Frequency Induction Heater, Induction Heating Machine 7480V Hf-25kw High Frequency Induction Heater, Induction Heating Machine 8480V Hf-25kw High Frequency Induction Heater, Induction Heating Machine 9
