Name: IGBT portable Hf Induction Heating Equipment Hf-40kw
Brand: OURUIDA CO.,LTD
SKU: HF-40KW
Price: 1800 USD
Availability: InStock

Brand Name:	OURUIDA
Model Number:	HF-40KW
MOQ:	1
Price:	1800

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE/ ROHS /SGS

Model NO.:

HF-40KW

Structure:

Vertical Type

Brand:

Ord

Power:

40kw

Frequency:

30-80kHz

Working Application:

Heating, Forging, Quenching, Melting, Annealing

Length Of Cable:

5m+2m Flexible Connection

Work Power:

3*380V/415V/440V/480V 50-60Hz

The Range Of Operating Voltage:

340-430V AC

Input Current:

40A

Principle:

Induction Heating

Core:

IGBT

Style:

Induction Heating Machine

Transport Package:

Wooden Box

Specification:

CE, SGS, ISO

Trademark:

ORD

Origin:

China

HS Code:

8514400090

Production Capacity:

10, 000sets

Highlight:

portable IGBT induction heater

HF-40KW induction heating equipment

high frequency induction heater with warranty

Product Description

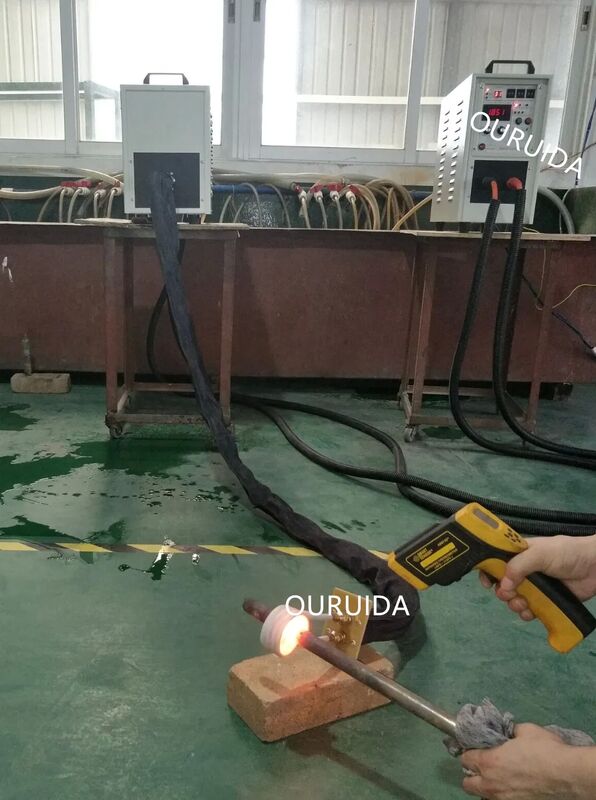

IGBT Protable High Frequency Induction Heating equipment HF-40KW withÂ 2m Â flexible connexion and 5m cable

Advantage:

More than26 years experience,stable and goods performance
CE certificated
Copperated with CHOW TAI FOOKS, Matsushita,Foxconn, Media, Gree and ZHIGAO Air conditioner.
Suitable for a large range, heating, quenching, forging, melting, solding and so on.
2 Transformer ratios more options connect induction coil
Coaxial Connection Flexible, can handle the flexible to work the workpiece that normal coil can not get it.

Main characteristics:

IGBT module and Inverting technologies of third generation been used; Higher reliability and lower maintenance cost.
100% Duty cycle, continuous working is allowed at maximum power output.
Display of heating power and heating current and oscillating frequency;
Simple to install, Installation can be done by unprofessional person very easily;
Light weight
Advantages of the model with timer: The power and the operating time of the heating period and the retain period can be preset respectively, to realize a simple heating curve, this model is suggested to use for batch production to improve the repeatability;

Packing Photos:

Â Type	HF-40KW
Â Work Power	Â 3*380v/415v/440v/480vÂ 50-60hz
Â The range of operating voltage	Â 340-430V AC
Â Output power	Â 40KW
Â Input current	Â 40A
Â Fluctuating frequency	Â 30-80khz
Â Timing (Heat time,Retain time,Cool time)	Â 1-99S
Â The flow rate of cooling water	Â 0.15 Mpa 9L/Min
Â Water temperature protection point	Â 40centidegree
Â Duty cycle	Â 100% (40degree room temperature)
Â Weight	Â Mainparts:32Kg+28KG
Â Size	Main Parts:560230480mm Transfromer Part: 460265440MM Â
