High Frequency Induction Heater Hf-25kw
  • name
  • name
  • name
  • name
  • name

High Frequency Induction Heater Hf-25kw

MOQ: 1
Price: 1400
Detail Information
Product Description
Detail Information
Model NO.:
HF-25KW
Power:
25kw
Frequency:
30-80kHz
Voltage:
380V,415V,440V,480V*3phase 50-60Hz
Type:
Infineon
Input Current:
25A
Application:
Welding, Forging, Quenching, Melting, Solder
Transport Package:
Wooden Box
Specification:
CE, SGS, ISO
Trademark:
ORD
Origin:
China
HS Code:
8514400090
Production Capacity:
10, 000sets
Highlight:

25kw high frequency induction heater

,

industrial induction heating equipment

,

HF-25kw induction heater with warranty

Product Description

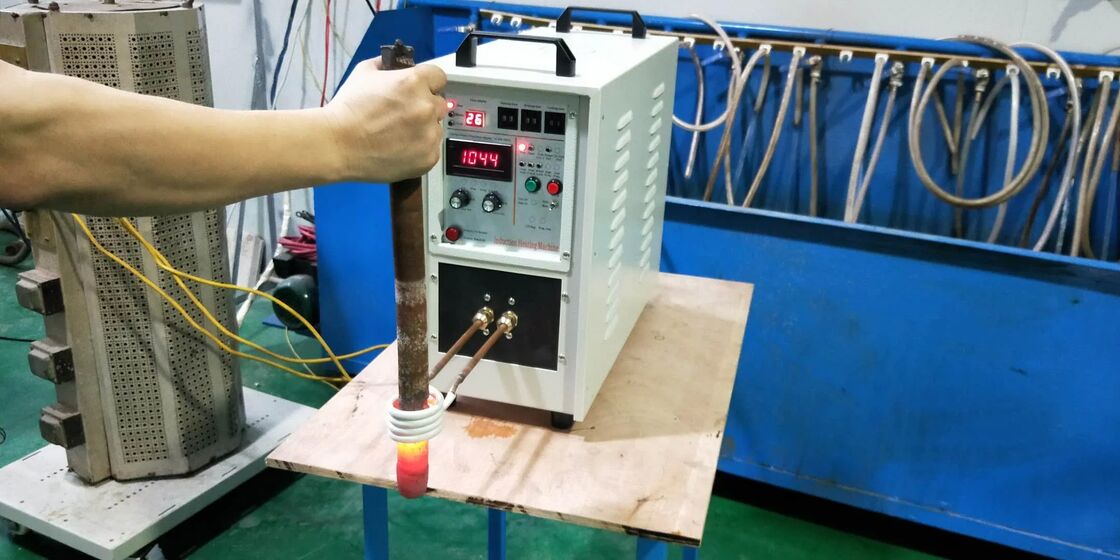

HF-25KW High Frequency Induction Heating Machine:
High Frequency Induction Heater Hf-25kw 0High Frequency Induction Heater Hf-25kw 1
Advantage:
1 Siemens IGBT
2 DELIXI Air Switch
3 Phase Bridge ( Germany IXYS)
4 Filter Capacitor (Janpan chemi-con)
5 All screws are Stainless Steel
6 More than 22 years experience, rich experience, stable performance, good quality.
7 Copperated with CHOW TAI FOOKS, Matsushita, Foxconn, Media, Gree and ZHIGAO Air conditioner
8 Suitable for a large range, heating, quenching, forging, melting, solding and so on.

Main characteristics:
1 Siemens IGBT module and Inverting technologies of third generation been used; Higher reliability and lower maintenance cost.
2 100% Duty cycle, continuous working is allowed at maximum power output.
3Display of heating power and heating current and oscillating frequency;
4 Simple to install, Installation can be done by unprofessional person very easily;
5 Light weight
7 Advantages of the model with timer: The power and the operating time of the heating period and the retain period can be preset respectively, to realize a simple heating curve, this model is suggested to use for batch production to improve the repeatability;
 Applications:
Drill tip heat shaping
 Heat treatment
 Quenching
 Forging
 Melting
Soldering and brazing
Welding
High Frequency Induction Heater Hf-25kw 2High Frequency Induction Heater Hf-25kw 3High Frequency Induction Heater Hf-25kw 4High Frequency Induction Heater Hf-25kw 5High Frequency Induction Heater Hf-25kw 6
 Type HF-25KW
 Work Power  380v,415v,440v,480v *3phase  50-60hz
 The range of operating voltage  340-30 AC
 Output power  15KW
 Input current  36A
 Fluctuating frequency  30-80khz
 Timing (Heat time,Retain time,Cool time)  1-99S
 The flow rate of cooling water  0.15 Mpa 7.6L/Min
 Water temperature protection point  40centidegree
 Duty cycle  100% (40degree room temperature)
 Weight 48Kg
 Size 640*280*550mm

High Frequency Induction Heater Hf-25kw 7High Frequency Induction Heater Hf-25kw 8
Pre-sale service:
1. recommend the most suitable machine for customers, according to their requirements.
2. Inquiry and consulting support.
3. Sample testing support.
4. View our Factory.

In-sale service:
1. Strictly manufacture the machine, according to relevant technical standards.
2. Take run test, according to relevant equipment test run regulations.
3. Strictly check up the machine, before delivery
4. Delivery on time.

After-sale service:
1. Warranty time: Within 18 months from the date of delivering, 12months from date of receiving.
2. Within warranty all parts are free for customer, any fault caused by non-artificial reason, any quality problems such as design, manufacture, or procedure occurs, We shall provide replacement
parts after detecting the faults.
3. If any big quality problems occurs out of the guarantee period, we will send maintenance technician to provide visiting
service after checking with the customer and charge for a favorable price.
5. We will provide a lifetime cost price to the buyer with the materials and spare parts used in system operation, equipment
maintain!
6. The above mentioned are only basic aftersale service requirements,we will make more promises related to quality assurance
and operation guarantee.
