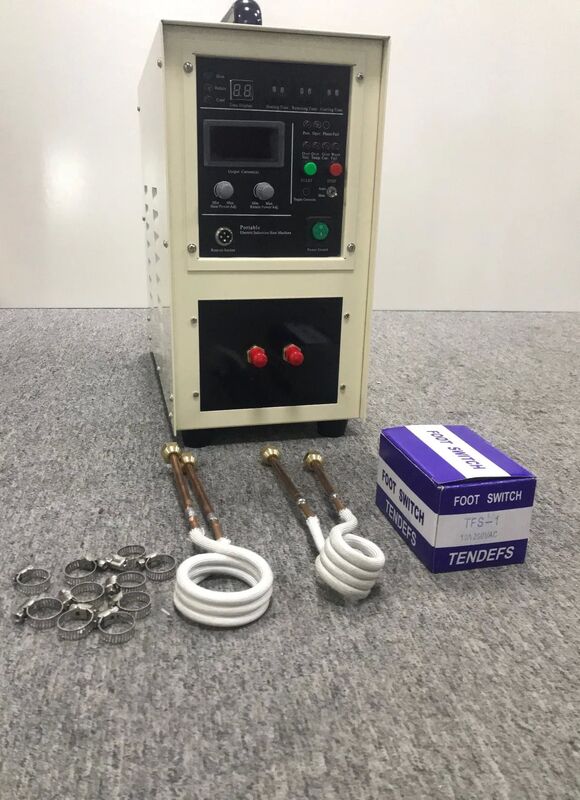

Hf-15kw High Frequency Induction Heating Equipment
  • name
  • name
  • name
  • name
  • name

Hf-15kw High Frequency Induction Heating Equipment

Brand Name: OURUIDA
Model Number: HF-15A
MOQ: 1
Price: 920
Packaging Details: PLY WOODEN PAKCAGE
Payment Terms: L/C,D/A,D/P,T/T
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
CE/ ROHS/SGS
Model NO.:
HF-15KW
Power:
15kw
Frequency:
30-100kHz
Voltage:
220V*Simple Phase
Type:
Mosfet
Input Current:
36A
Transport Package:
Wooden Box
Specification:
CE, SGS, ISO
Trademark:
ORD
Origin:
China
HS Code:
8514400090
Production Capacity:
10, 000sets
Supply Ability:
10000SETS/MONTH
Highlight:

15kw induction heating equipment

,

high frequency induction heater

,

industrial induction heating machine

Product Description

HF-15KW High Frequency Induction Heating Machine:

Hf-15kw High Frequency Induction Heating Equipment Hf-15kw High Frequency Induction Heating Equipment Hf-15kw High Frequency Induction Heating Equipment Hf-15kw High Frequency Induction Heating Equipment

Advantage:

  1. Mosfet Type, high Frequency
  2. DELIXI Air Switch
  3. Phase Bridge ( Germany IXYS)
  4. Filter Capacitor (Janpan chemi-con)
  5. All screws are Stainless Steel
  6. More than 22 year experience, rich experience, stable performance, good quality.
  7. Copperated with CHOW TAI FOOKS, Matsushita, Foxconn, Media, Gree and ZHIGAO Air conditioner
  8. Suitable for a large range, heating, quenching, forging, melting, solding and so on.

Main characteristics:

  1. Mosfet Type, high Frequency, Higher reliability and lower maintenance cost.
  2. 100% Duty cycle, continuous working is allowed at maximum power output.
  3. Display of heating power and heating current and oscillating frequency;
  4. Simple to install, Installation can be done by unprofessional person very easily;
  5. Light weight
  6. Advantages of the model with timer: The power and the operating time of the heating period and the retain period can be preset respectively, to realize a simple heating curve, this model is suggested to use for batch production to improve the repeatability;

Applications:

  • Drill tip heat shaping
  • Heat treatment
  • Quenching
  • Forging
  • Melting
  • Soldering and brazing
  • Welding
Hf-15kw High Frequency Induction Heating Equipment Hf-15kw High Frequency Induction Heating Equipment Hf-15kw High Frequency Induction Heating Equipment Hf-15kw High Frequency Induction Heating Equipment
Type HF-15A
Work Power single phase 220v 50-60hz
The range of operating voltage 180-250V AC
Output power 15KW
Input current 36A
Fluctuating frequency 30-100khz
Timing (Heat time,Retain time,Cool time) 1-99S
The flow rate of cooling water 0.15 Mpa 7.6L/Min
Water temperature protection point 40centidegree
Duty cycle 100% (40degree room temperature)
Weight Mainparts:35Kg
Size Main Parts:640*280*550mm
Hf-15kw High Frequency Induction Heating Equipment Hf-15kw High Frequency Induction Heating Equipment
